CS-107

CS-107 | CS-107 PLUS balances compact design, stylish aesthetics, and essential features for small to mid-range gaming or workstation builds.

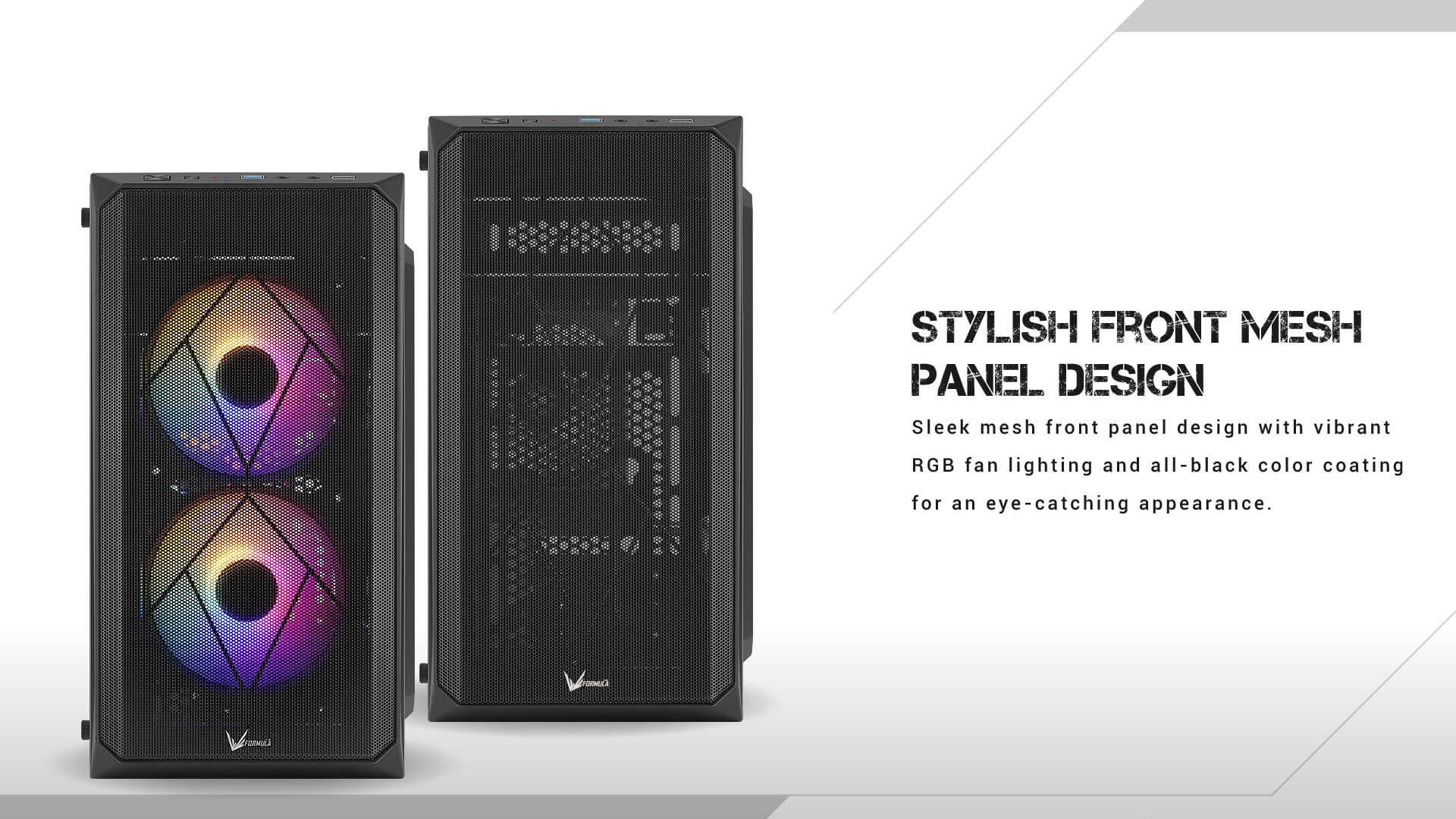

  • Stylish Front Mesh Panel Design
  • Pre-Installed RGB Fans for Cooling and Aesthetics

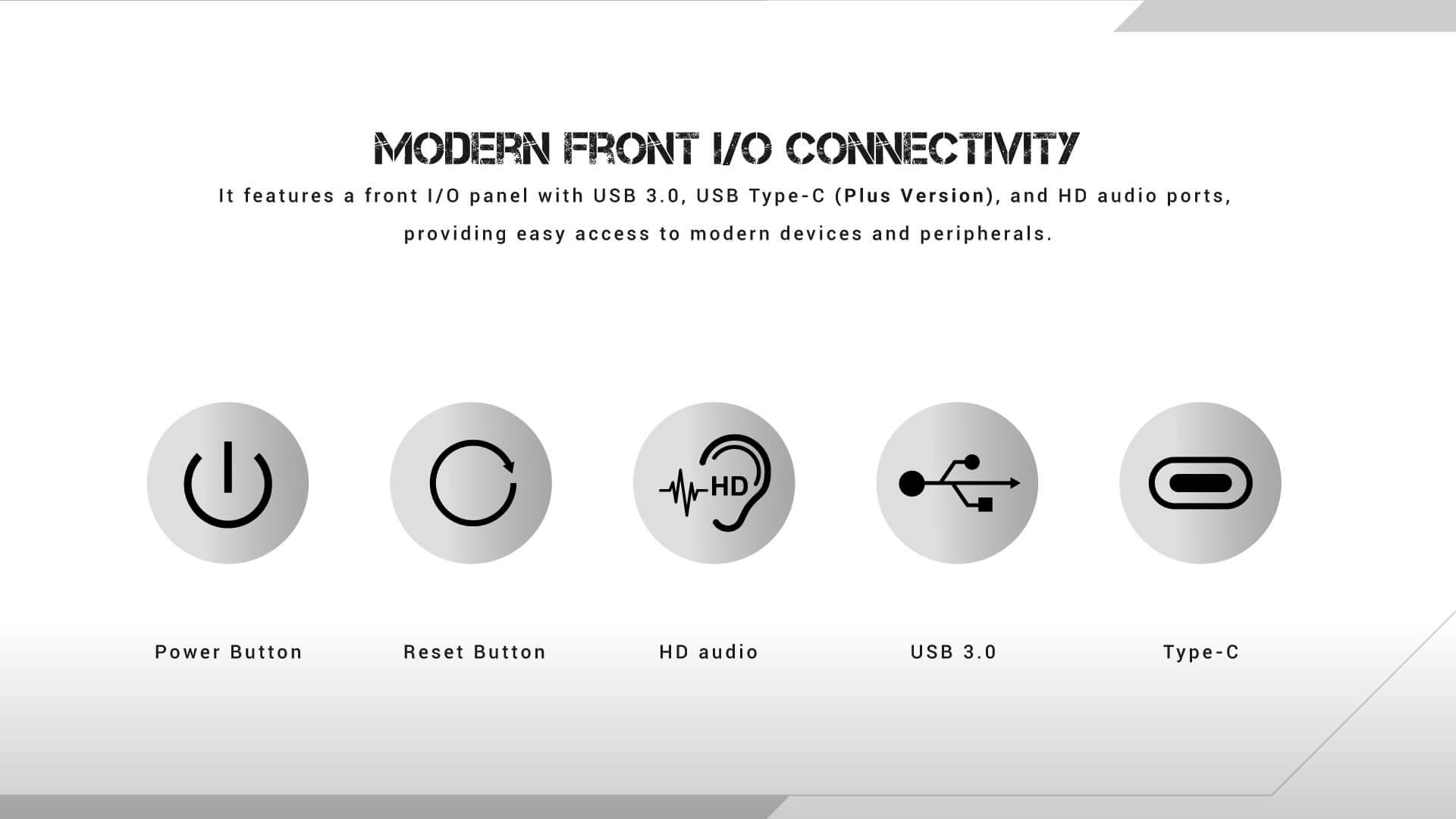

  • Modern Front I/O Connectivity

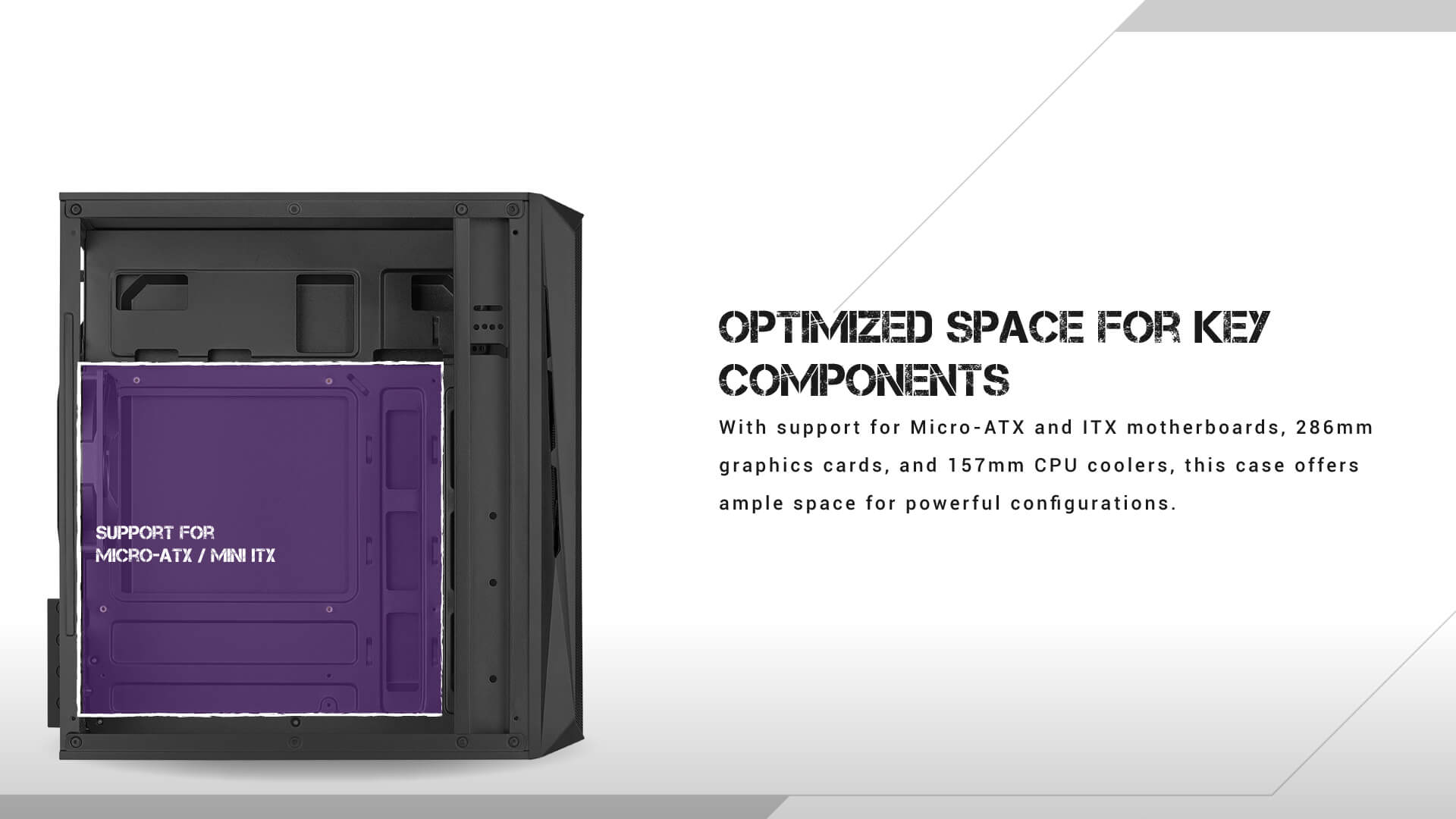

  • Optimized Space for Key Components

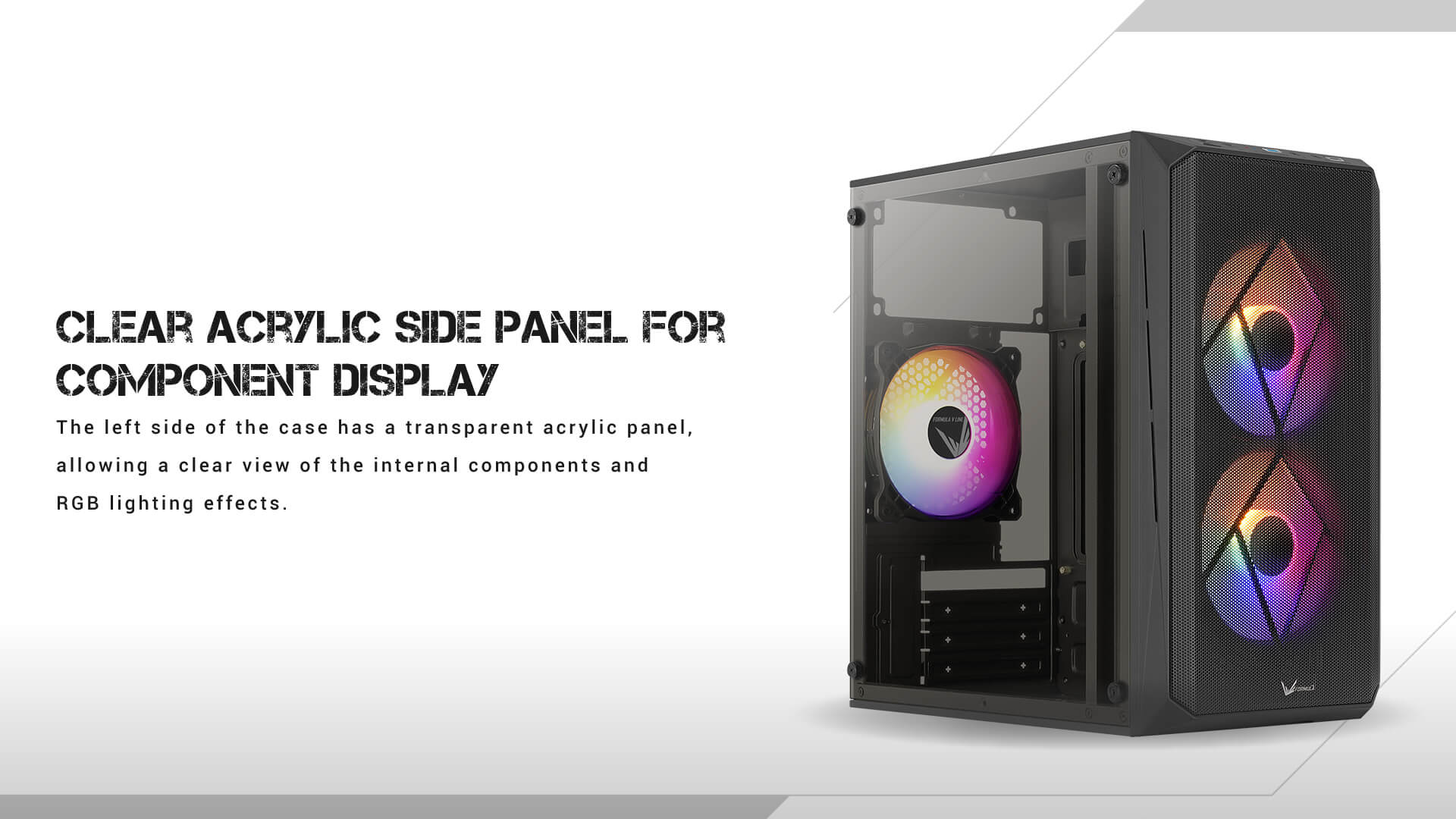

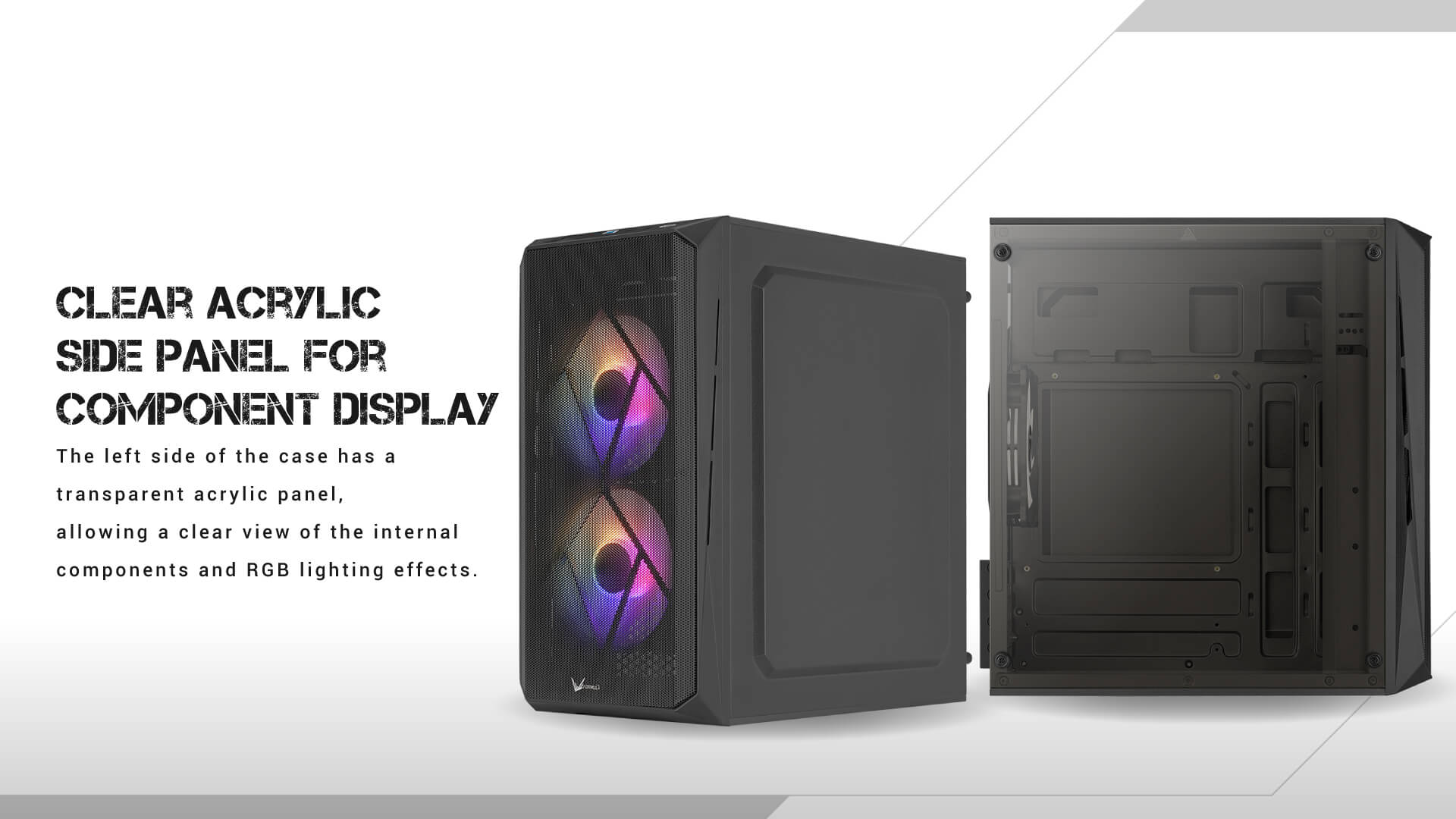

  • Clear Acrylic Side Panel for Component Display
section-0 section-1 section-2 section-3 section-4

Specifications

    • Model CS-107 | CS-107 PLUS
      Case Type Mini Tower
      Color Black
      Body Material SPCC
      Steel Thickness 0.45mm
      Motherboards micro ATX / mini-ITX
      Case Dimensions 197x 353 x 340mm
      3.5” Drive Bays 1
      2.5” Drive Bays 2
    • Expansion Slots 4
      GPU Clearance Supports GPU up to 286mm
      CPU Cooler Clearance Supports CPU cooler up to 157mm
      Air Cooling (CS-107 Version) Rear: 1 x 120mm (Pre-installed 1 x 12cm BK Fan)
      Air Cooling (CS-107 Version) Front: 2 x 120mm (Optional)
      Air Cooling (CS-107 PLUS Version) Rear: 1 x 120mm (Pre-installed 1 x COSMIC 12BK FR FAN)
      Air Cooling (CS-107 PLUS Version) Front: 2 x 120mm (Pre-installed 2 x COSMIC 12BK FR FAN)
      Liquid Cooling Front: 120/240 mm Radiator (Optional) (Radiator length <296mm)
      I/O Ports (CS-107 Version) 1 x USB3.0 | 1 x USB2.0 | HD audio
      I/O Ports (CS-107 PLUS Version) 1 x Type C | 1 x USB3.1 | 1 x USB2.0 | HD audio
      Power Supply ATX PSU
