TIMBERLINE T1

The TimberLine T1 features a tempered glass left panel and a unique wooden and plastic front panel design with excellent cooling options, including support for multiple fans and 240mm liquid coolers. It offers spacious compatibility for high-end components like ATX motherboards and large graphics cards, along with modern front I/O connectivity featuring USB Type-C. The build quality is highlighted by tempered glass panels, providing both durability and a clear view of your system.

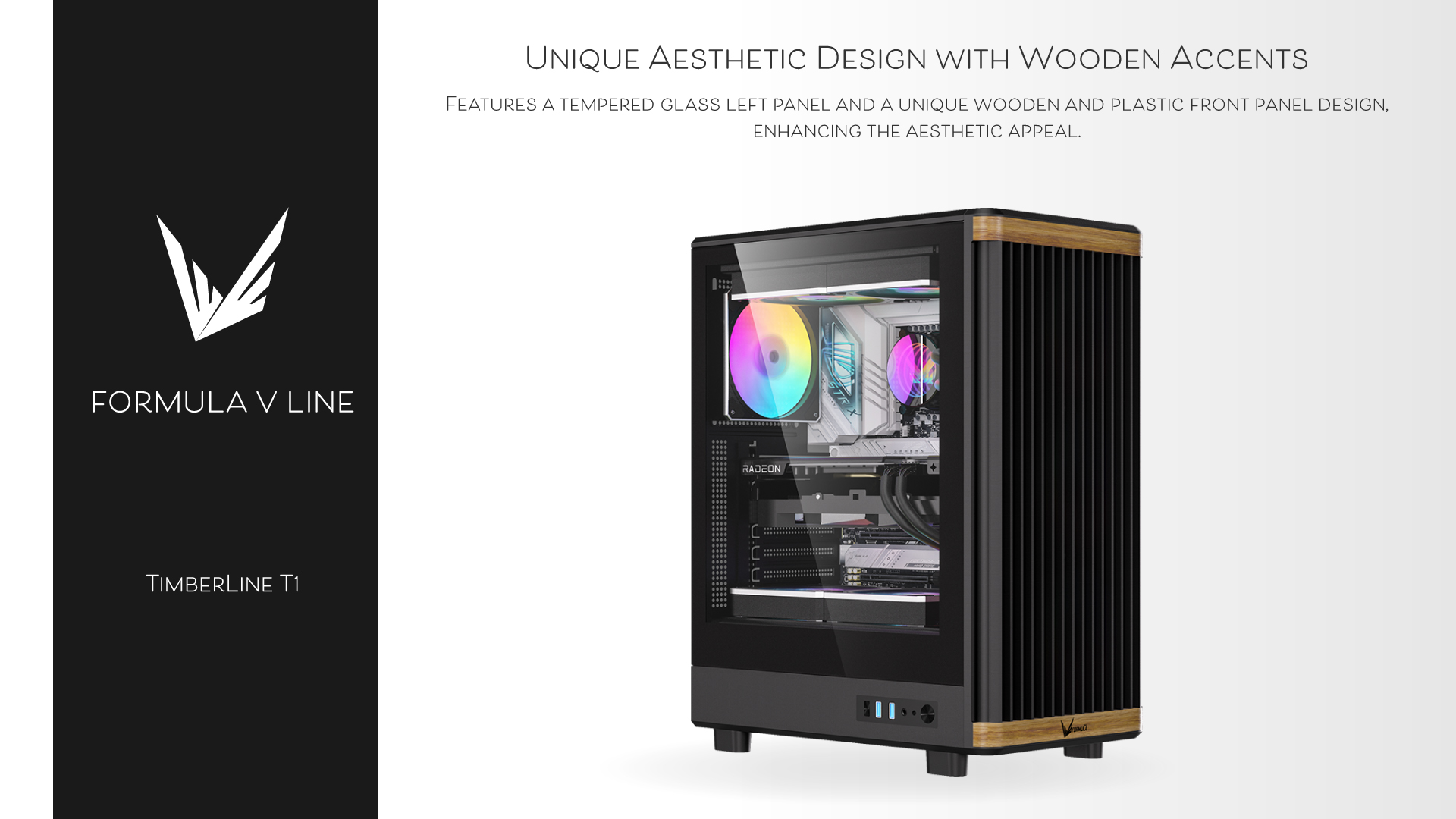

Unique Aesthetic Design with Wooden Accents

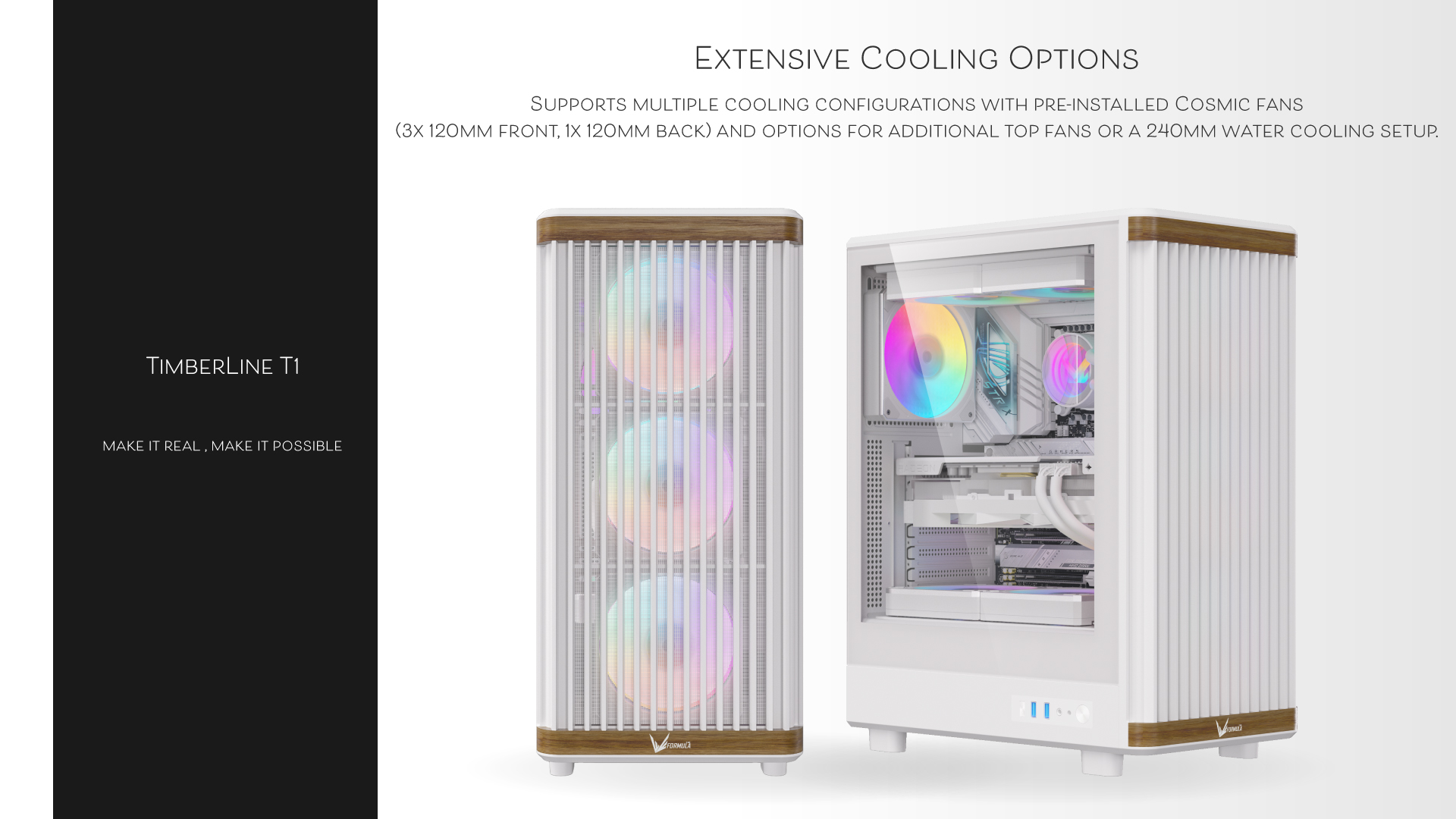

Extensive Cooling Options, including four Cosmic 12cm FRGB fans

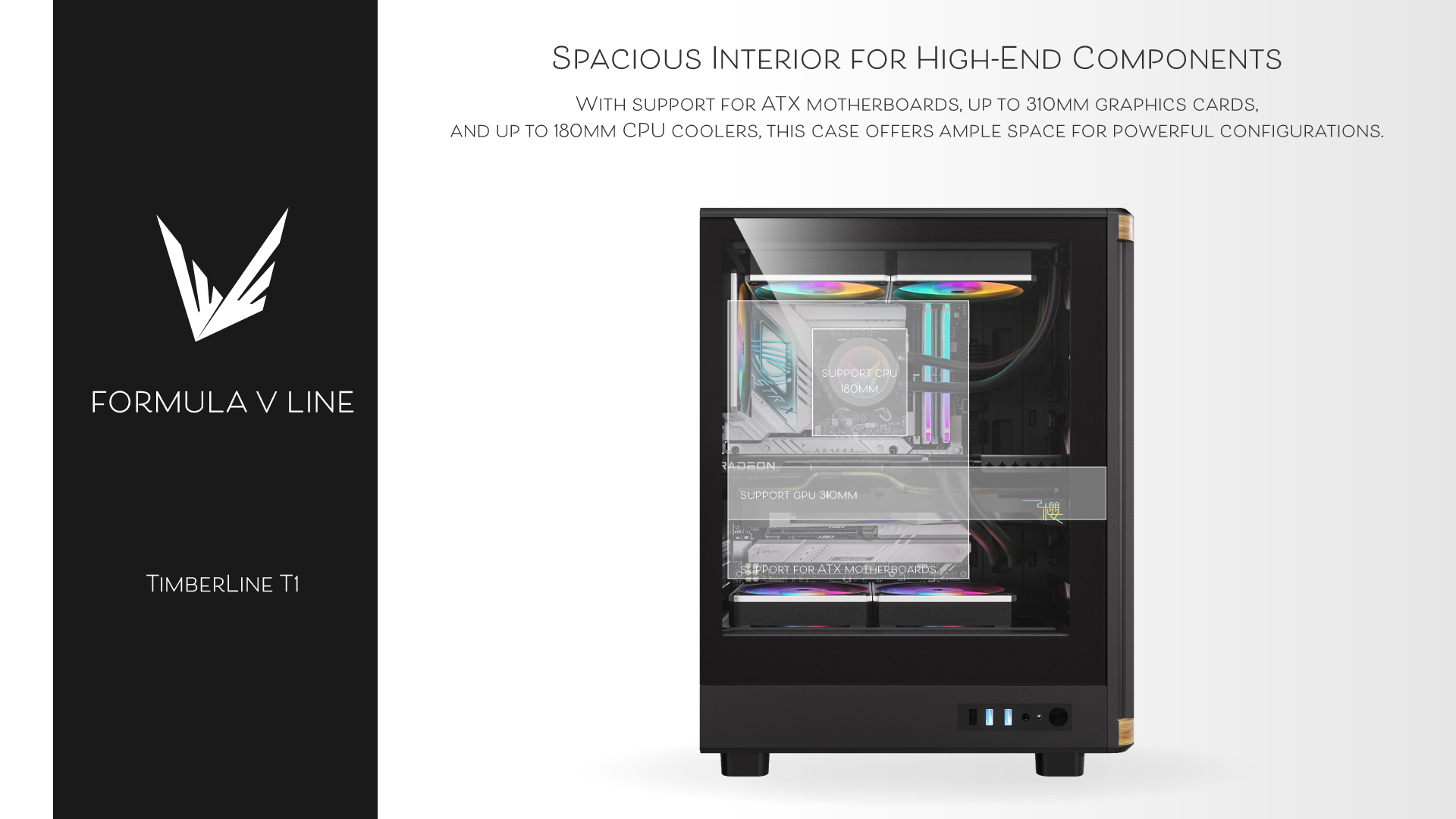

Spacious Interior for High-End Components

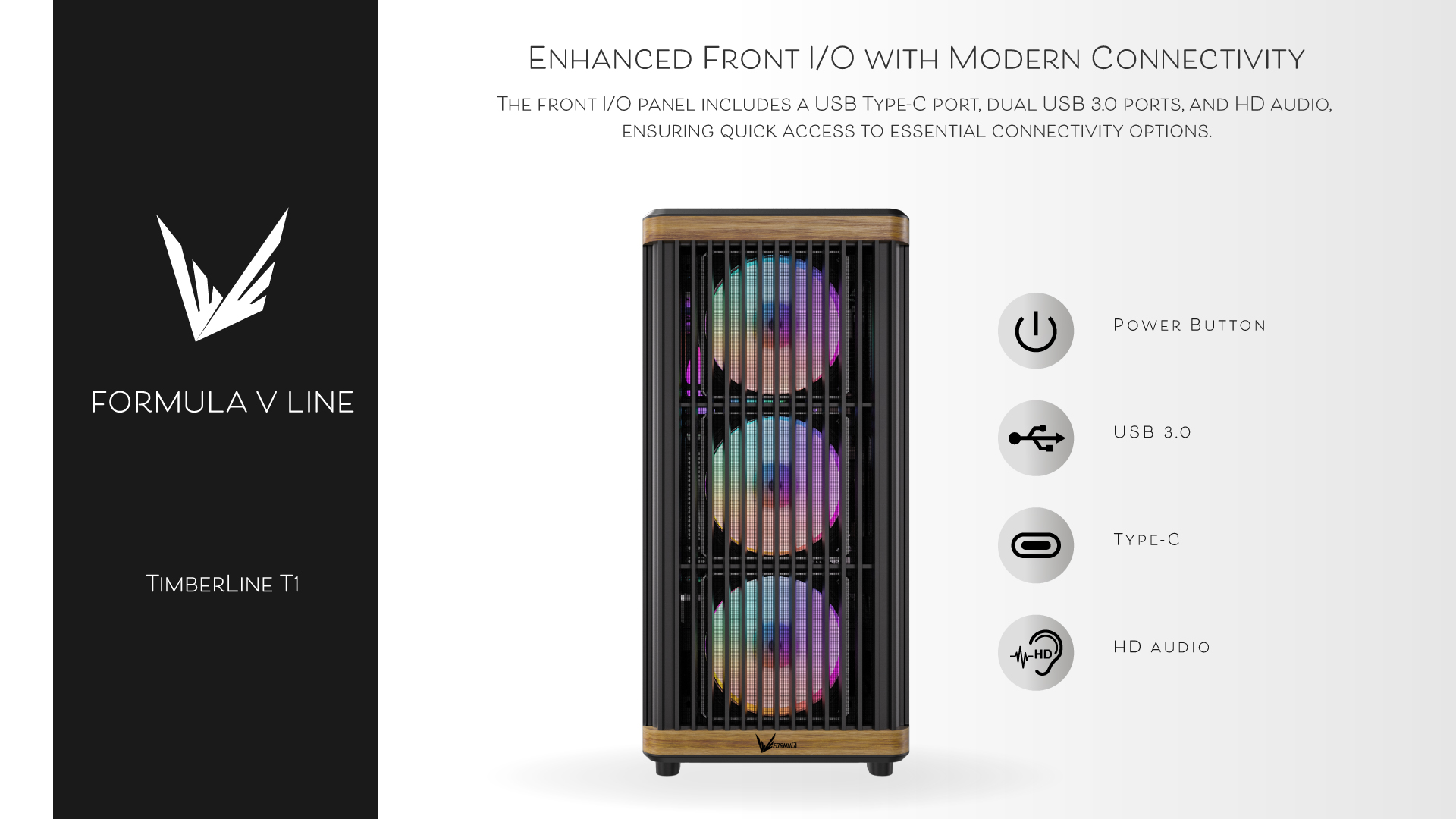

Enhanced Front I/O with Modern Connectivity

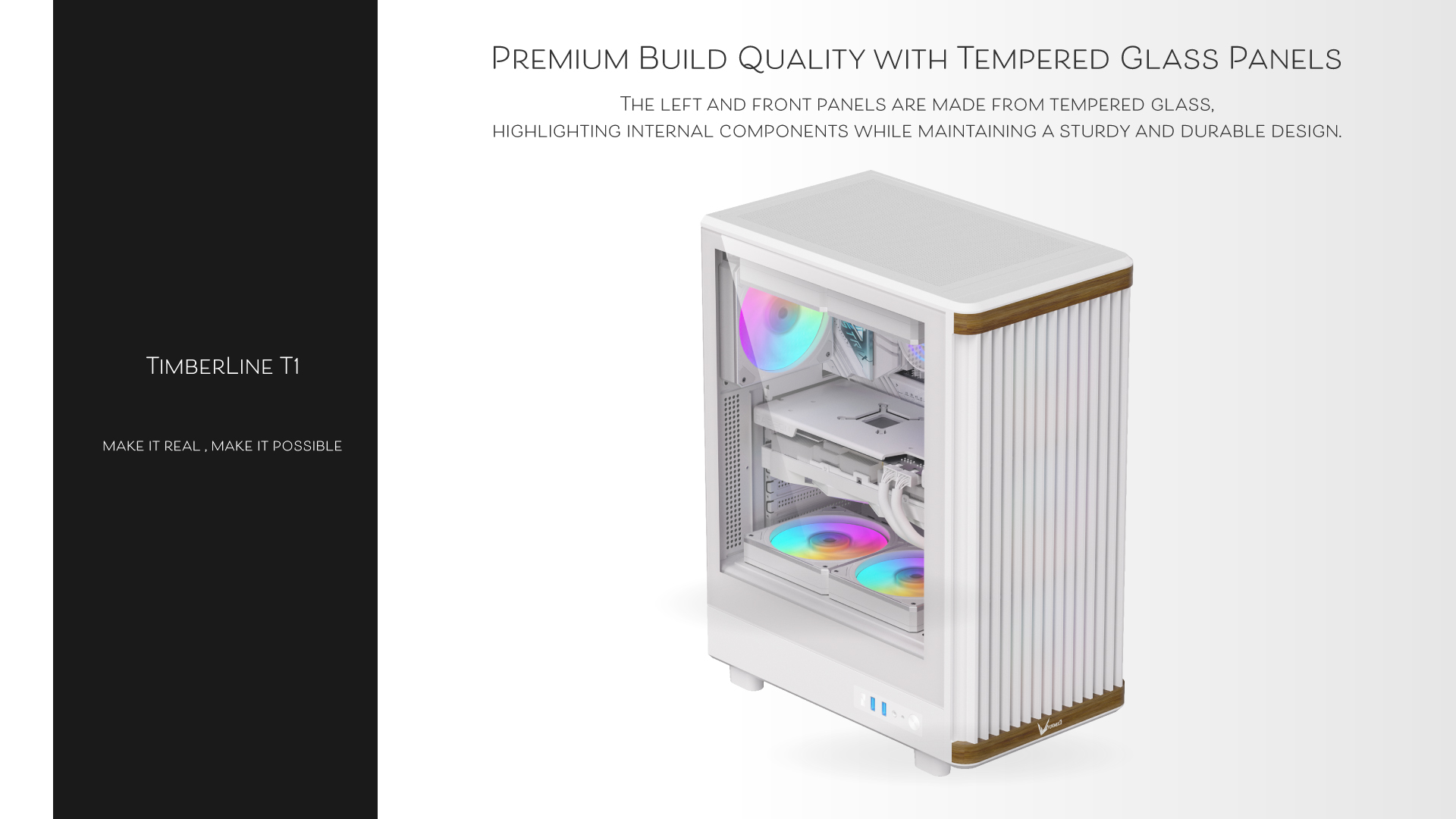

Premium Build Quality with Tempered Glass Panels

The cooling and hardware layout shown in the product photos is for reference only.
Please check the website’s product specifications for the actual configuration.

Black
White
section-0 section-1 section-2 section-3 section-4

Specifications

    • Model TIMBERLINE T1
      Case Type Mid Tower
      Color Black | White
      Front Materia ABS + woodenl
      Steel Thickness 0.5mm
      Motherboards ATX / micro ATX / mini-ITX
      Case Dimensions 355 x 218 x 465mm
      3.5” / 2.5”Drive Bays 1 / 1
      Expansion Slots 7
      GPU Clearance Supports GPU up to 305mm
      CPU Cooler Clearance Supports CPU cooler up to 180mm
      I/O Ports Type C x 1, USB3.0 x 1 , HD AUDIO
      Liquid Cooling Support 240mm Max.
      Air Cooling Front: 3 x 120mm Fans Max.
      Top: 2 x 120mm Fans Max.
      Rear: 1 x 120mm Fan Max.
      Bottom: 2 x 120mm Fans Max.
      Power Box ATX PSU (optional)
