TIMBERLINE T0

The TimberLine T0 combines a stylish wood-accented design with excellent cooling options, including support for multiple fans and 360mm liquid coolers. It offers spacious compatibility for high-end components like ATX motherboards and large graphics cards, along with modern front I/O connectivity featuring USB Type-C. The build quality is highlighted by tempered glass panels, providing both durability and a clear view of your system.

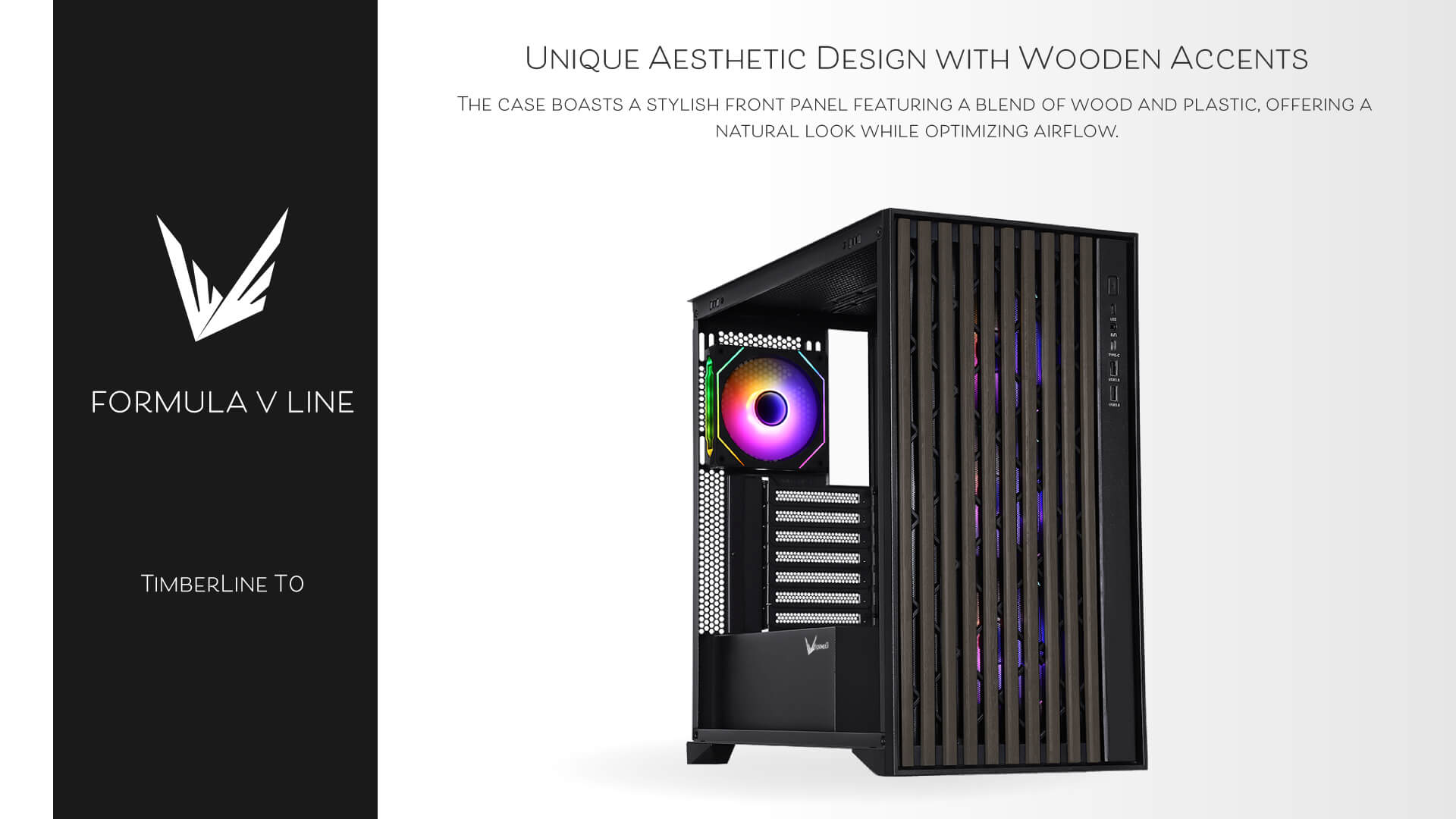

  • Unique Aesthetic Design with Wooden Accents

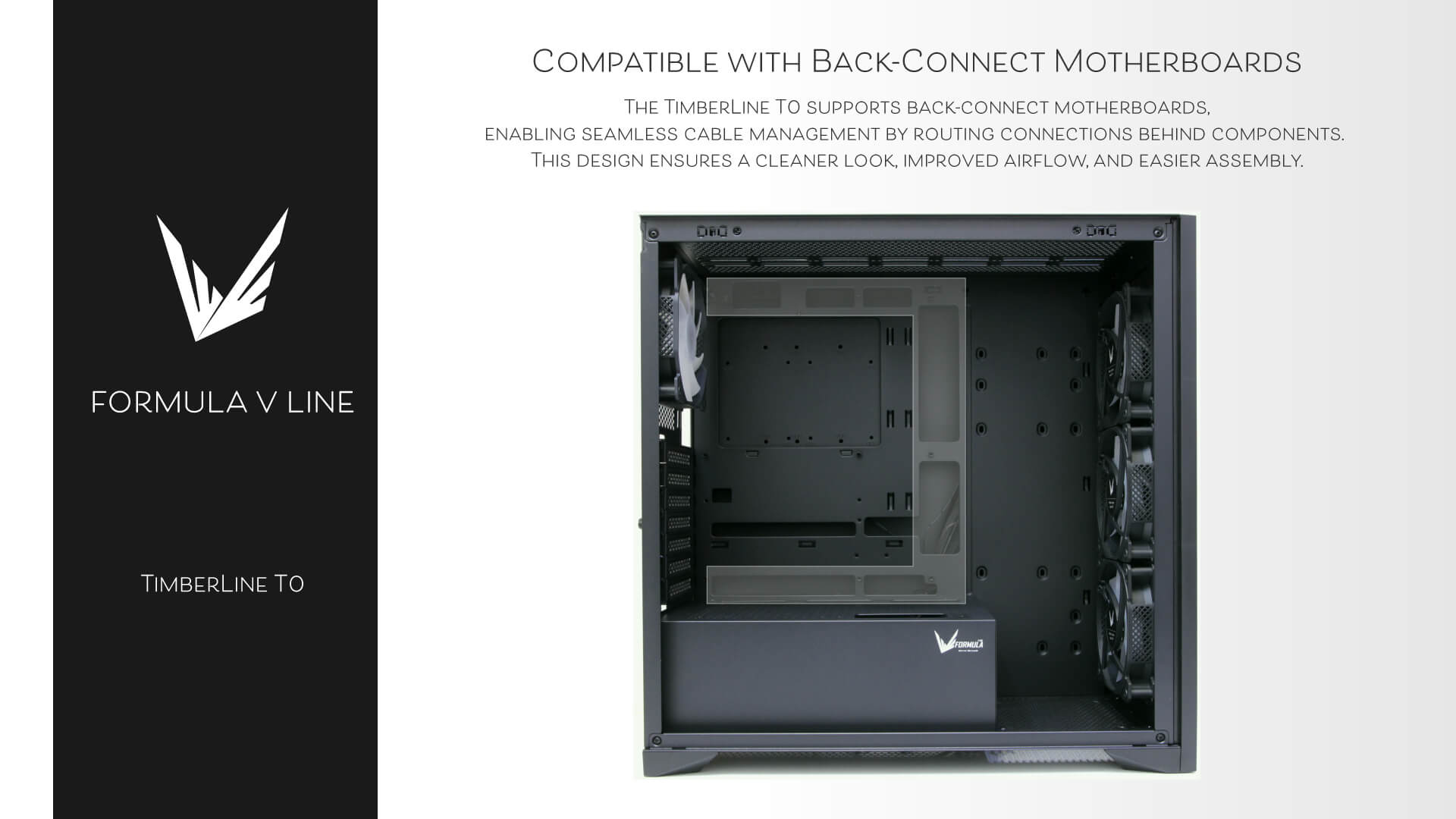

  • Compatible with Back-Connect Motherboards

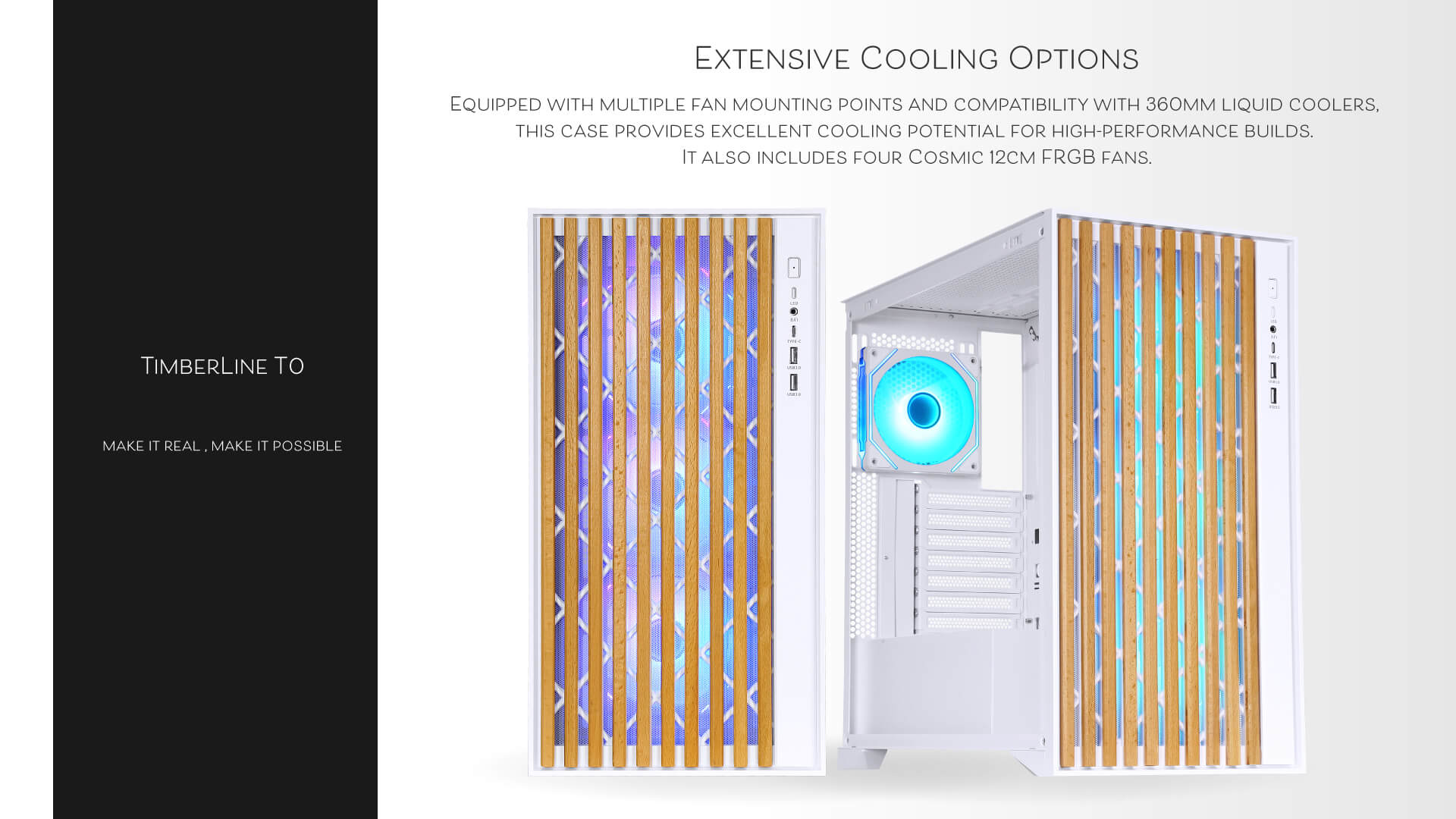

  • Extensive Cooling Options, including four Cosmic 12cm FRGB fans

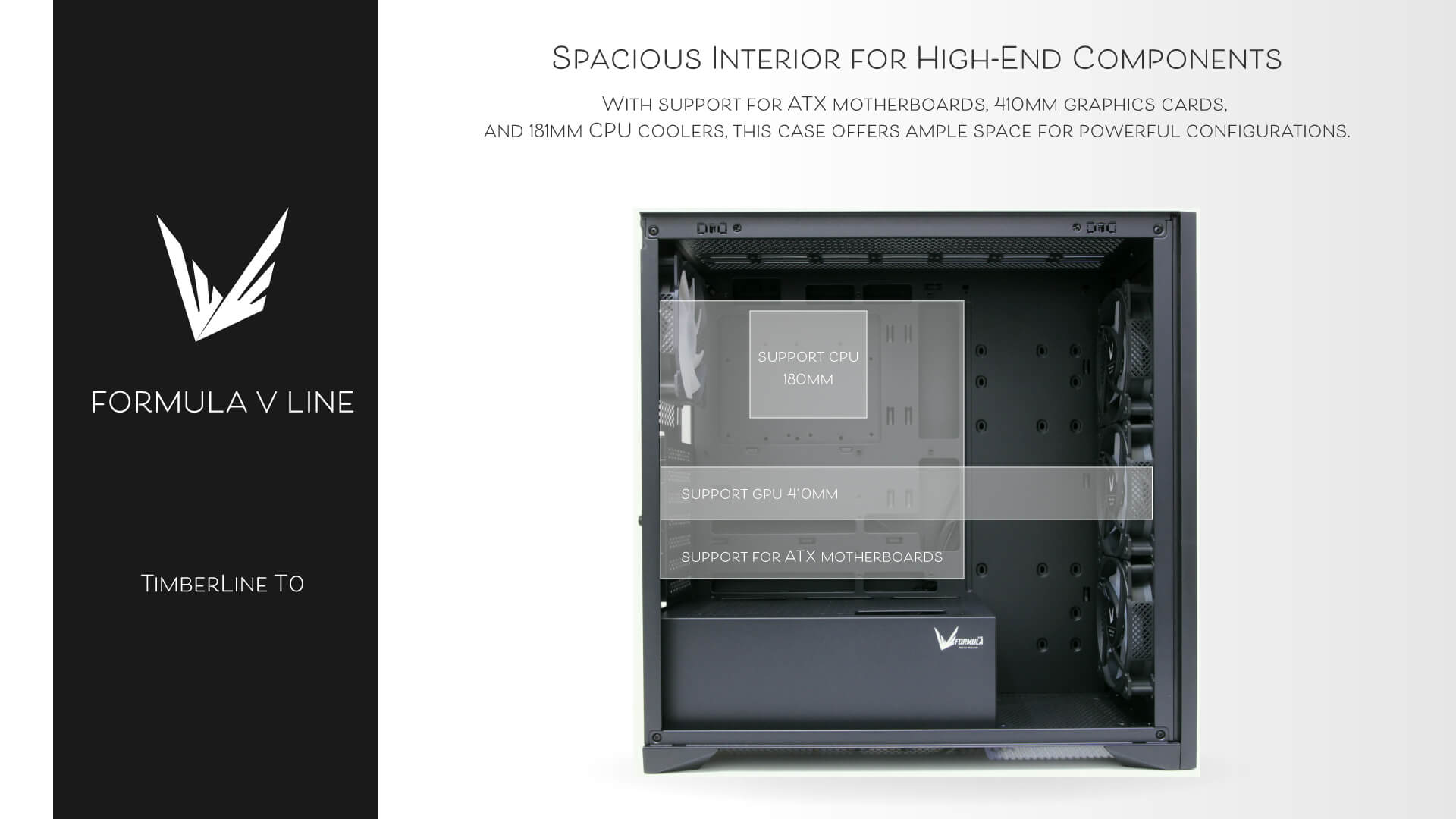

  • Spacious Interior for High-End Components

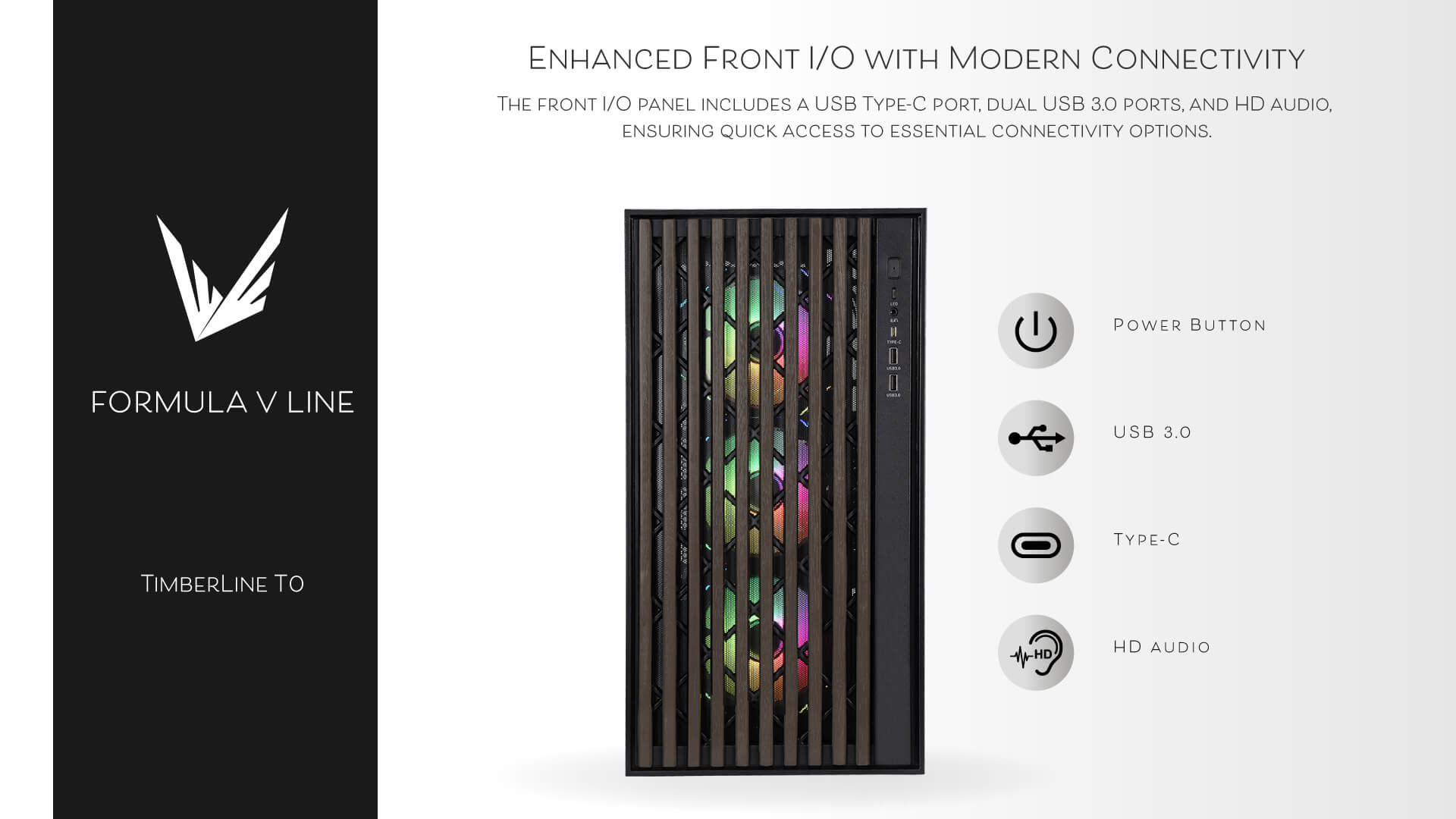

  • Enhanced Front I/O with Modern Connectivity

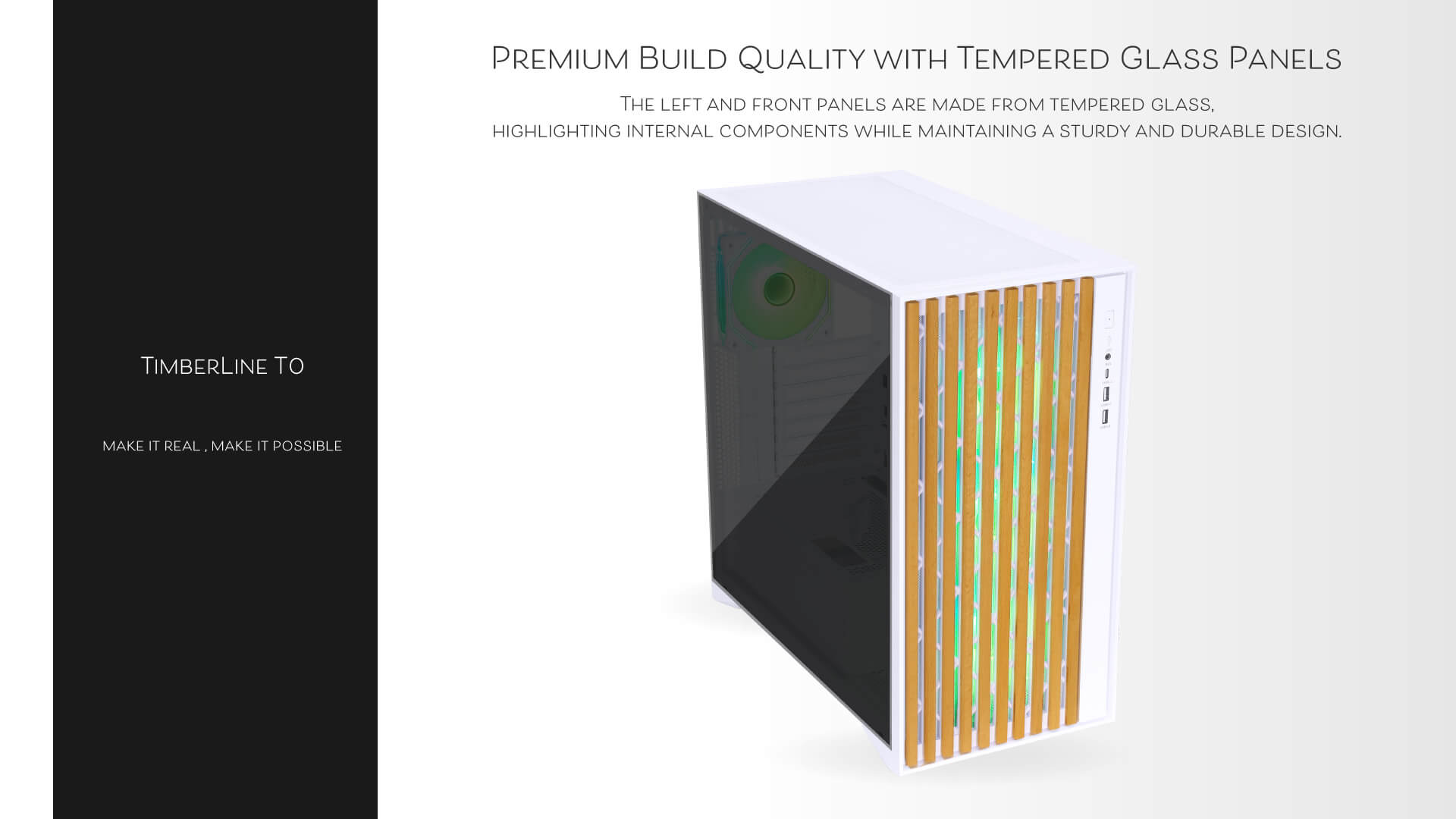

  • Premium Build Quality with Tempered Glass Panels

The cooling and hardware layout shown in the product photos is for reference only.
Please check the website’s product specifications for the actual configuration.

Black
White
section-0 section-1 section-2 section-3 section-4 section-5

Specifications

    • Model TIMBERLINE T0
      Case Type Mid Tower
      Color Black | White
      Front Materia ABS + woodenl
      Steel Thickness 0.7mm
      Motherboards ATX / micro ATX / mini-ITX
      Case Dimensions 453 x 235 x 450mm
      3.5” / 2.5”Drive Bays 2 / 2
      Expansion Slots 7
      GPU Clearance Supports GPU up to 410mm
      CPU Cooler Clearance Supports CPU cooler up to 181mm
      I/O Ports Type C x 1, USB3.0 x 2 , HD AUDIO
      Liquid Cooling Front & Top: support 120/240/360mm liquid cooler
      Rear: 1 x 120mm/140mm (Pre-Installed 1 x COSMIC 12 FR)
      Air Cooling Front: 3 x 120mm/140mm or 2 x 160mm (Pre-Installed 3 x COSMIC 12 FR)
      Bottom: 1 x 120mm Max.
      Top: 3 x 120mm / 2 x 140mm Max.
      Power Box 2 x 120mm Max.
