ICE BOID 4PSD12

The ICE BOID 4PSD12 air cooler delivers efficient cooling performance, utilizing the heat pipe technology. Equipped with high-efficiency fins for improved heat dissipation, it supports single 120mm fan setups and is compatible with most modern motherboard designs.

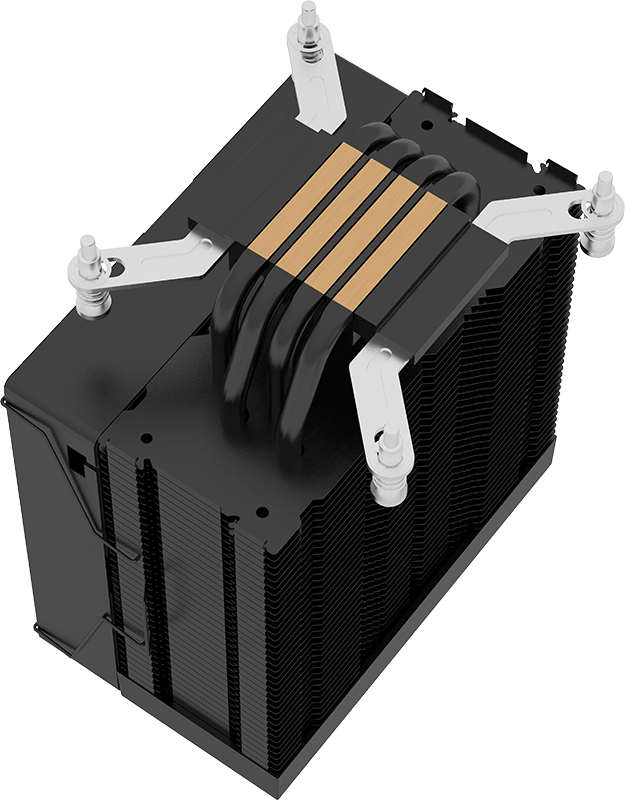

  • Delivers efficient cooling performance with heat pipe technology featuring four ultra-efficient thermal heat pipes.

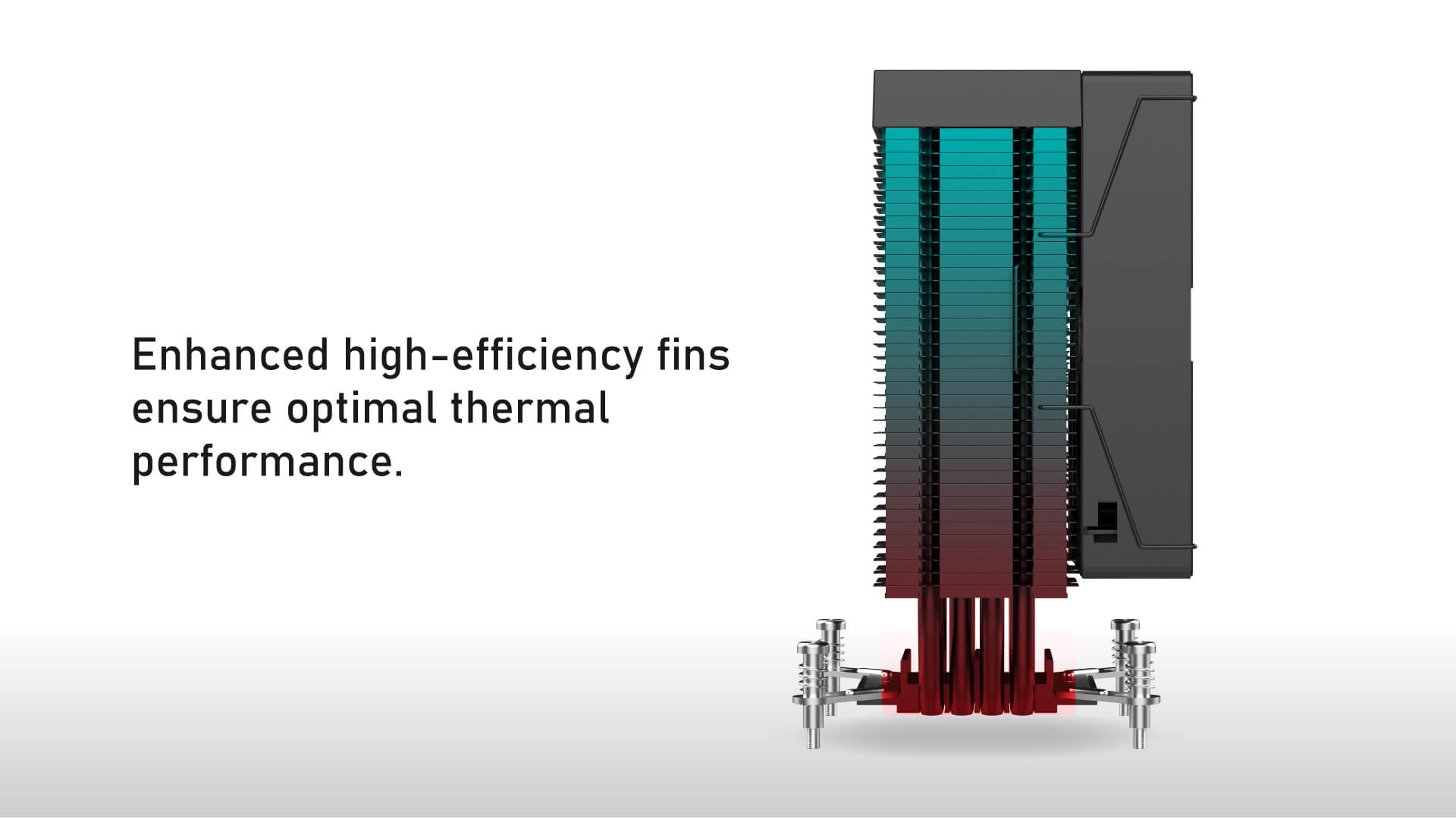

  • Enhanced high-efficiency fins ensure optimal thermal performance.
  • Supports TDP (Thermal Design Power) of up to 200W.

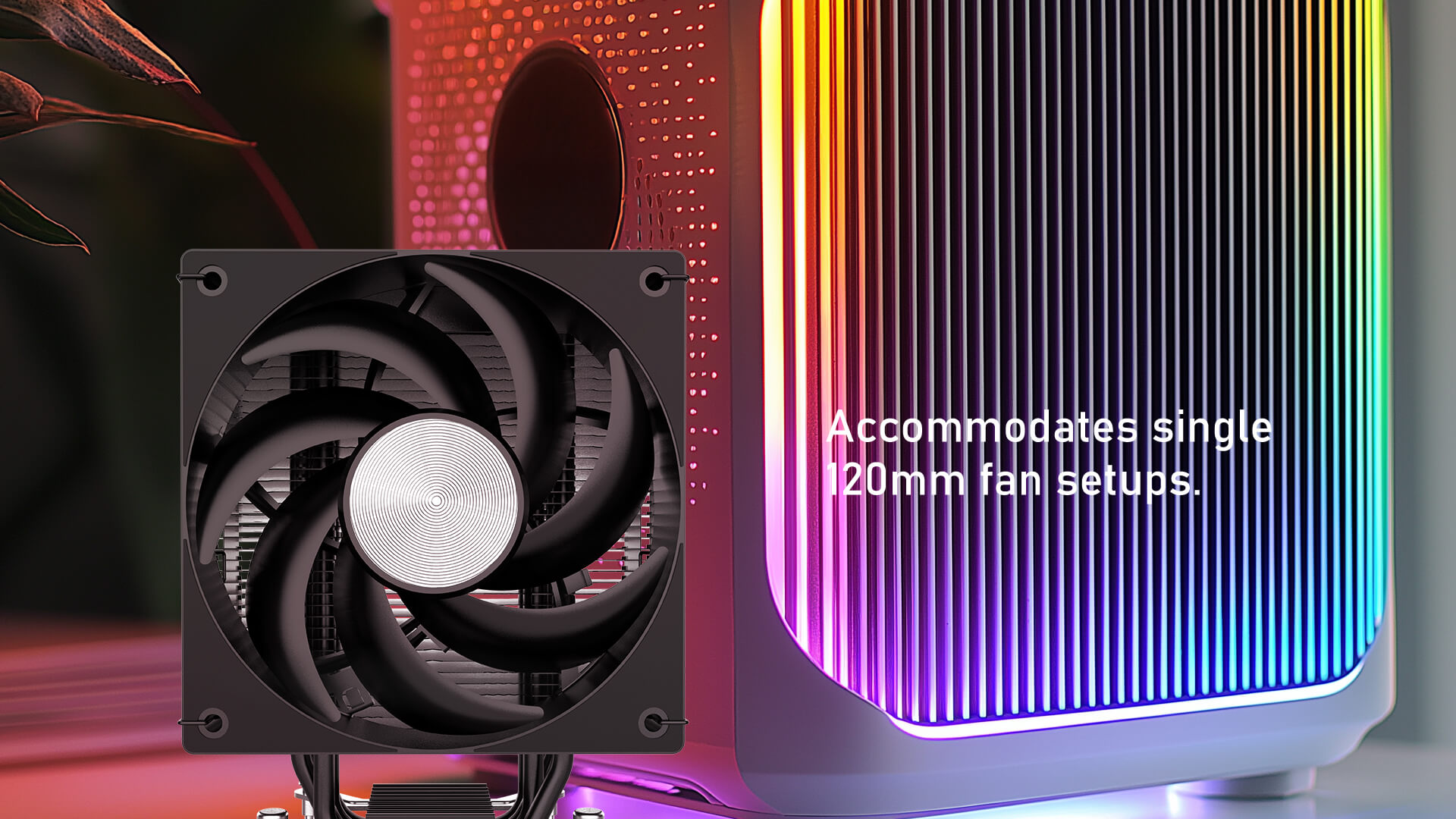

  • Accommodates single 120mm fan setups.
  • Compact design ensures maximum compatibility.
  • Works with most modern motherboard designs.
section-0 section-1 section-2

Specifications

    • Pipe Qty 4
      Pipe dimension 6mm
      Copper base Y
      Overall(WxDxH) 120 x 73 x 157mm
      Product Weight 448g
      Fan size 120mm
      Fan frame color Black
      Fan Blade color Black
      Bearing Hydraulic Bearing
      Connector Type 4pin
      Fan speed 400-2200
      Max AirFlow 82.98CFM
      Max. Static Pressure 3.33mmH2O
      Rated Voltage 12VDC(4Pin PWM)
      Operating Voltage 10.8~13.2VDC
      Started Voltage 5VDC
      Rated Current 0.23A
      Power Input 2.76W
      Noice Level 34.34dBA Max.
      With LED No
      TDP 200
