ICE BOID 3PSD9

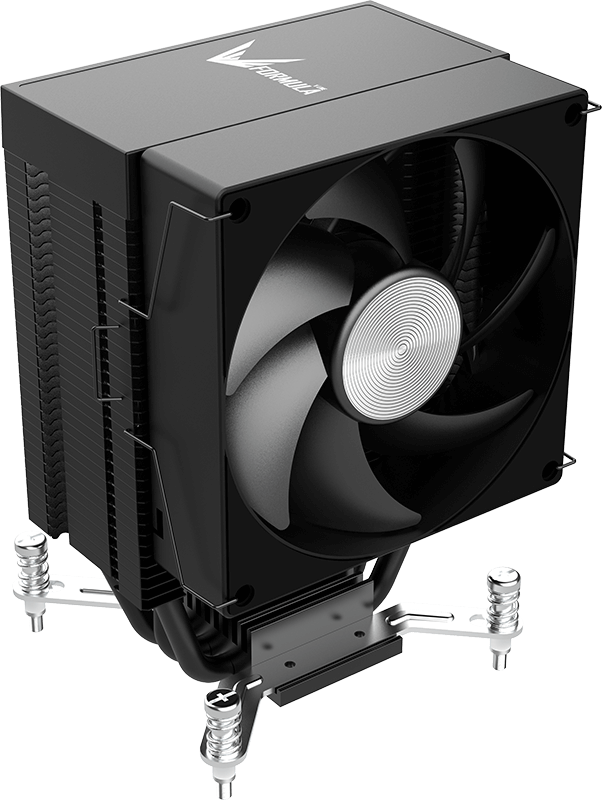

The ICE BOID 3PSD9 air cooler delivers efficient cooling performance, utilizing the heat pipe technology. Equipped with high-efficiency fins for improved heat dissipation, it supports single 90mm fan setups and is compatible with most modern motherboard designs.

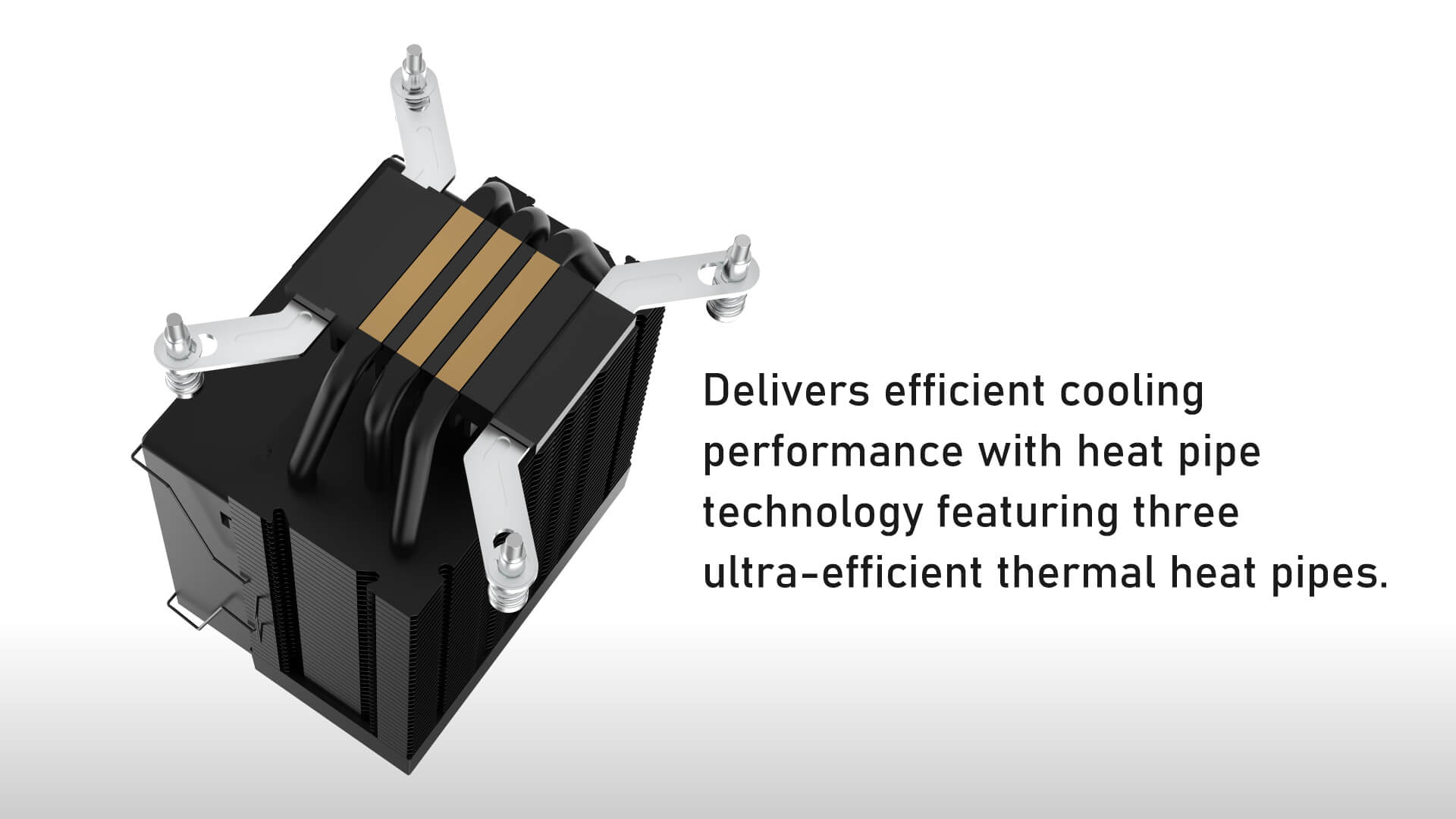

  • Delivers efficient cooling performance with heat pipe technology featuring three ultra-efficient thermal heat pipes.

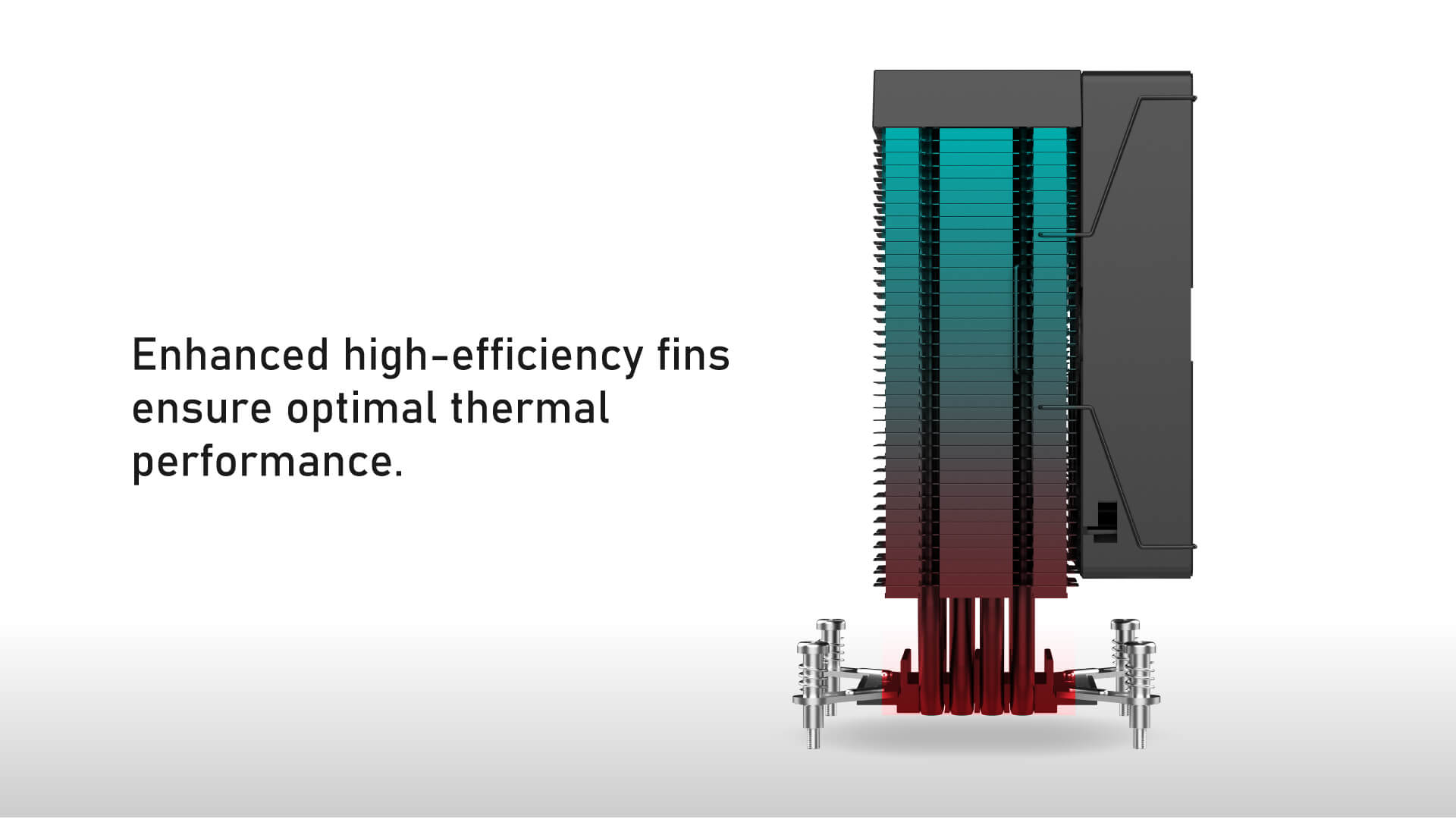

  • Enhanced high-efficiency fins ensure optimal thermal performance.
  • Supports TDP (Thermal Design Power) of up to 140W.

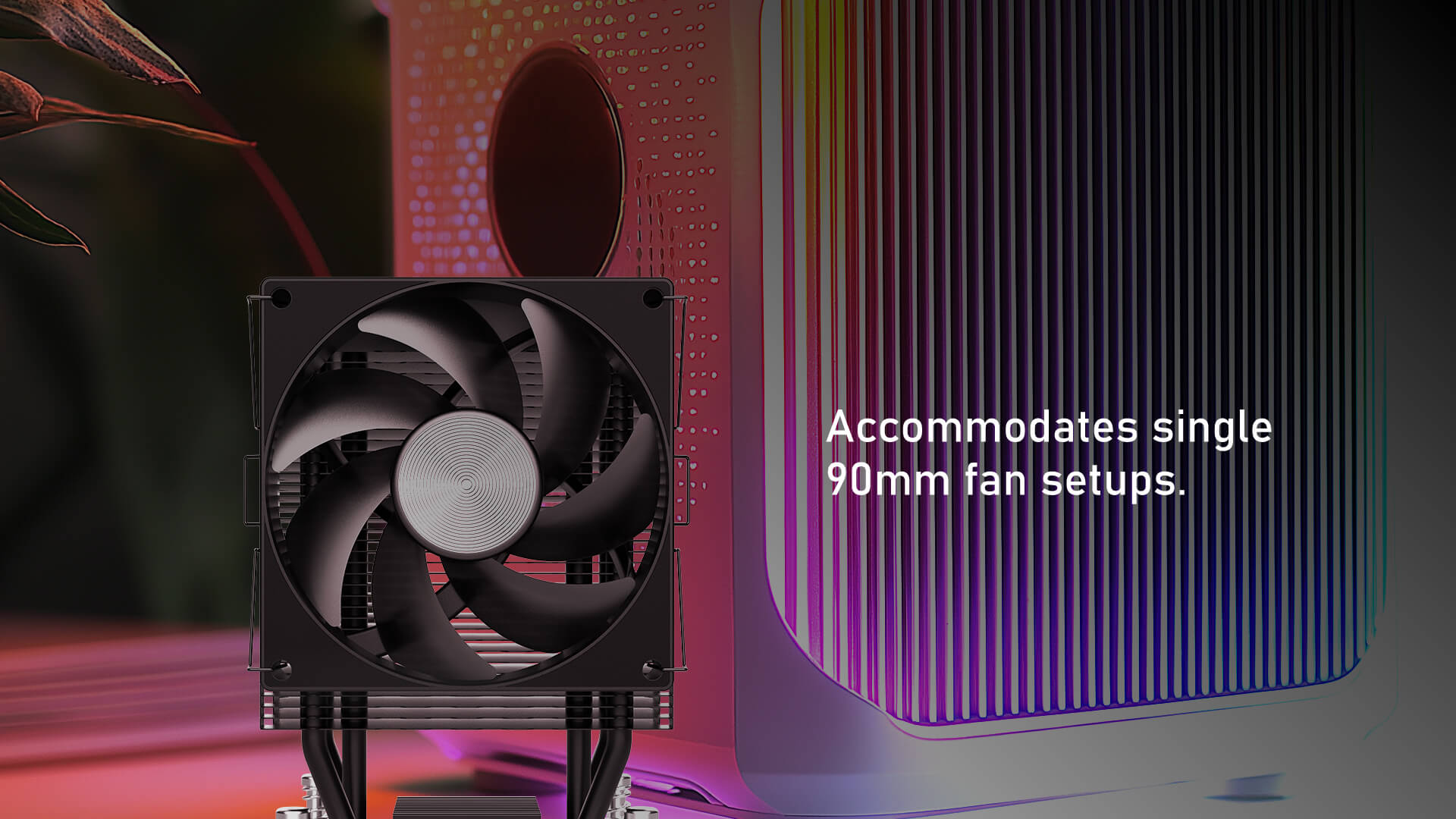

  • Accommodates single 90mm fan setups.
  • Compact design ensures maximum compatibility.
  • Works with most modern motherboard designs.
section-0 section-1 section-2

Specifications

    • Pipe Qty 3
      Pipe dimension 6mm
      Copper base Y
      Overall(WxDxH) 97 x 73 x 134mm
      Product Weight 332g
      Fan size 90mm
      Fan frame color Black
      Fan Blade color Black
      Bearing Hydraulic Bearing
      Connector Type 4pin
      Fan speed 400-2200
      Max AirFlow 40.71CFM
      Max. Static Pressure 1.87mmH2O
      Rated Voltage 12VDC(4Pin PWM)
      Operating Voltage 10.8~13.2VDC
      Started Voltage 7VDC
      Rated Current 0.2A
      Power Input 2.4W
      Noice Level 26.43dBA Max.
      With LED No
      TDP 140
