CRYSTAL Z9ML

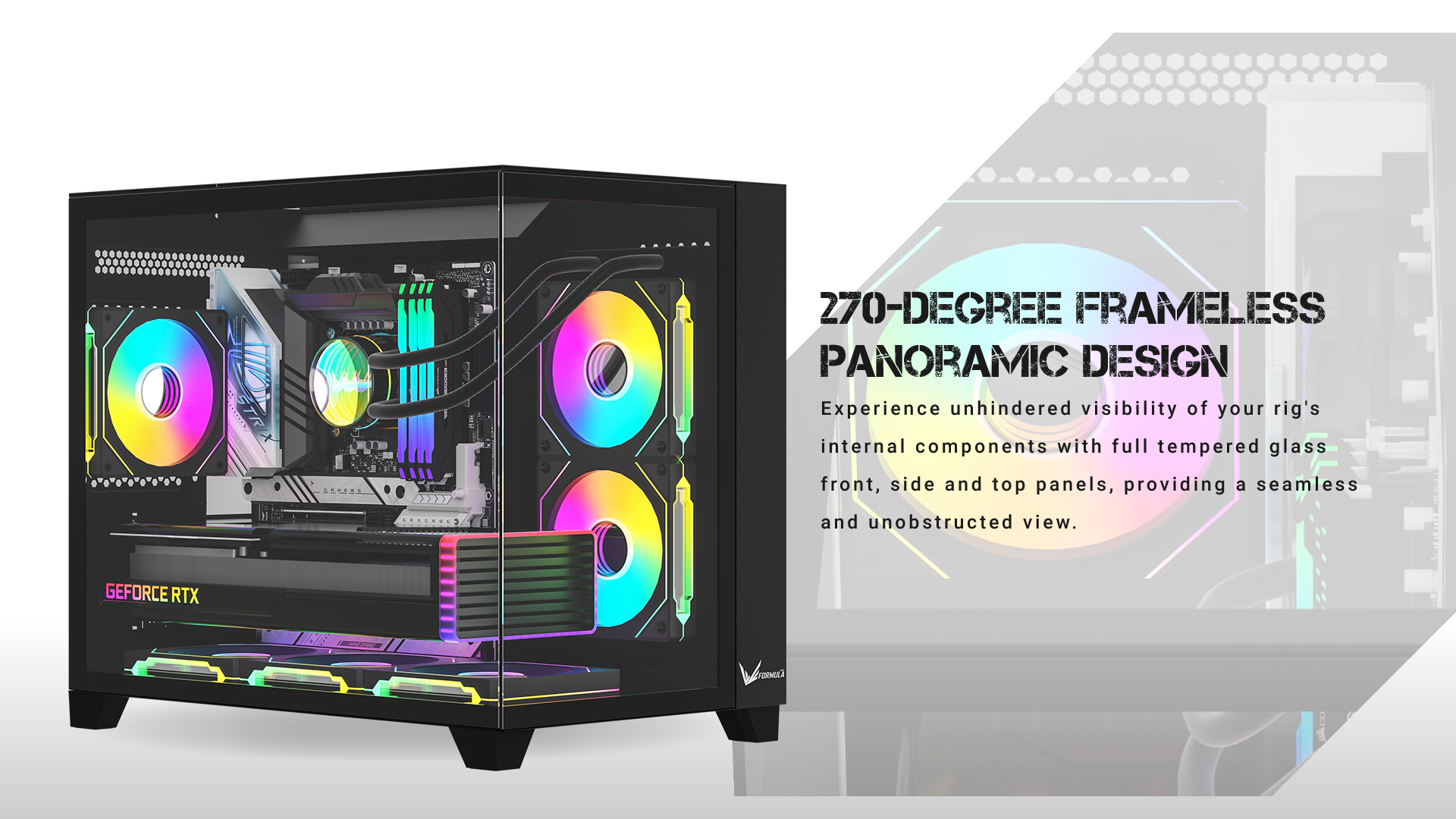

– 270-degree frameless panoramic design

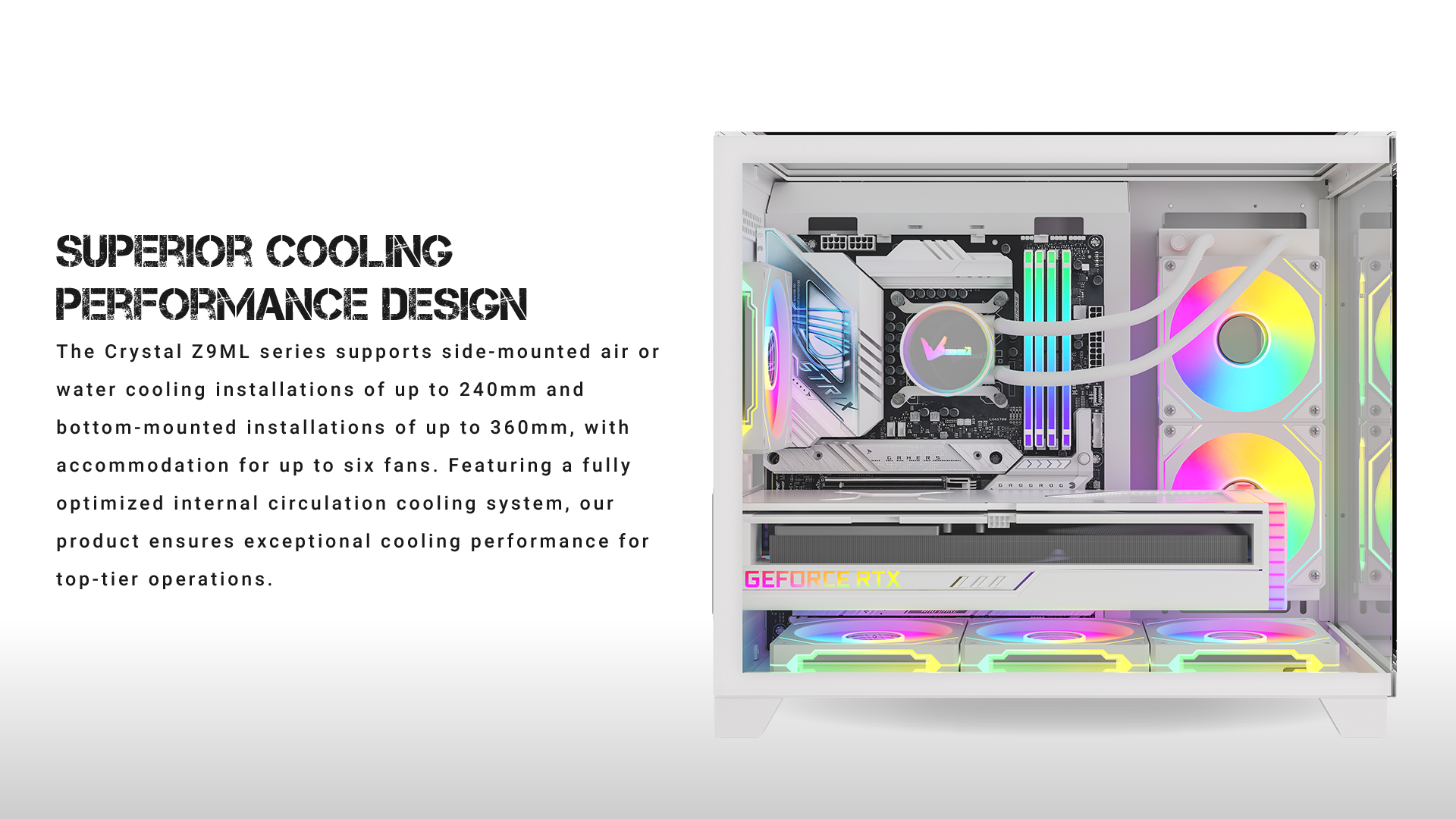

– Superior Cooling Performance

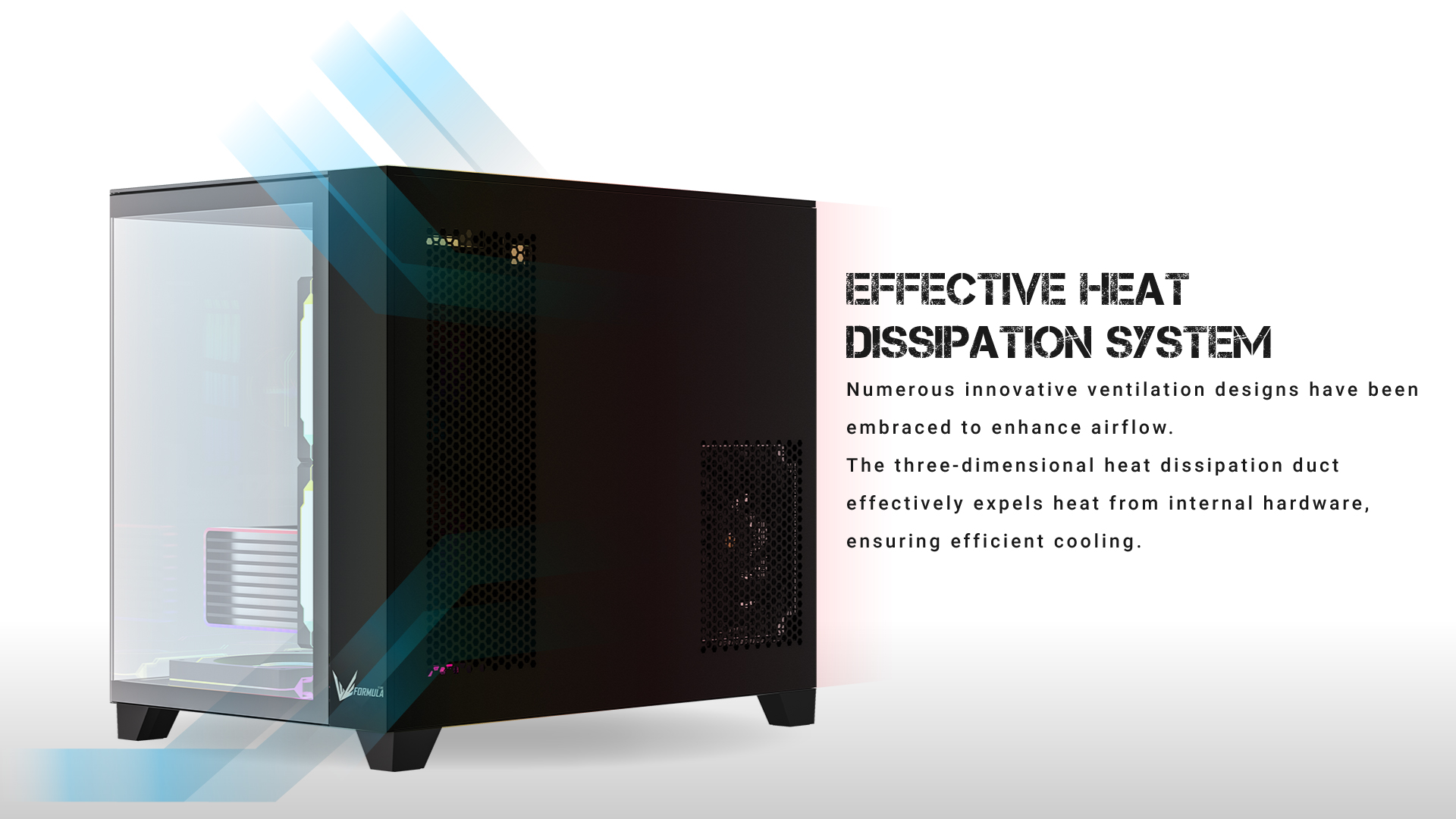

– Effective Heat Dissipation System

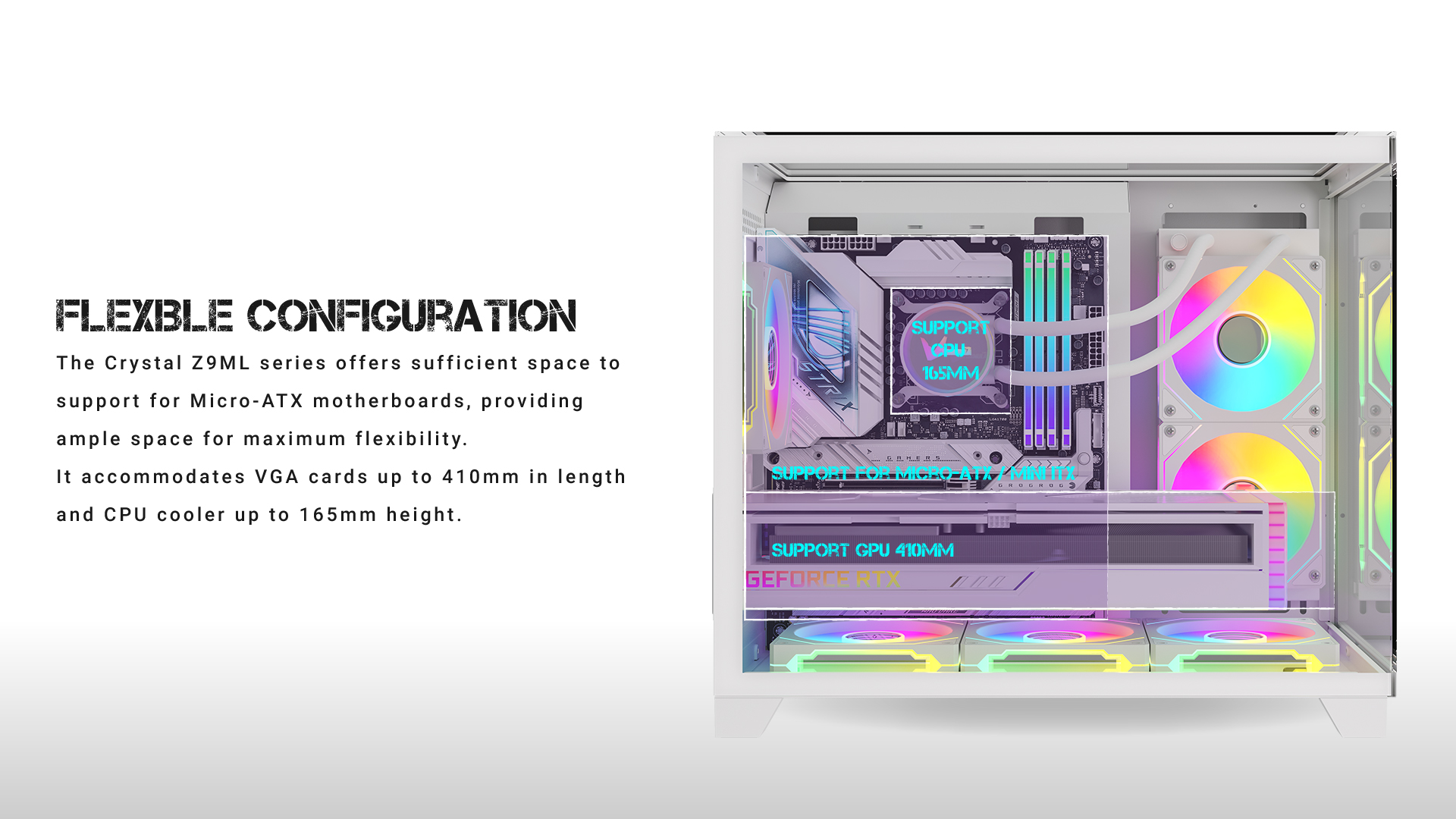

– Flexible Configuration

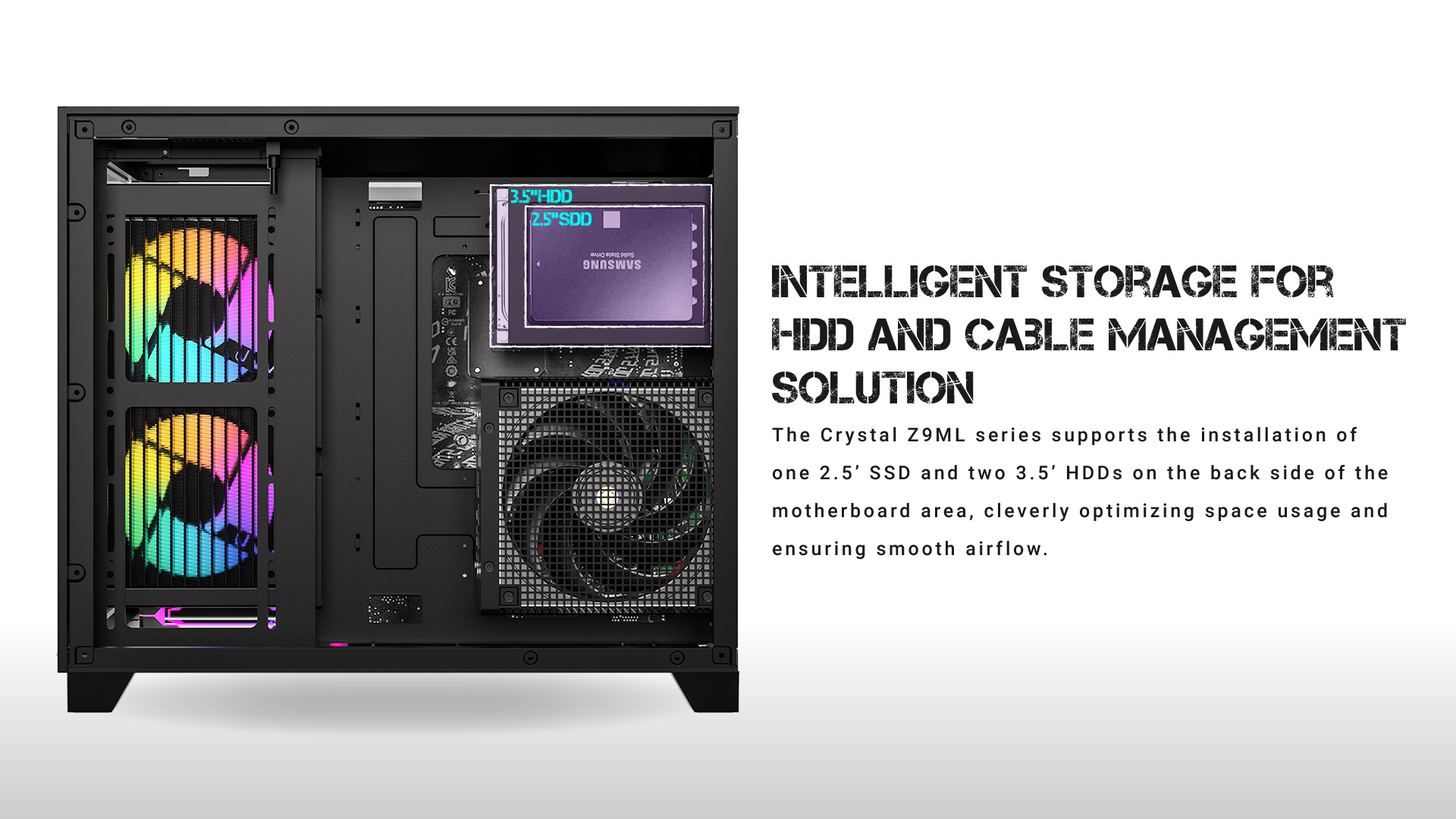

– Intelligent storage for HDD and cable management solution
– New generation I/O Ports with Type C equipped.
The cooling and hardware layout shown in the product photos is for reference only.
Please check the website’s product specifications for the actual configuration.

Black
White
section-0 section-1 section-2 section-3 section-4 section-5

Specifications

    • Model CRYSTAL Z9ML | CRYSTAL Z9ML FLOE
      Case Type Mid Tower
      Color Black | White
      Body Material SPCC
      Steel Thickness 0.6mm
      Motherboards micro ATX / mini-ITX
      Case Dimensions 425 x 280 x 379mm
      3.5” Drive Bays 2
      2.5” Drive Bays 1
      Expansion Slots 4
      GPU Clearance Supports GPU up to 410mm
      CPU Cooler Clearance Supports CPU cooler up to 165mm
      I/O Ports Type C x 1, USB3.0 x 1, USB2.0 x 1, HD AUDIO
      Power Supply ATX PSU
      Liquid Cooling Right Side: 240mm Max.
      Bottom: 360mm Max.
      Air Cooling CRYSTAL Z9ML
      Bottom: 3 x 120mm Max.
      Right Side: 2 x 120mm Max.
      Rear: 1 x 120mm Max.
      CRYSTAL Z9ML FLOE
      Bottom: 3 x 120mm FLOE 12BK/WH ARPW (Included)
      Right Side: 2 x 120mm FLOE 12BK/WH ARPW (Included)
      Rear: 1 x 120mm FLOE 12BK/WH ARPW (Included)
