CRYSTAL Z1M

Enjoy an impressive panoramic view with the CRYSTAL Z1M.

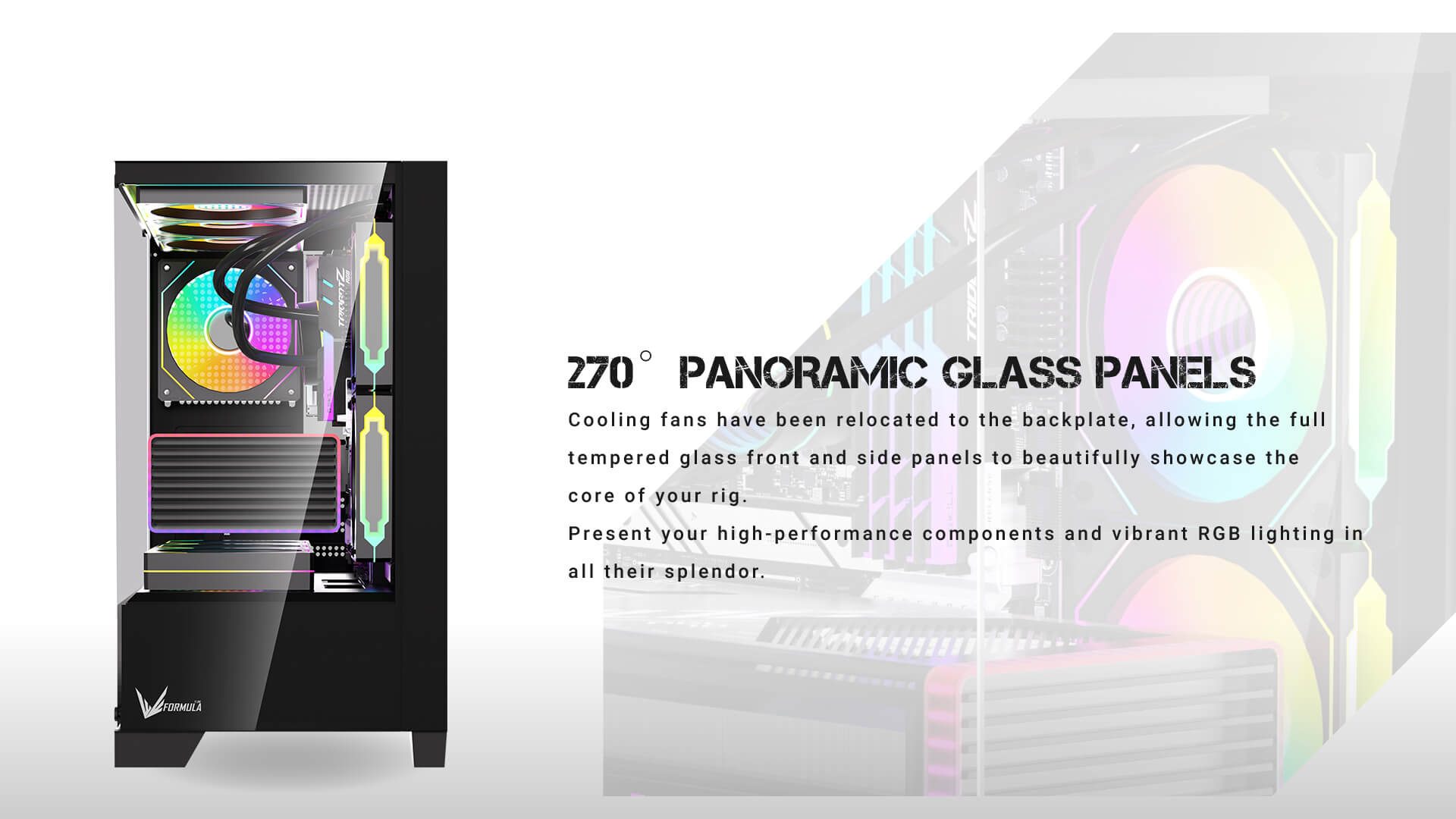

Its exceptional design lets you see your hardware through full tempered glass front and side panels.

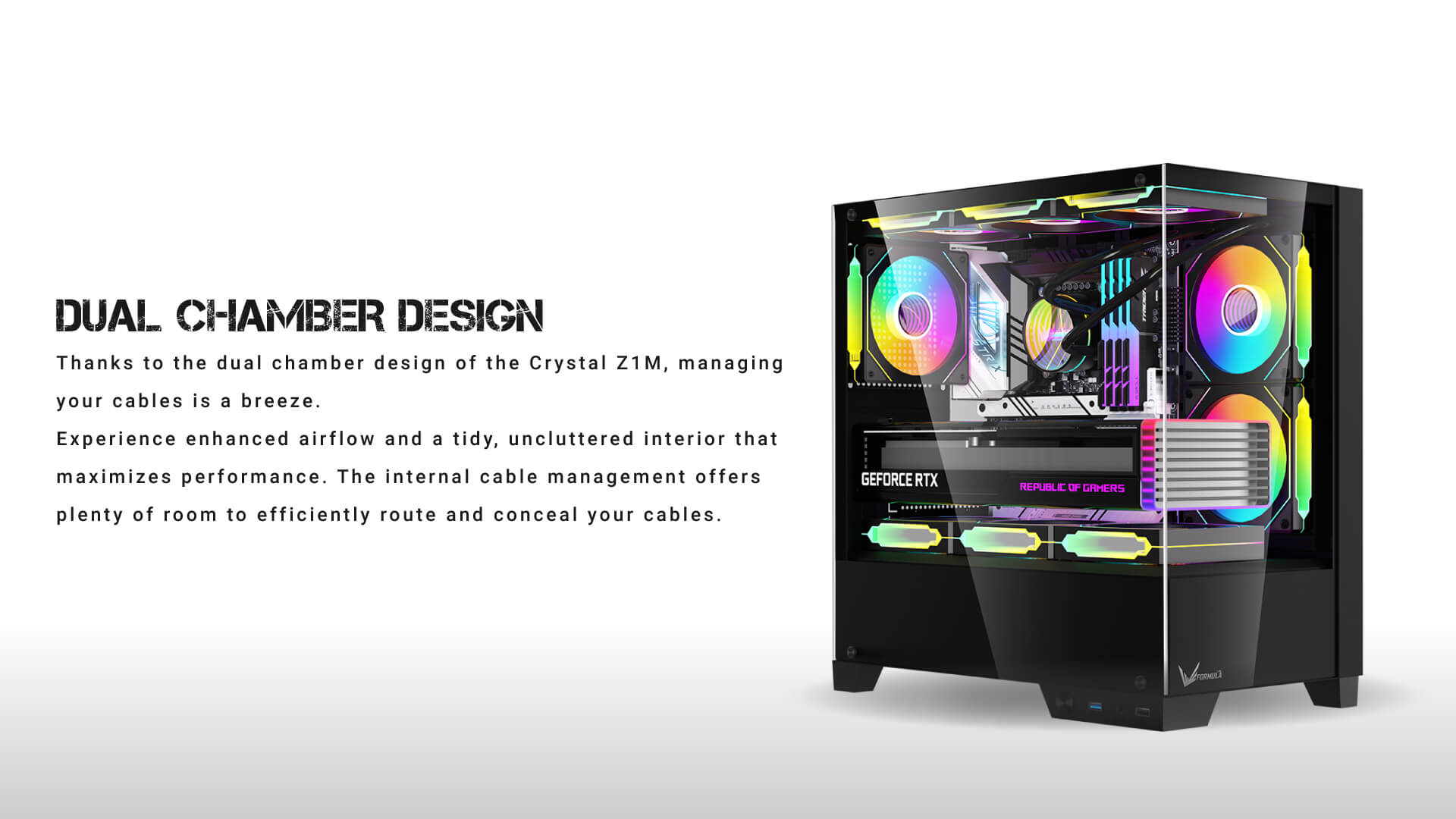

With an emphasis on sleek aesthetics, enhanced cooling structure, and effortless cable management, the Crystal Z1M is the ideal pick for gamers who want a blend of style and performance.

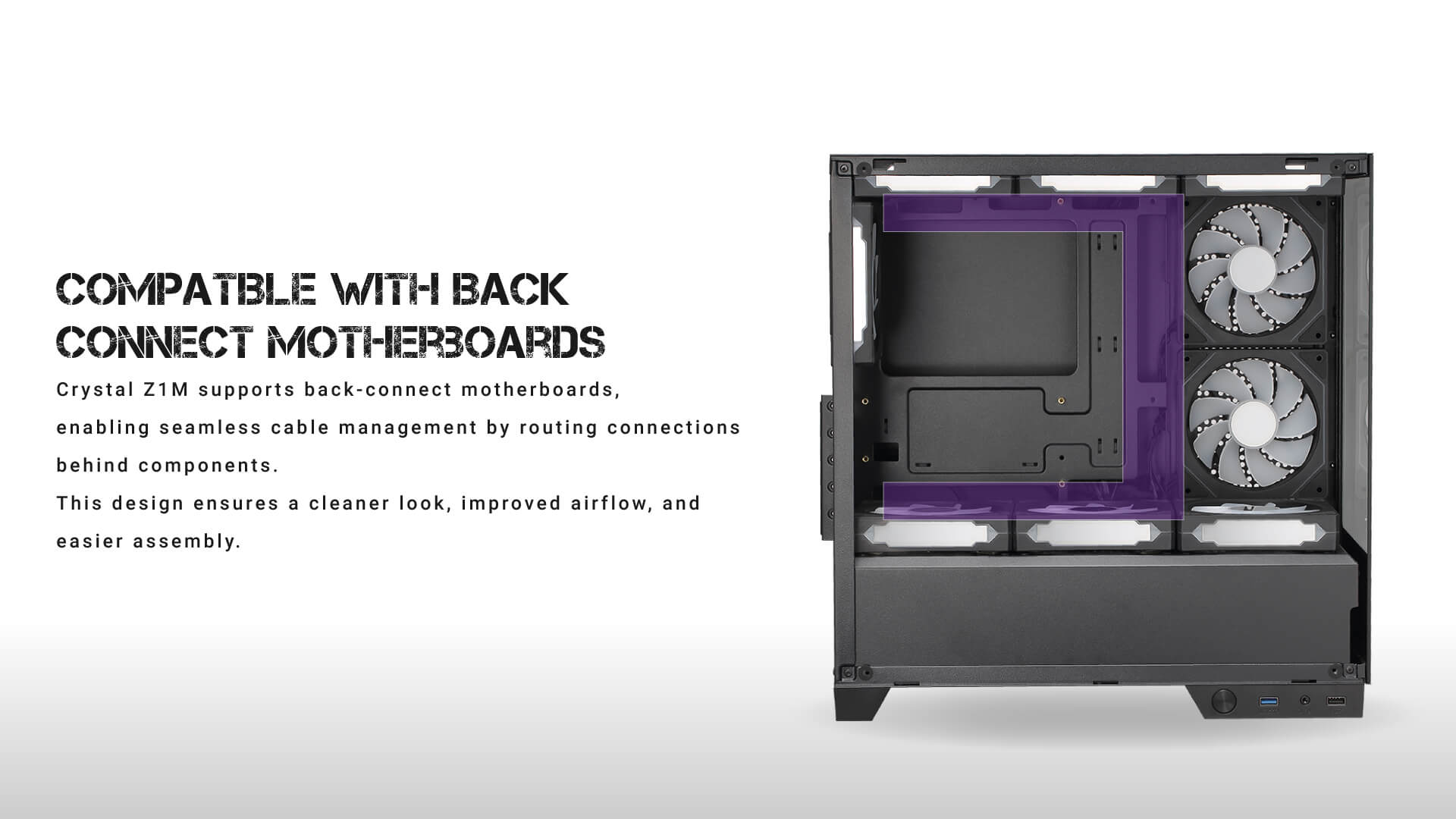

Compatible with Back-Connect Motherboards.
The cooling and hardware layout shown in the product photos is for reference only.
Please check the website’s product specifications for the actual configuration.

section-0 section-1 section-2 section-3 section-4 section-5

Specifications

    • Model CRYSTAL Z1M
      Case Type Mini Tower
      Color Black
      Body Material SPCC
      Steel Thickness 0.55mm
      Motherboards micro ATX / mini-ITX

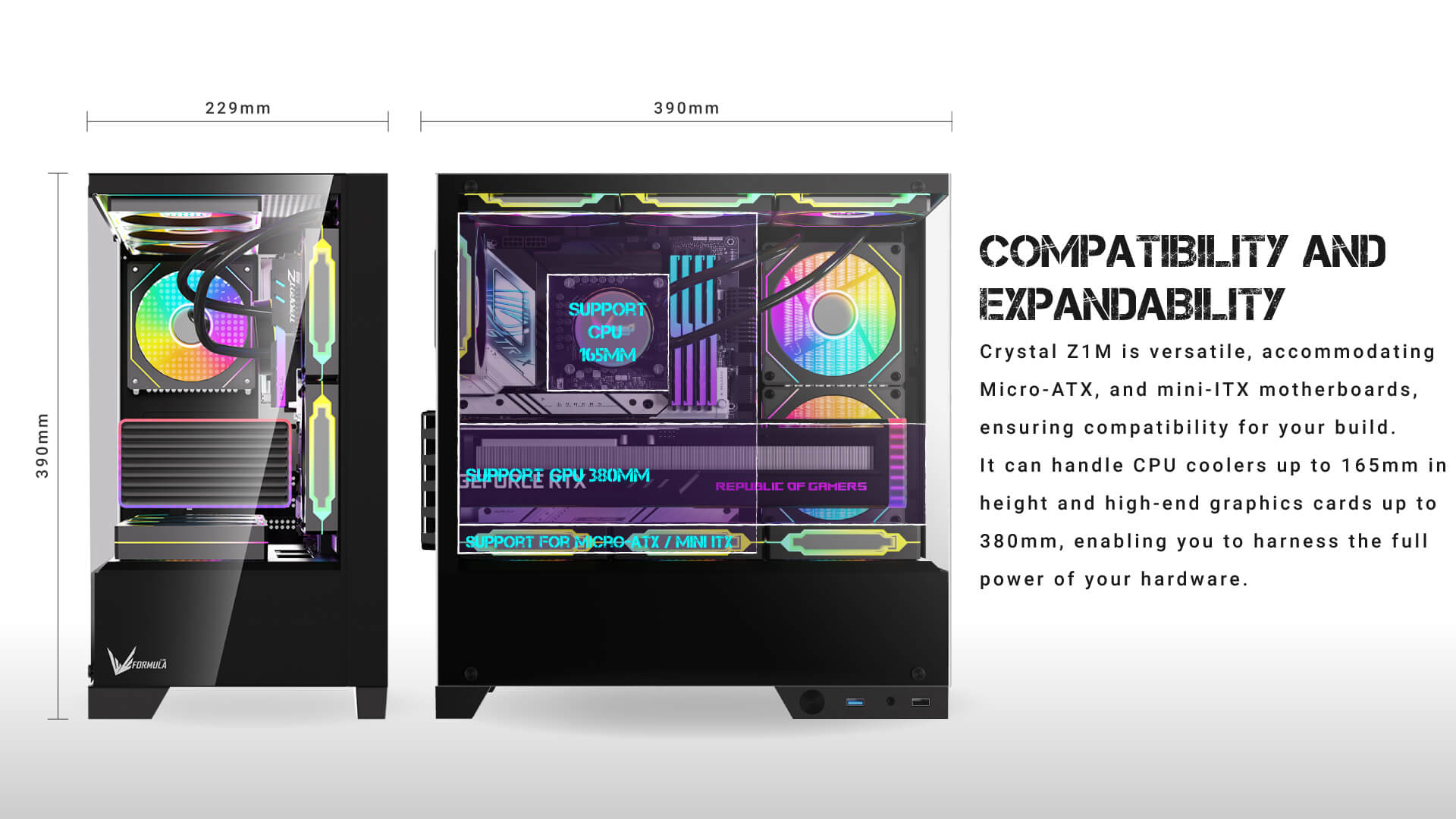

      Case Dimensions 390 x 229 x 390mm
      3.5” Drive Bays 1
      2.5” Drive Bays 1
    • Expansion Slots 5
      GPU Clearance Supports GPU up to 380mm
      CPU Cooler Clearance Supports CPU cooler up to 165mm

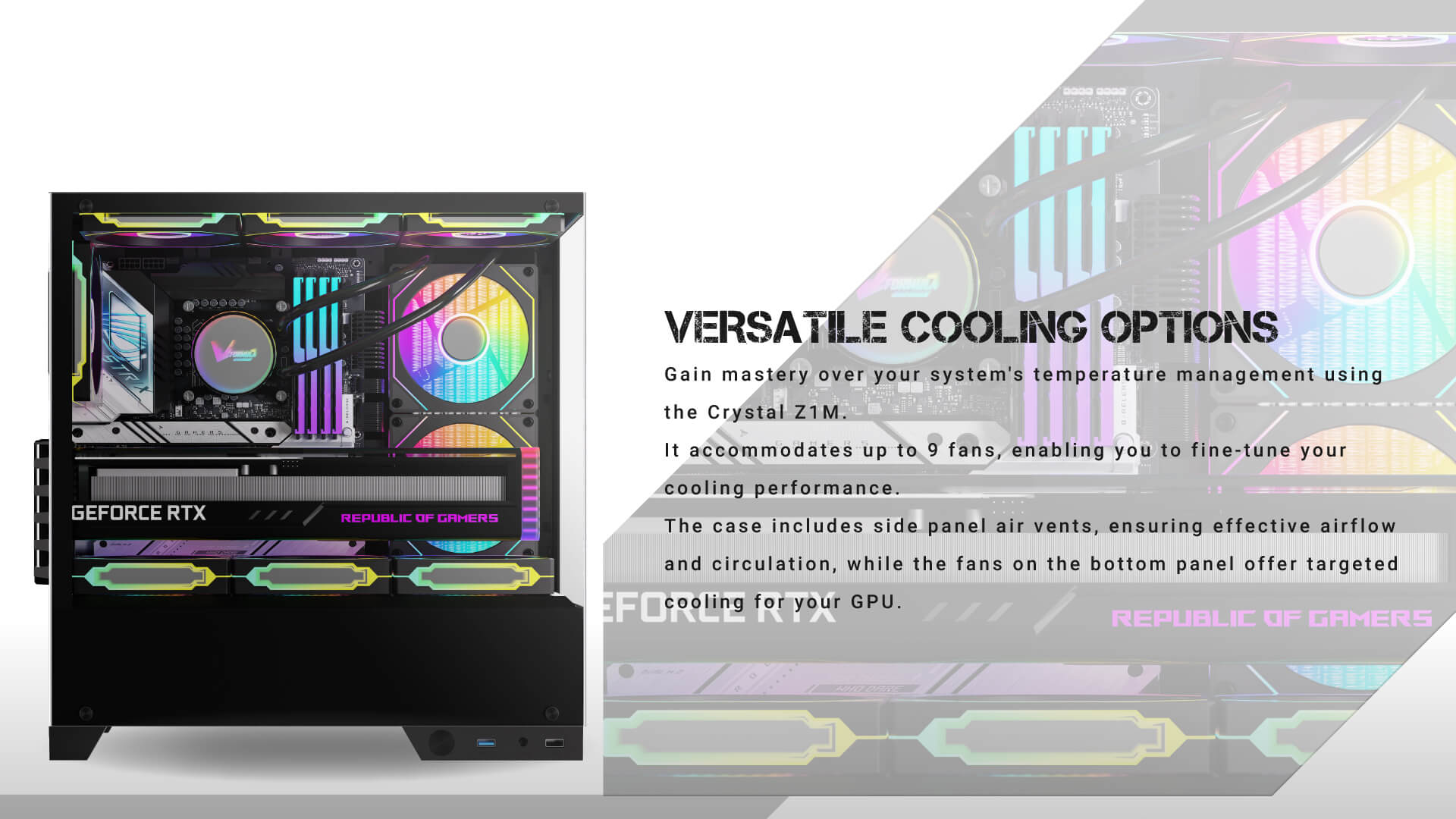

      Air Cooling Rear: 1 x 120mm Fan Max.
      Top: 3 x 120mm Fan Max.
      Bottom: 3 x 120mm Fan Max.
      Right side: 2 x 12cm Max.
      Liquid Cooling Top: Supports 240mm Max.
      I/O Ports 1 x USB3.0 | 1 x USB2.0 | HD audio
      Power Supply ATX PSU
