AIR POWER G5 PLUS

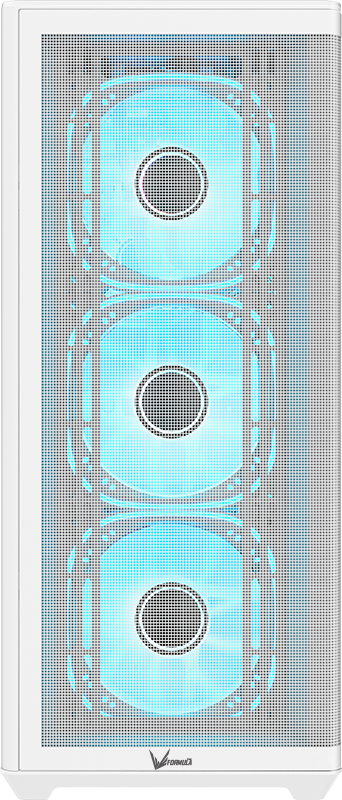

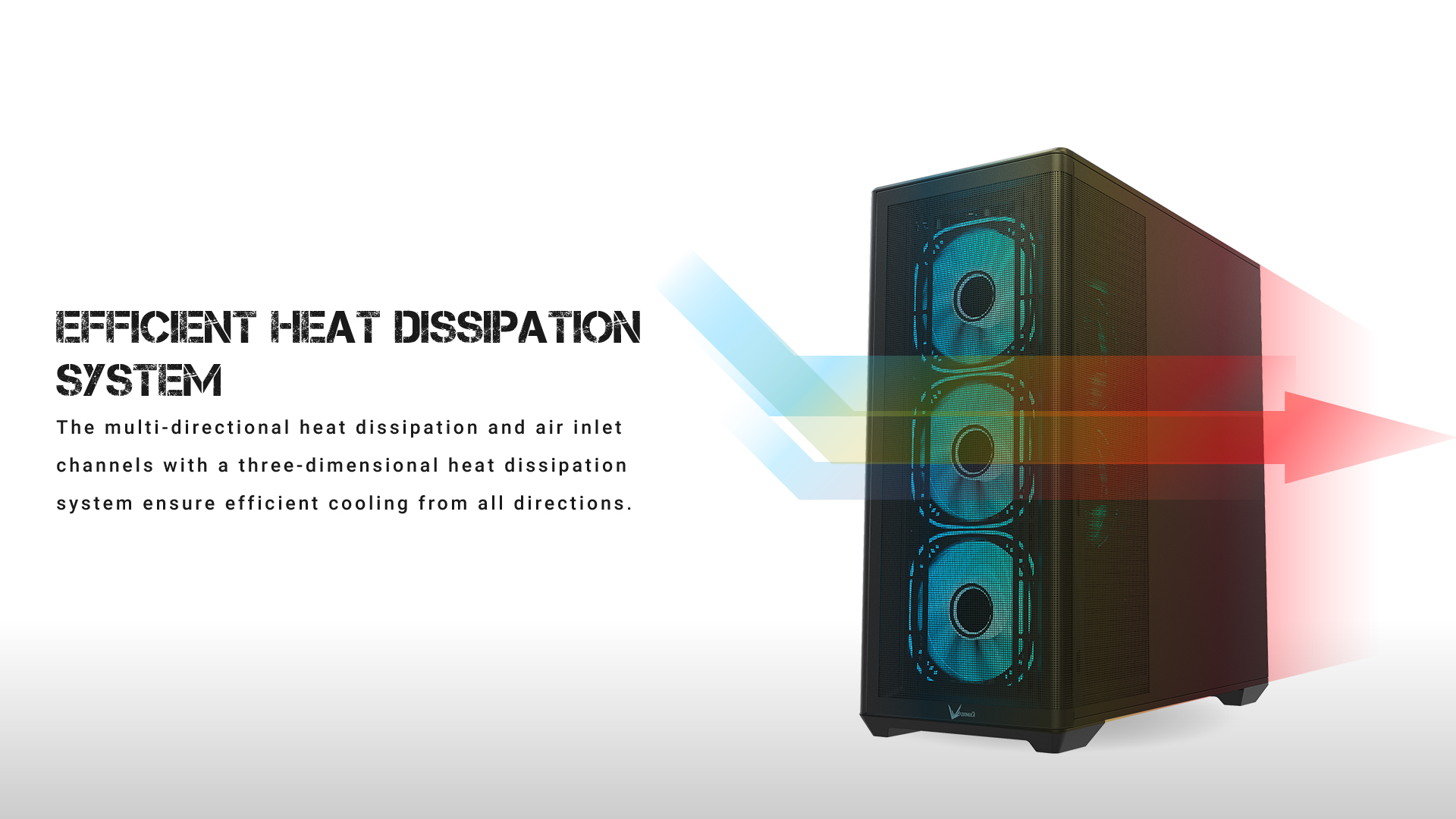

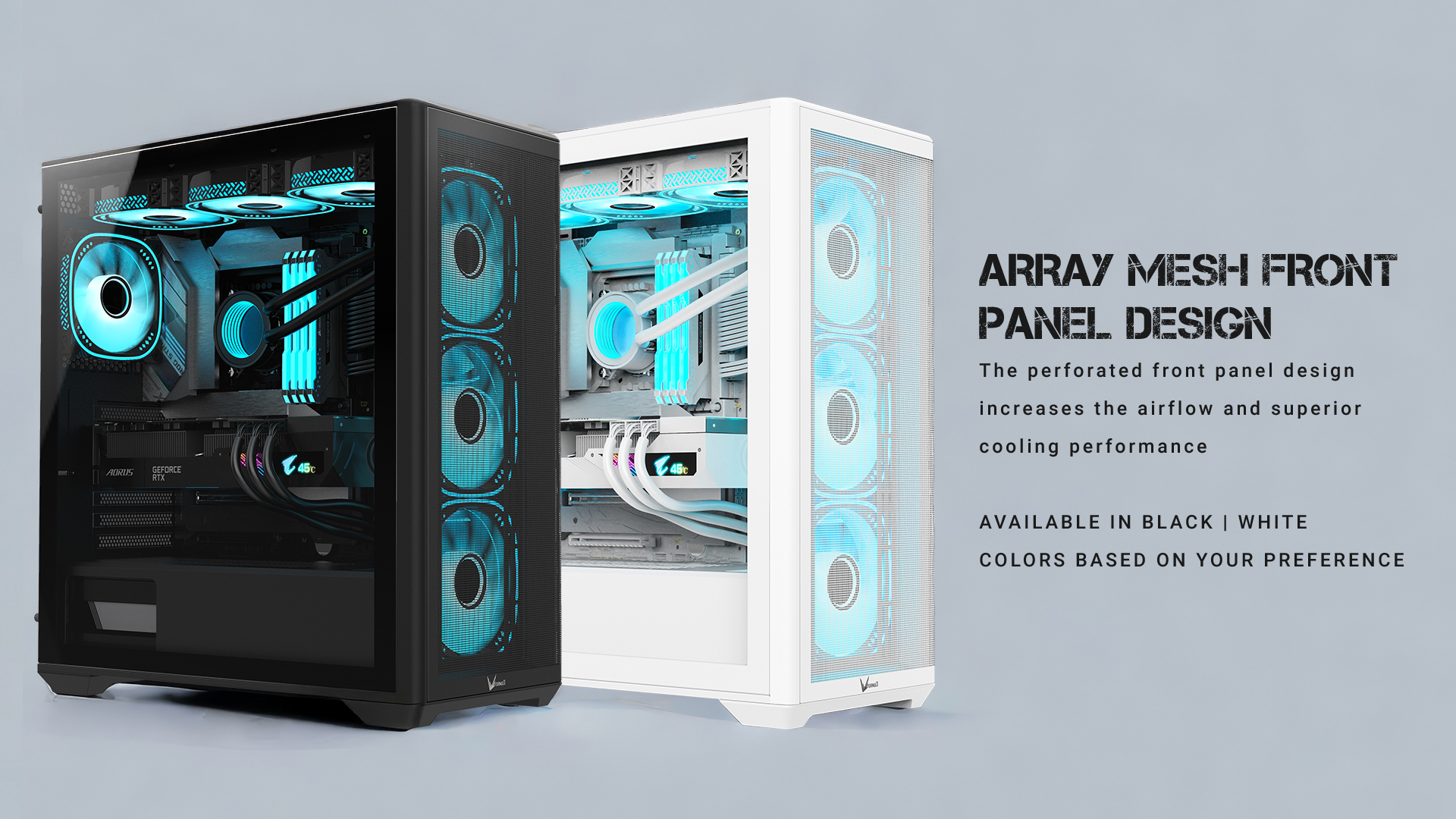

The perforated front panel design increases the airflow and superior cooling performance
The cooling and hardware layout shown in the product photos is for reference only.
Please check the website’s product specifications for the actual configuration.

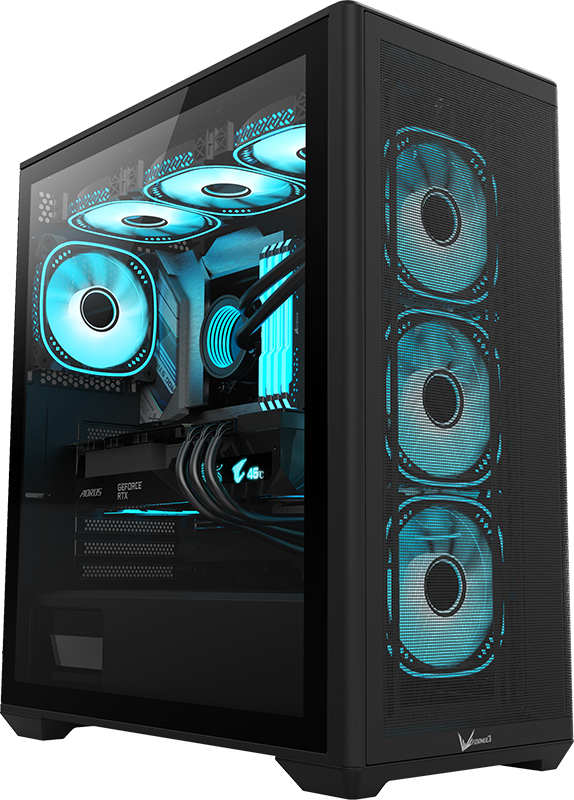

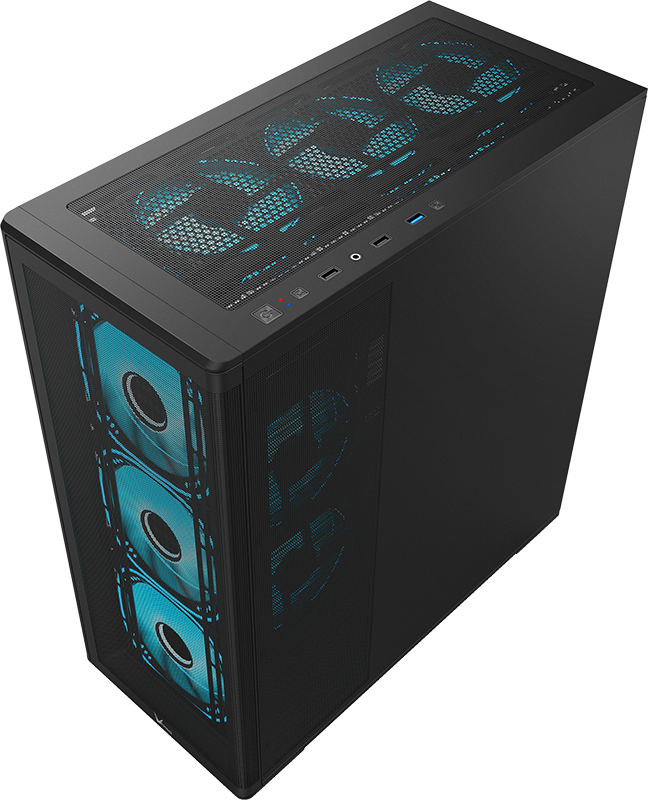

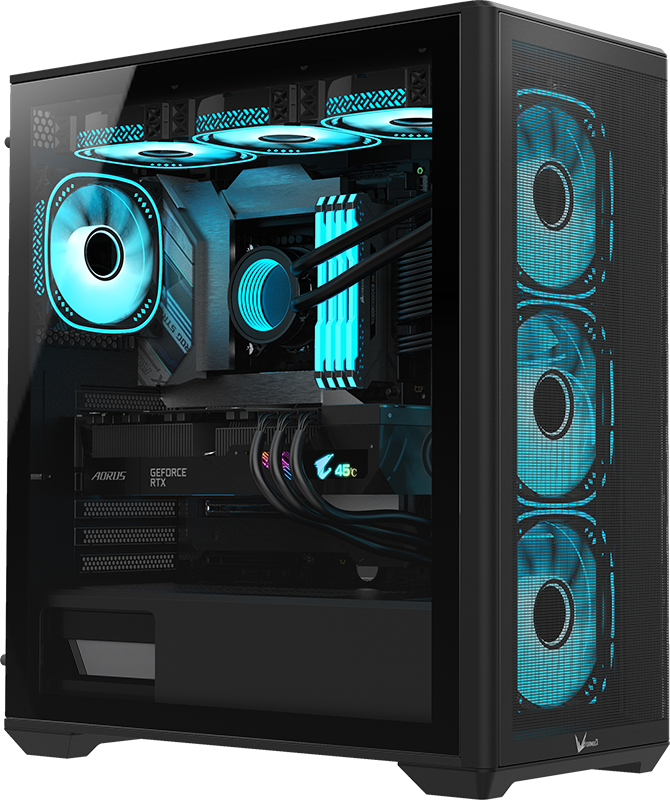

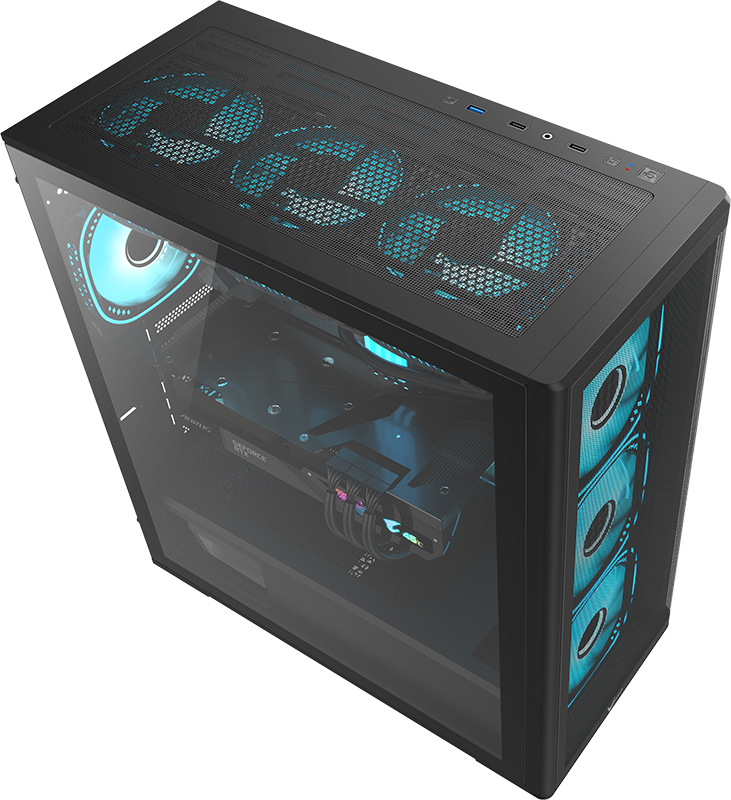

Black

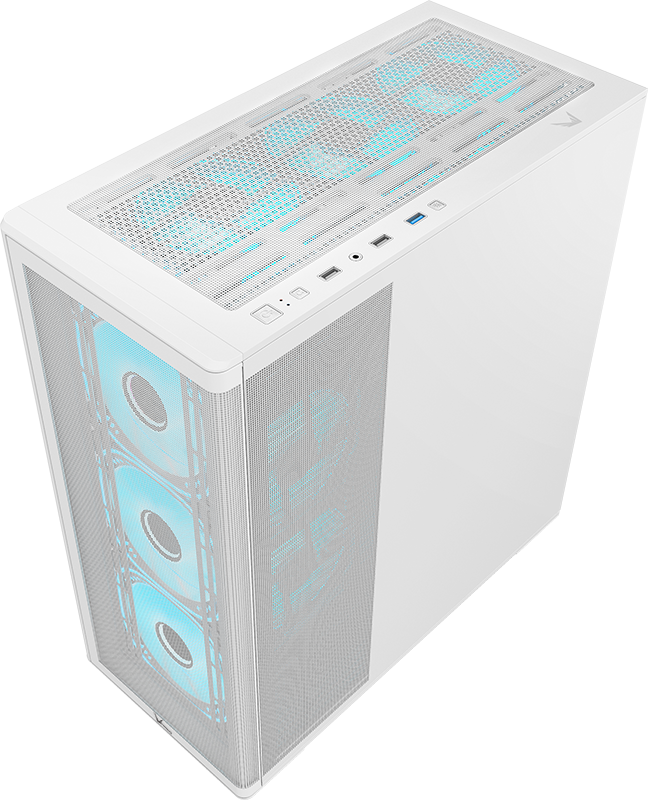

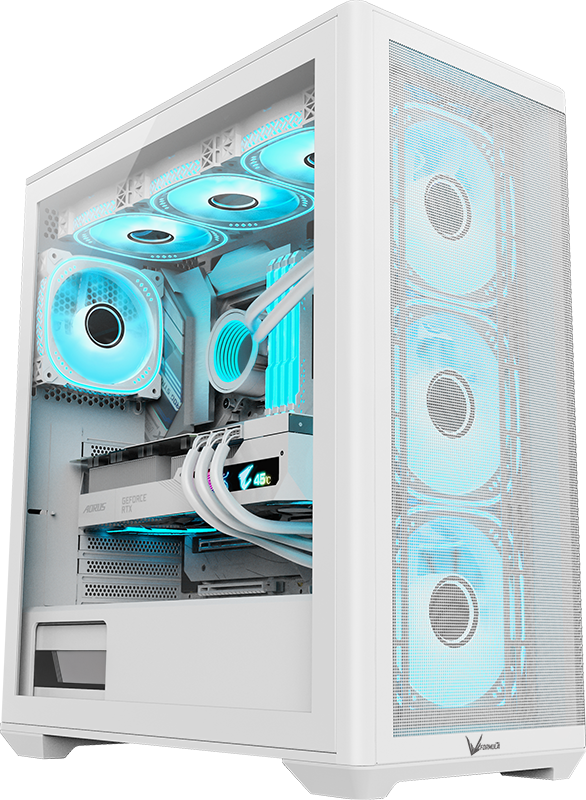

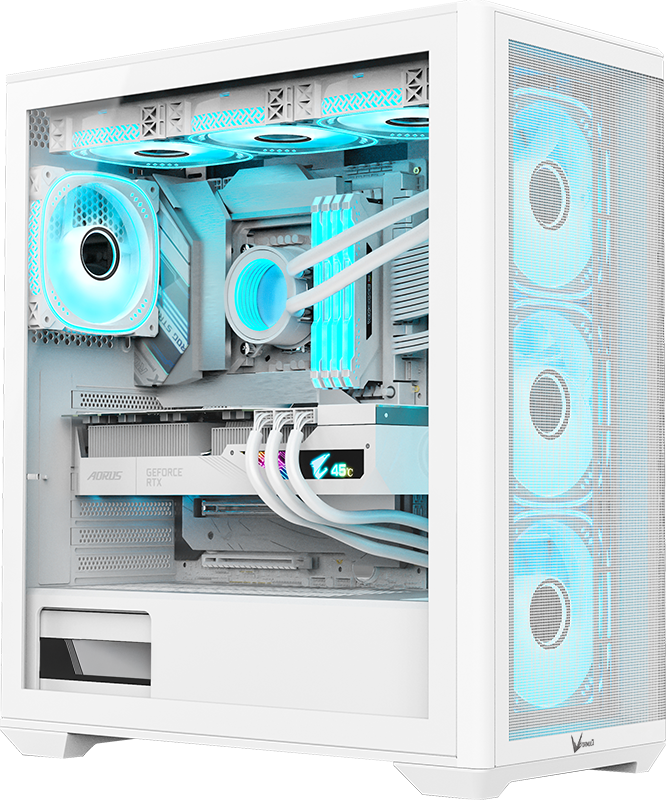

White
section-0 section-1 section-2 section-3 section-4 section-5

Specifications

    • Model AIR POWER G5 PLUS
      Case Type Mid Tower
      Color Black | White

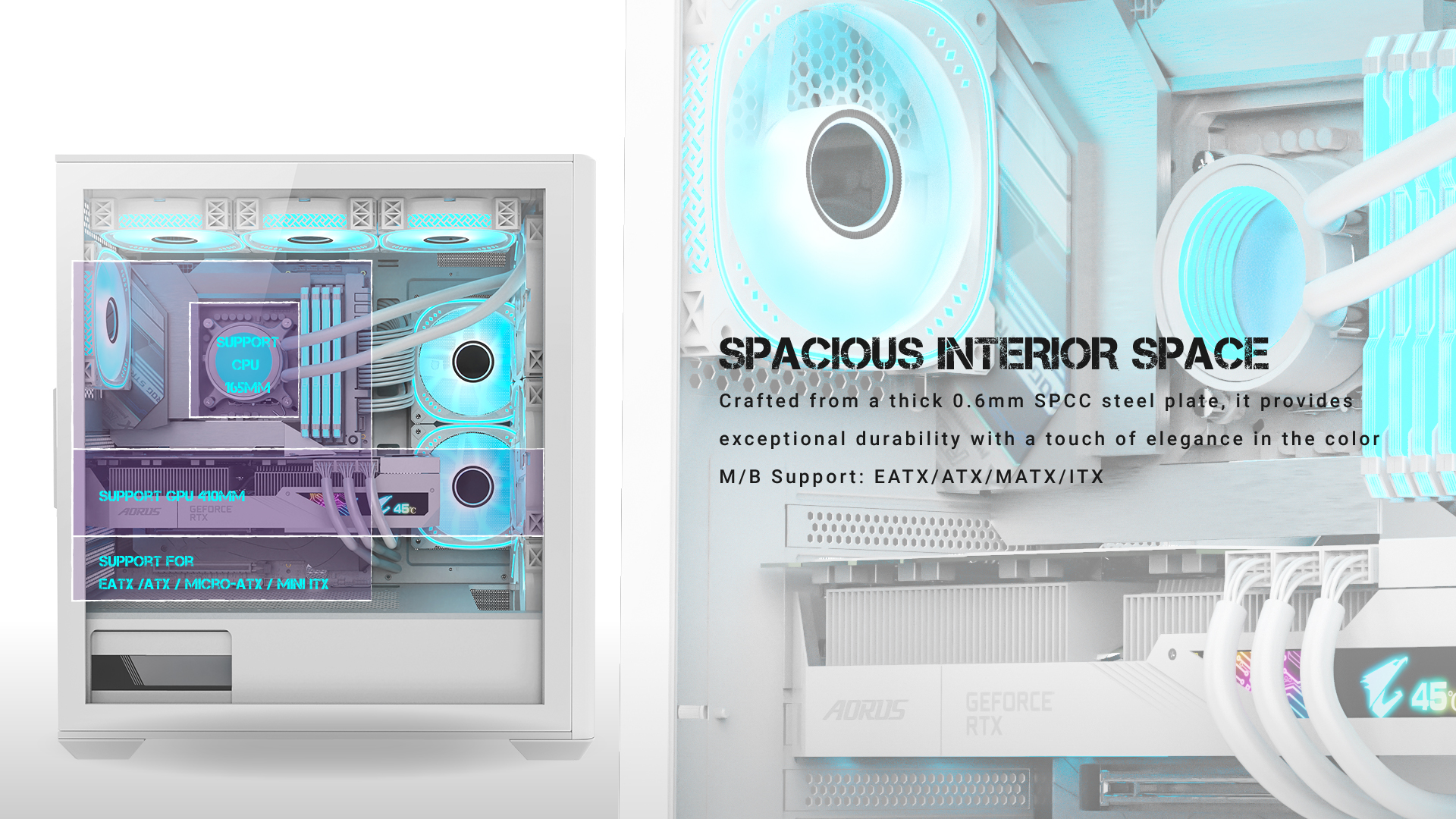

      Body Material SPCC
      Steel Thickness 0.6mm
      Motherboards EATX/ATX/micro ATX/mini-ITX
      Case Dimensions 469 x 210 x 485mm

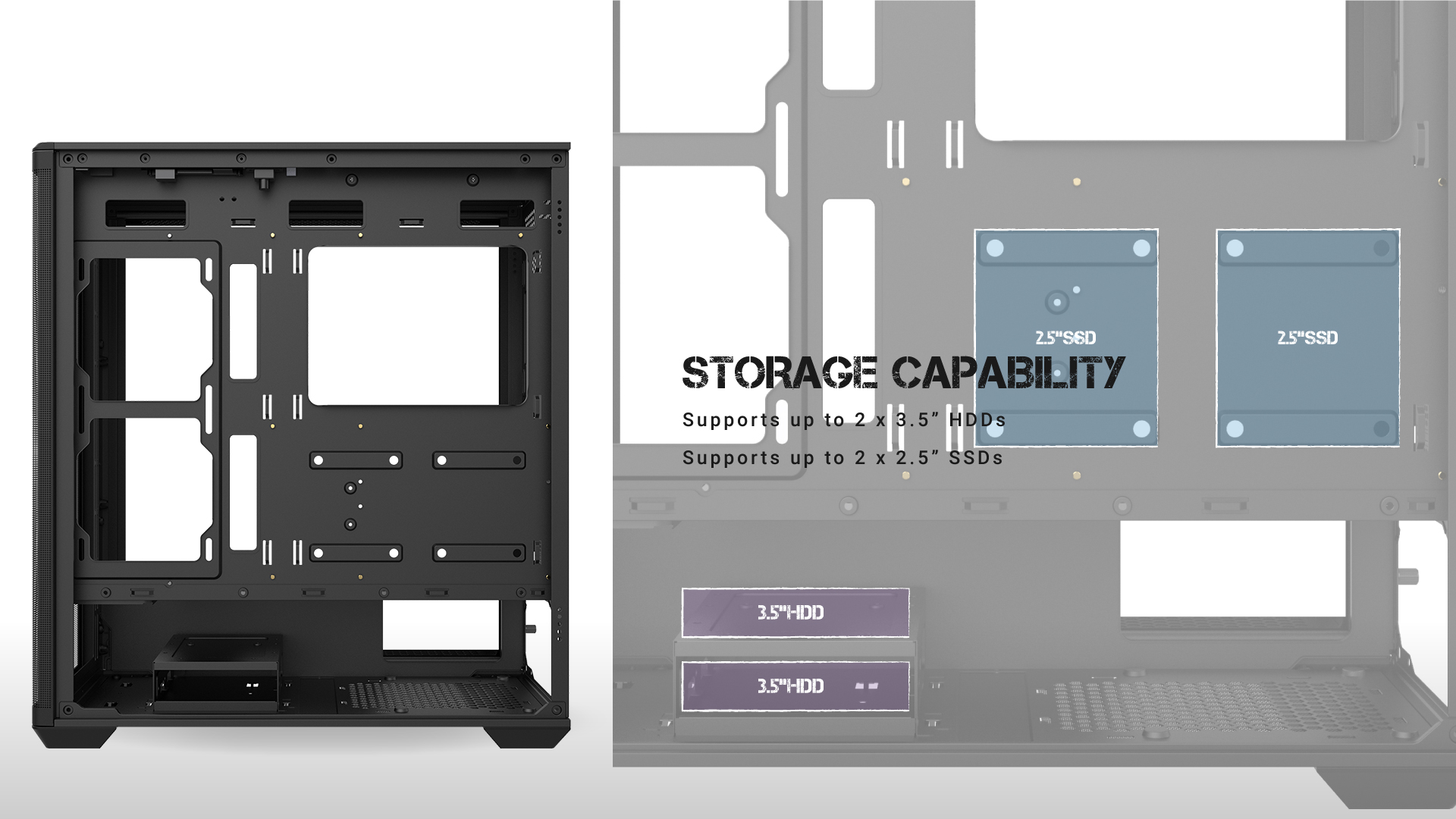

      3.5” Drive Bays 2
      2.5” Drive Bays 2
      Expansion Slots 7
      GPU Clearance Supports GPU up to 410mm
    • CPU Cooler Clearance Supports CPU cooler up to 165mm
      Switch control 1
      Air Cooling Front: 3 x 120mm Fans Max. (3 x 120mm COSMIC Fans Included)
      Rear: 1 x 120mm Fans Max. (1 x 120mm COSMIC Fans Included)
      Top: 3 x 120mm Fans Max.
      MB Side Plate: 2 x 120mm Fans Max.

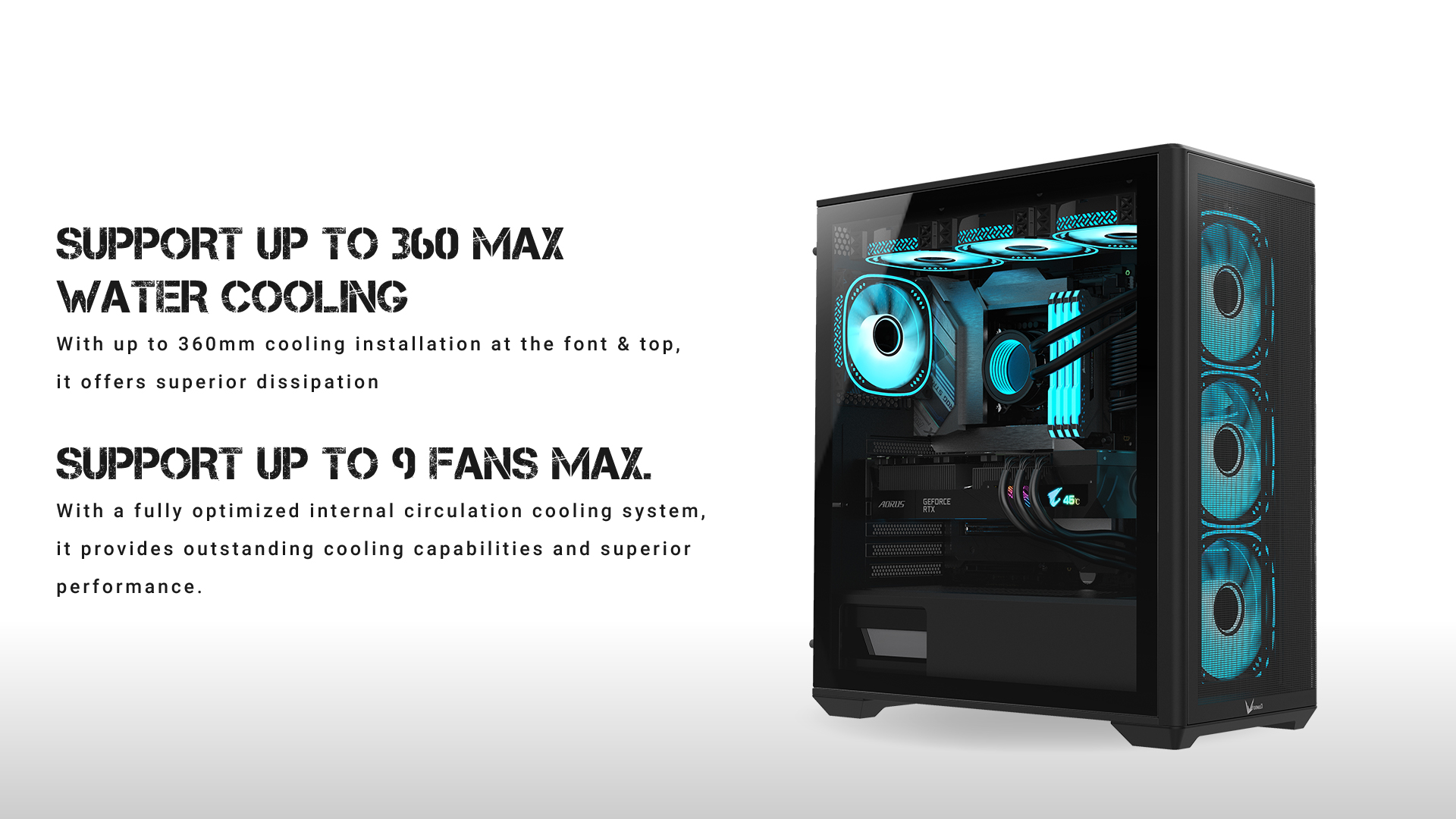

      Liquid Cooling Front: 360mm Max.
      Rear: 120mm Max.
      Top: 360mm Max.

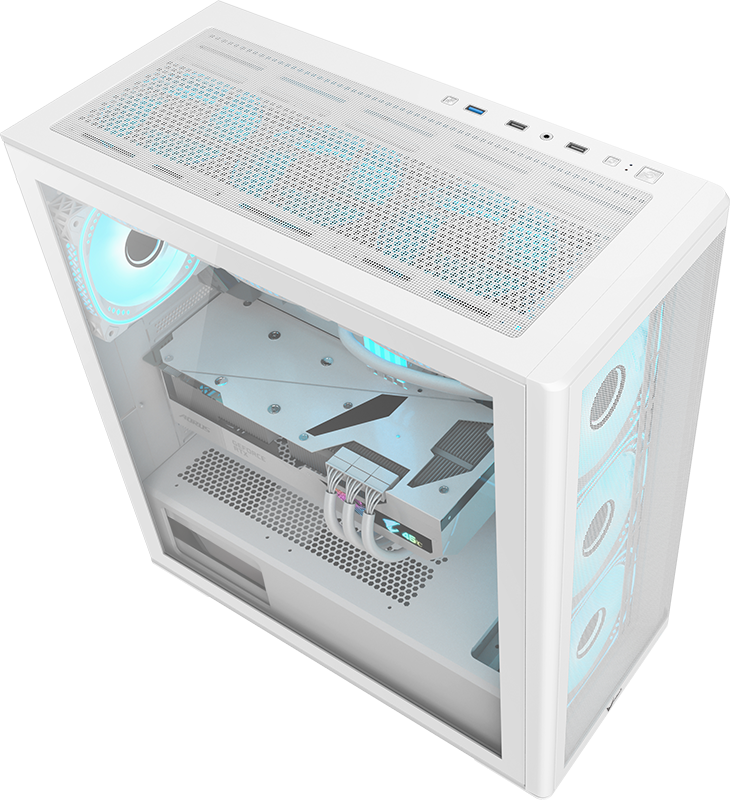

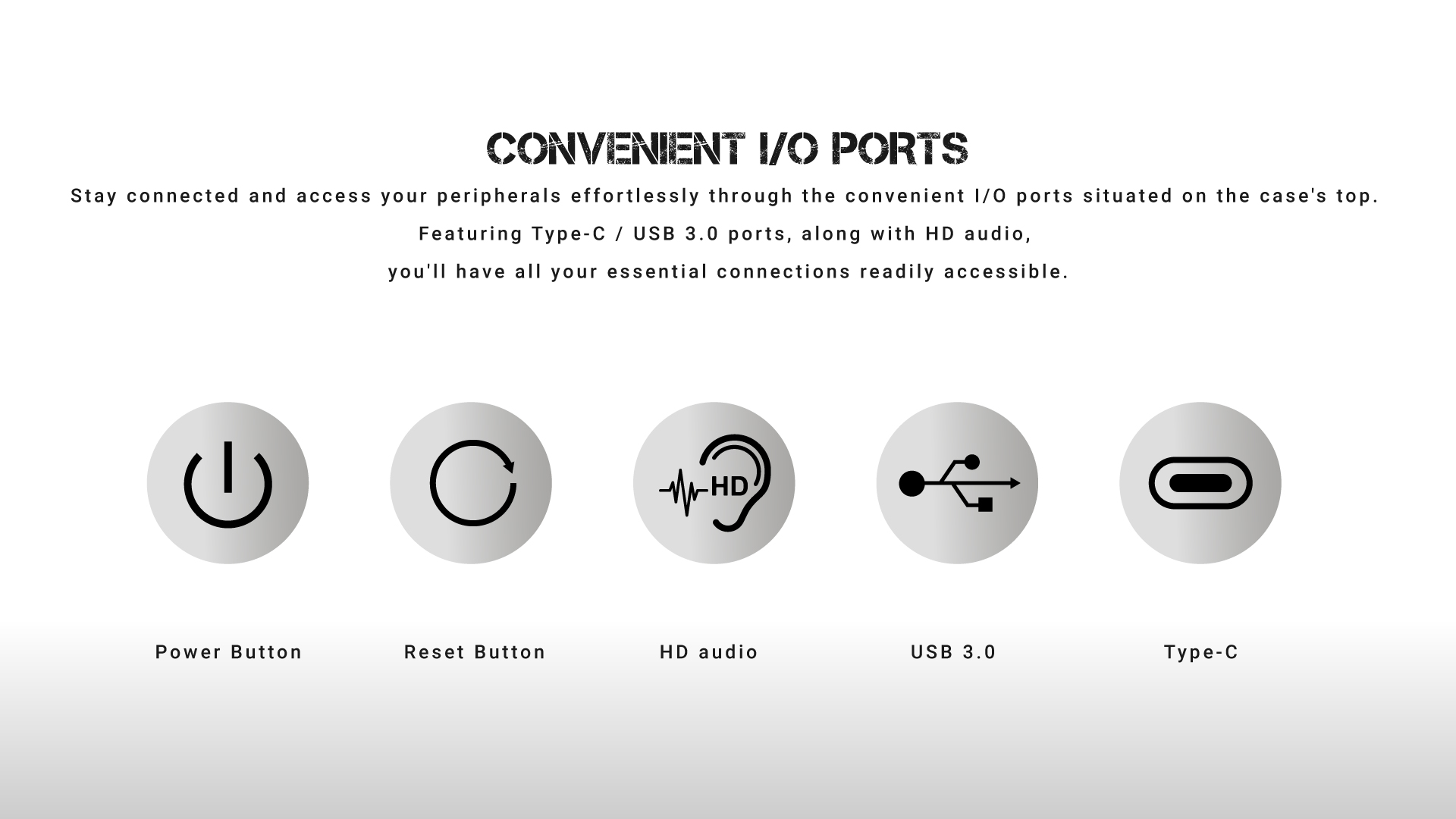

      I/O Ports TYPE-C x 1, USB3.0 x 2, HD Audio
      Power Supply ATX PSU
