AIR POWER G5 EX

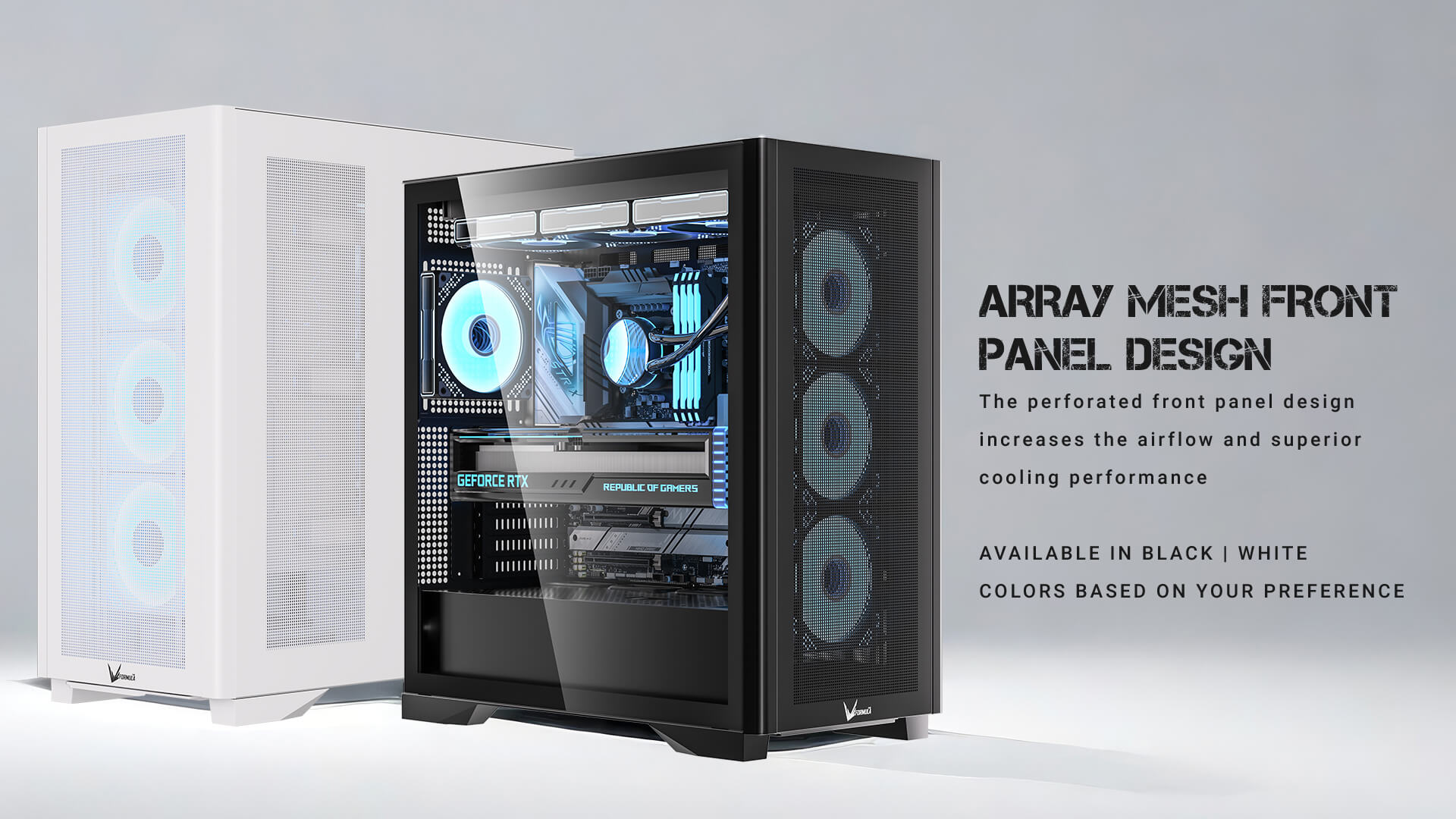

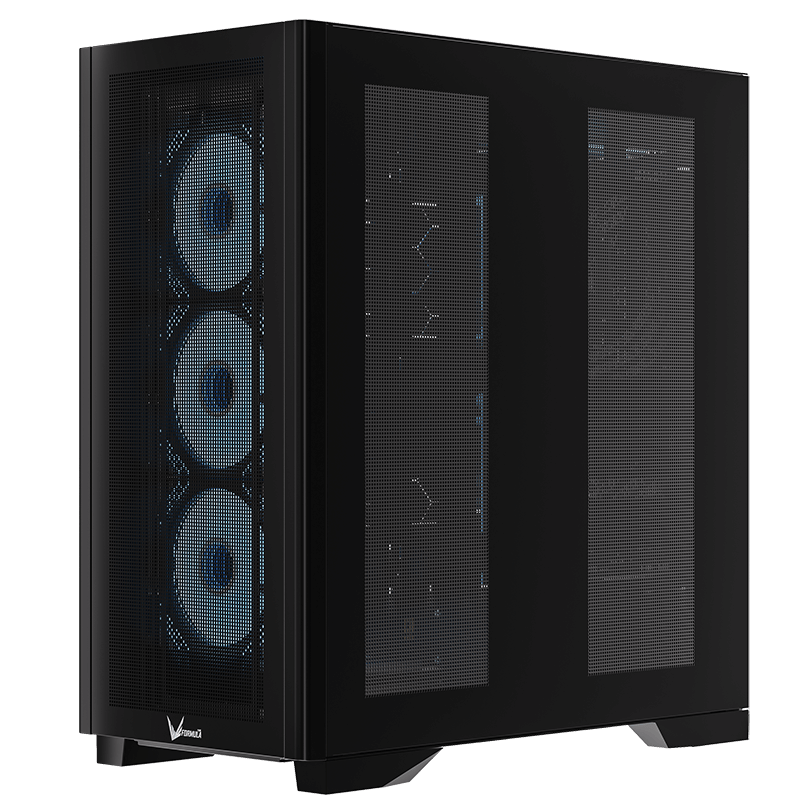

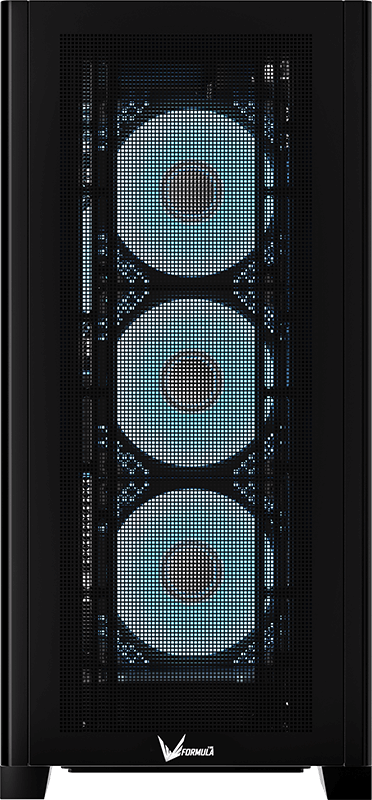

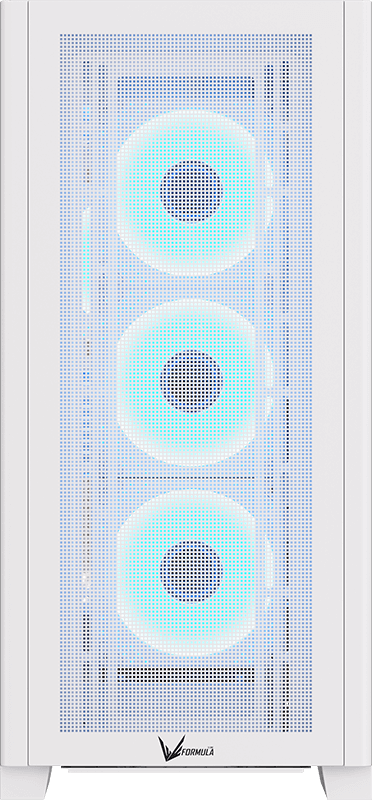

The perforated front panel design increases the airflow and superior cooling performance

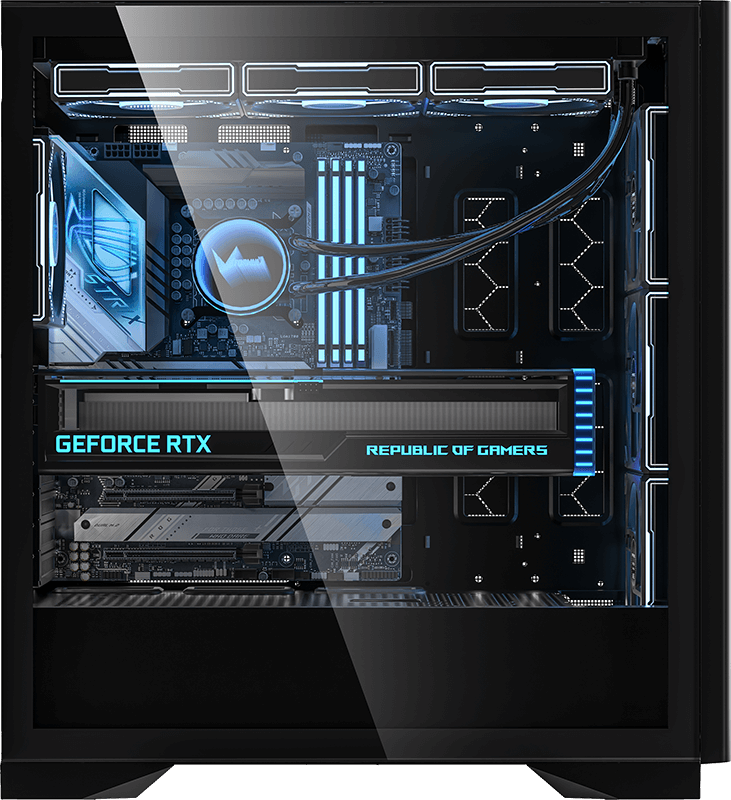

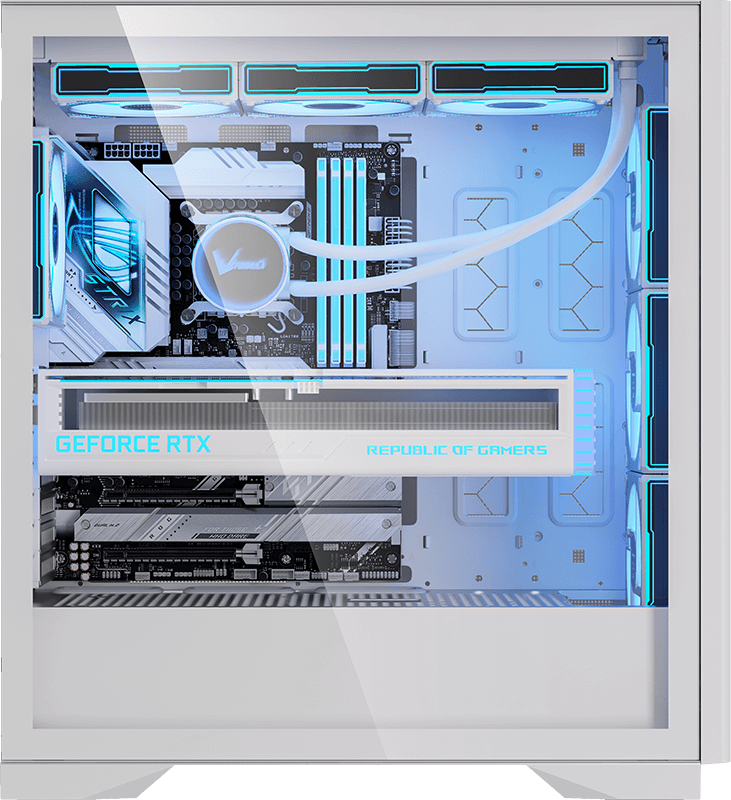

The cooling and hardware layout shown in the product photos is for reference only.
Please check the website’s product specifications for the actual configuration.

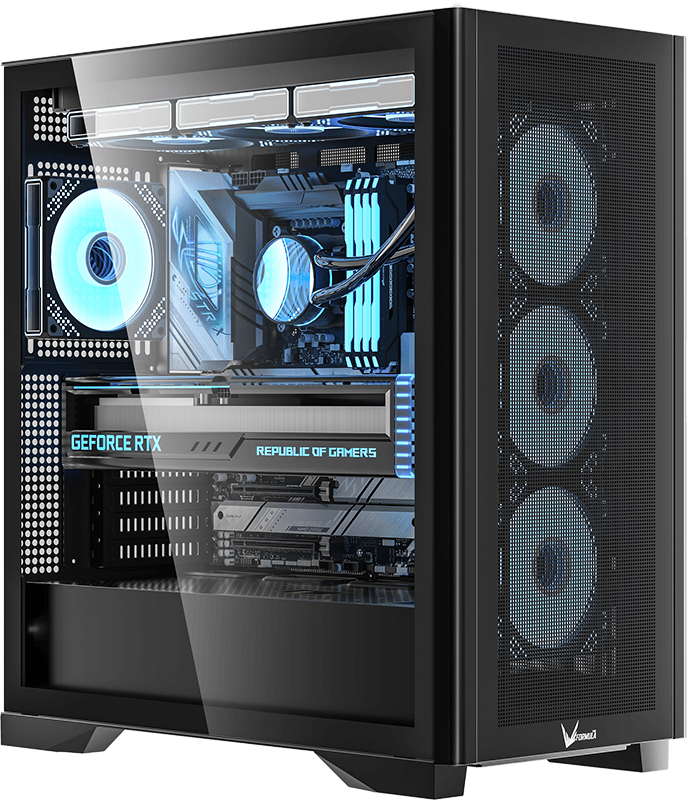

Black

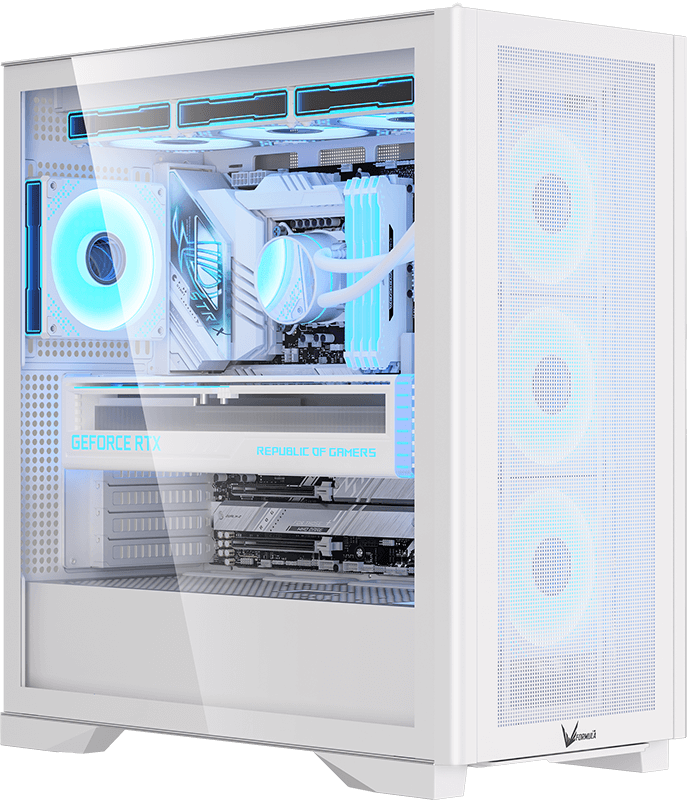

White
section-0 section-1 section-2 section-3 section-4 section-5 section-6 section-7

Specifications

    • Model AIR POWER G5 EX
      Case Type Mid Tower
      Color Black | White

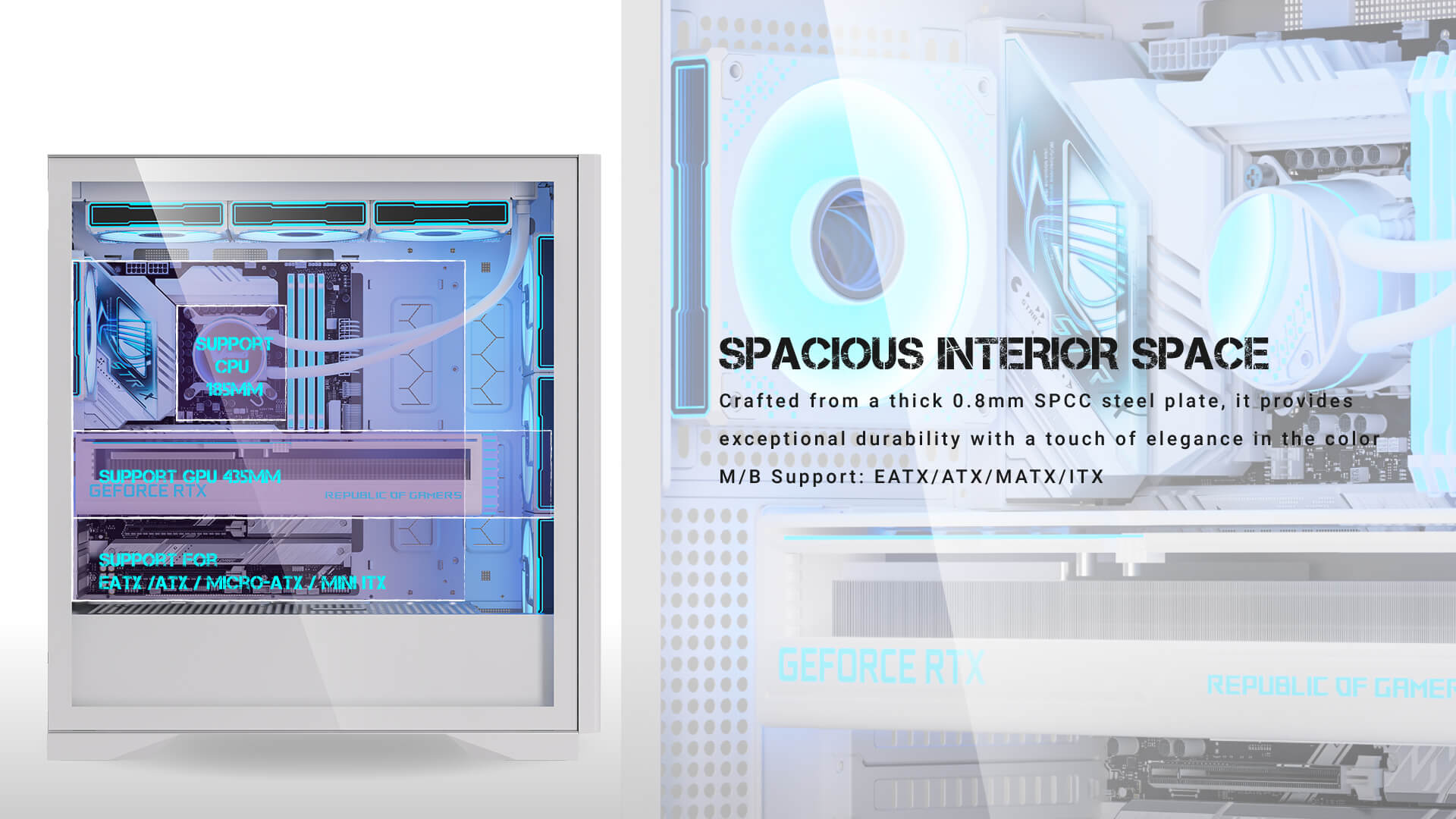

      Body Material SPCC
      Steel Thickness 0.8mm

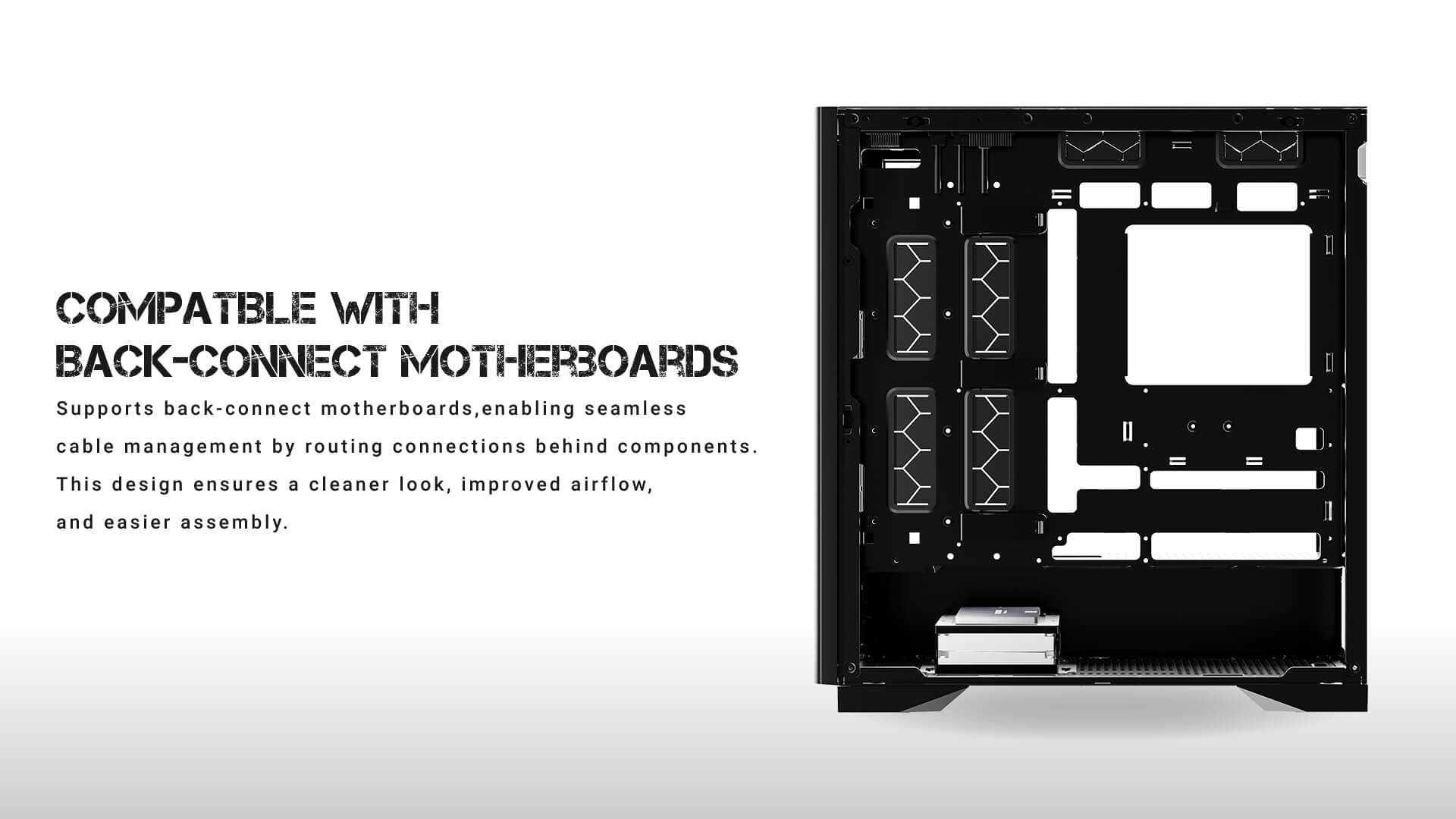

      Motherboards EATX/ATX/micro ATX/mini-ITX
      Case Dimensions 475 x 235 x 501mm

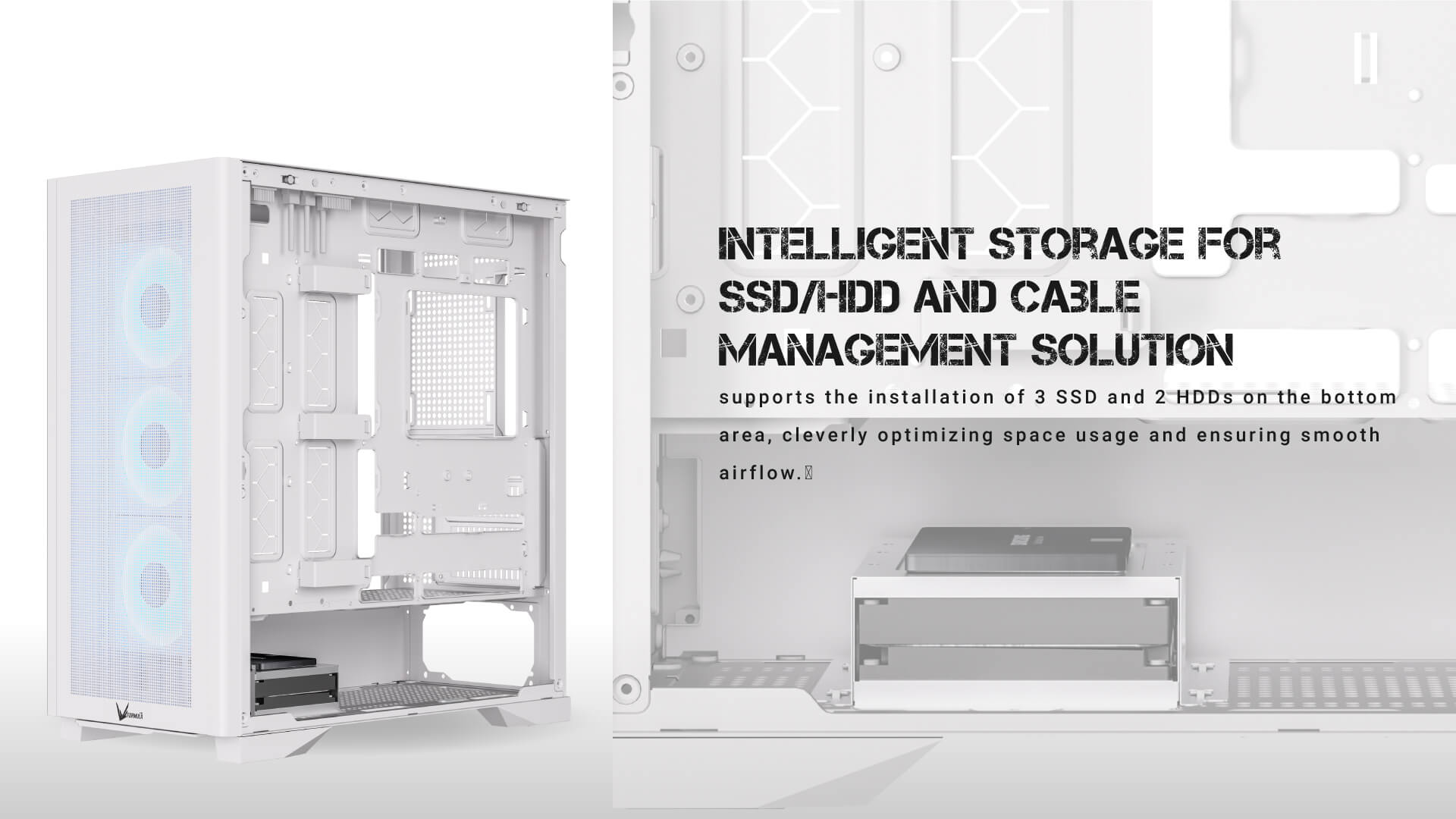

      3.5” Drive Bays 2
      2.5” Drive Bays 3
    • Expansion Slots 7
      GPU Clearance Supports GPU up to 435mm
      CPU Cooler Clearance Supports CPU cooler up to 185mm
      Switch control 1
      Air Cooling Front: 3 x 120mm Fan Max.
      (3 x 120mm Cosmic Fans Included)
      Rear: 1 x 120mm Fan Max.
      (1 x 120mm Cosmic Fan Included)

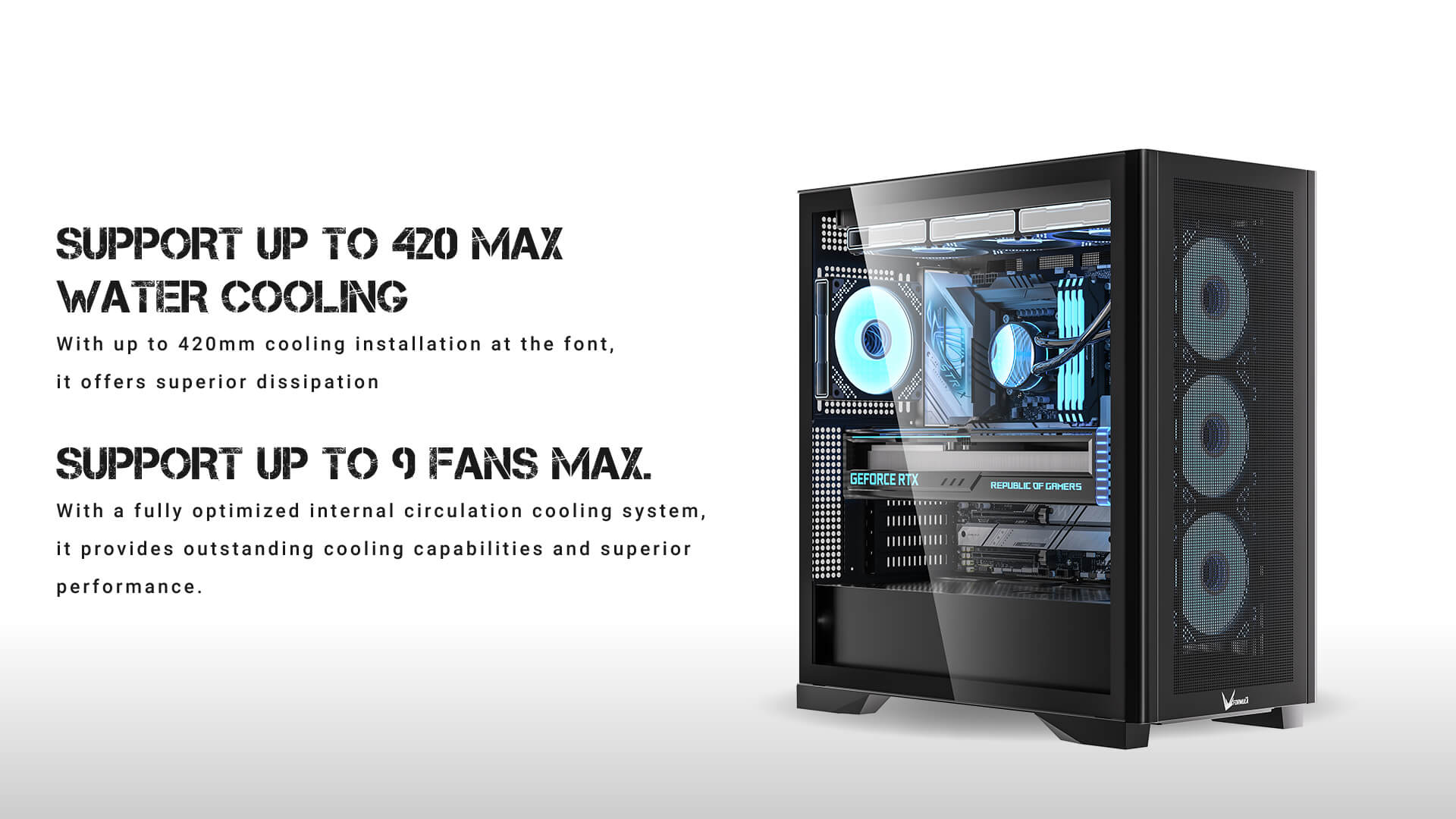

      Liquid Cooling Front: 360/420mm Max.
      Top: 240/360mm Max.

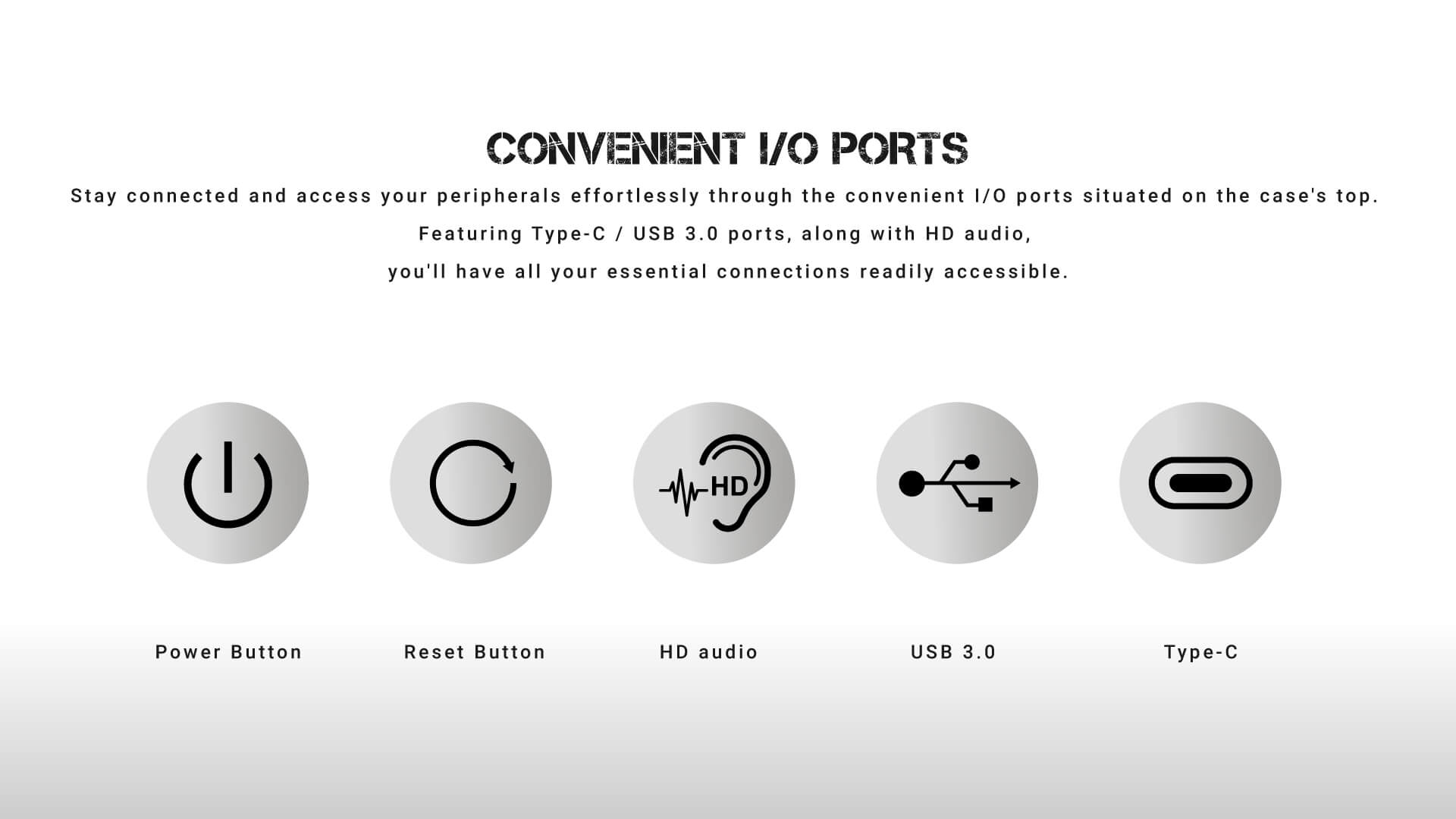

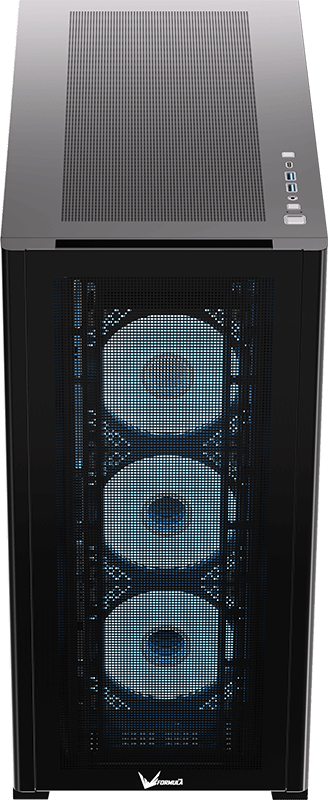

      I/O Ports TYPE-C x 1, USB3.0 x 2, HD Audio
      Power Supply ATX PSU
