AIR MESH G4 | G4 PLUS

AIR MESH G4 | AIR MESH G4 PLUS balances compact design, stylish aesthetics, and essential features for small to mid-range gaming or workstation builds.

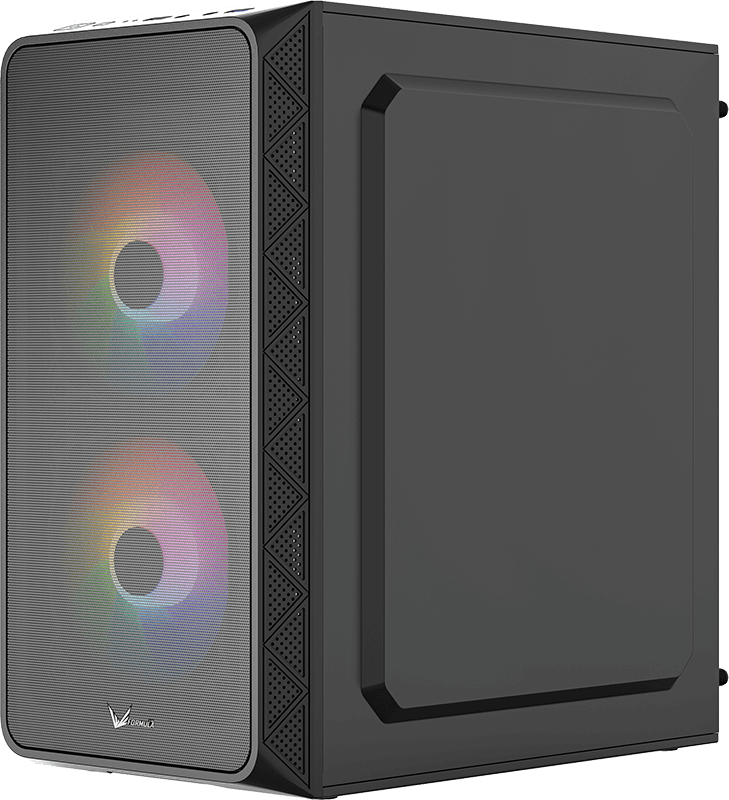

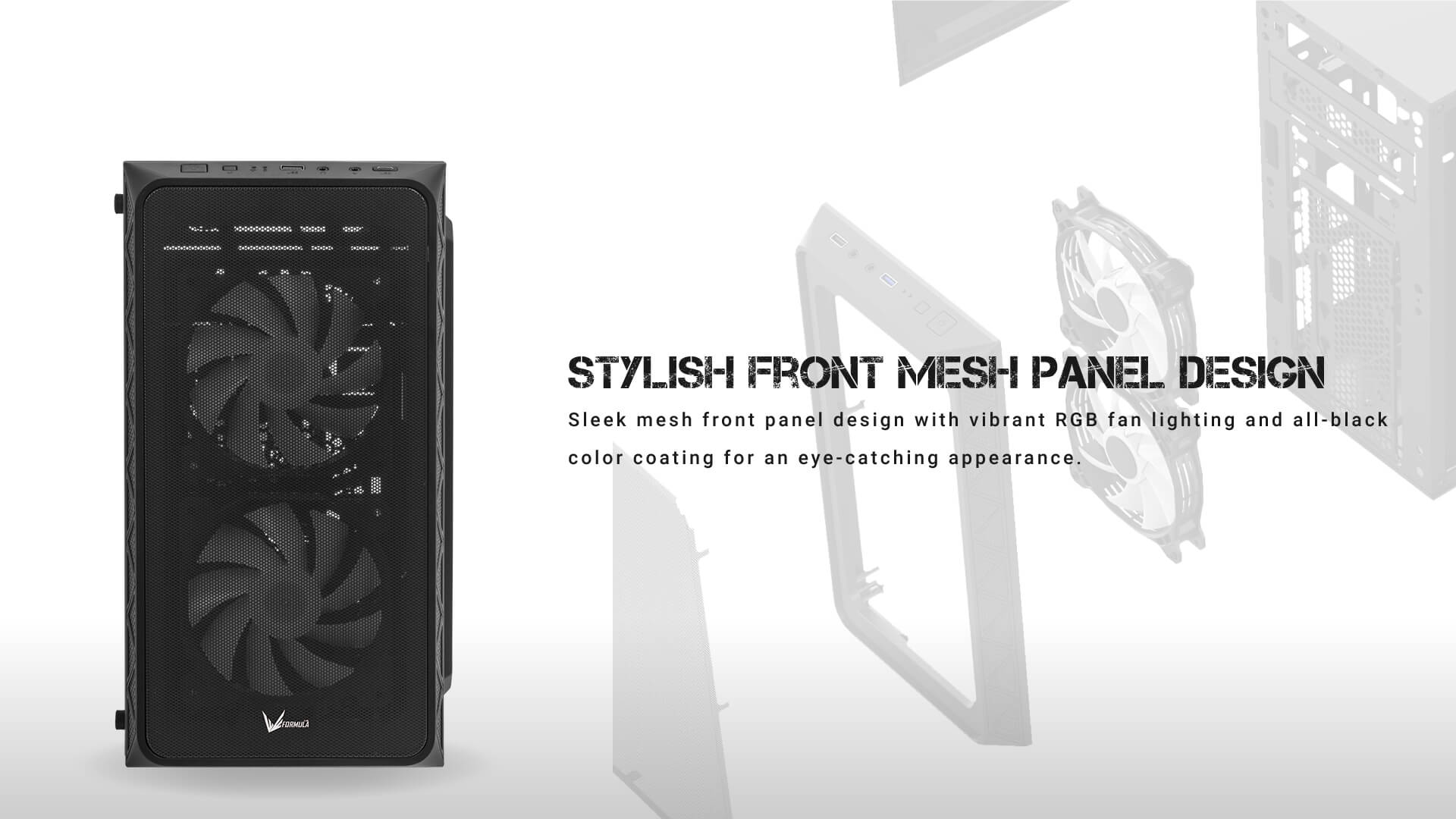

– Stylish Front Mesh Panel Design

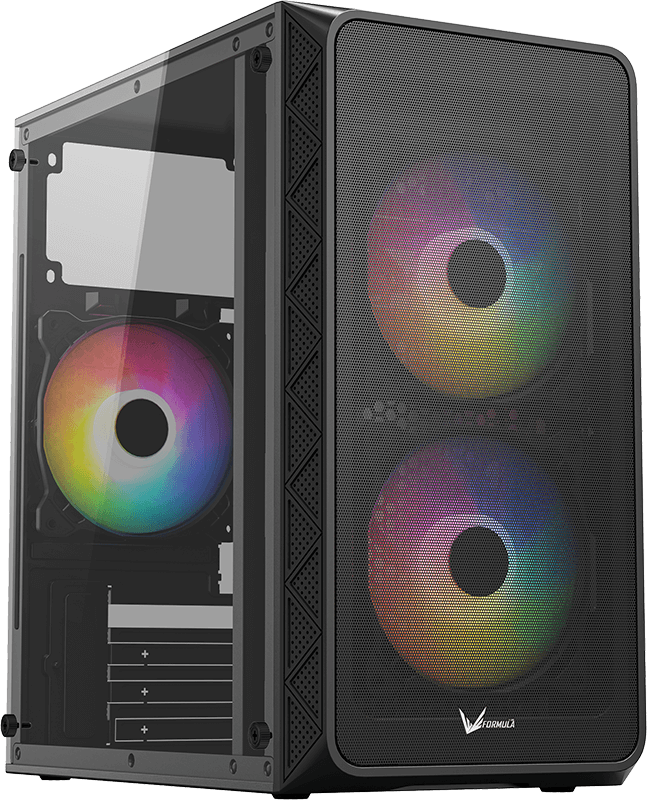

– Pre-Installed RGB Fans for Cooling and Aesthetics}

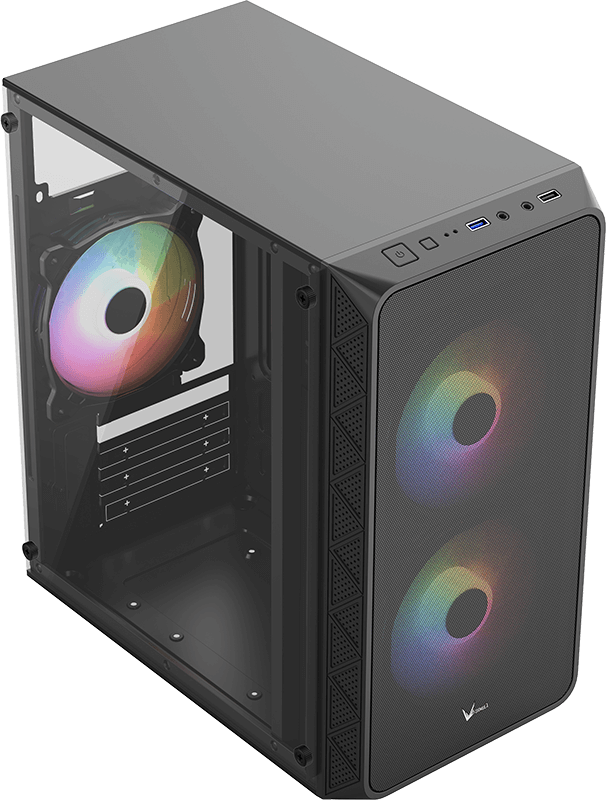

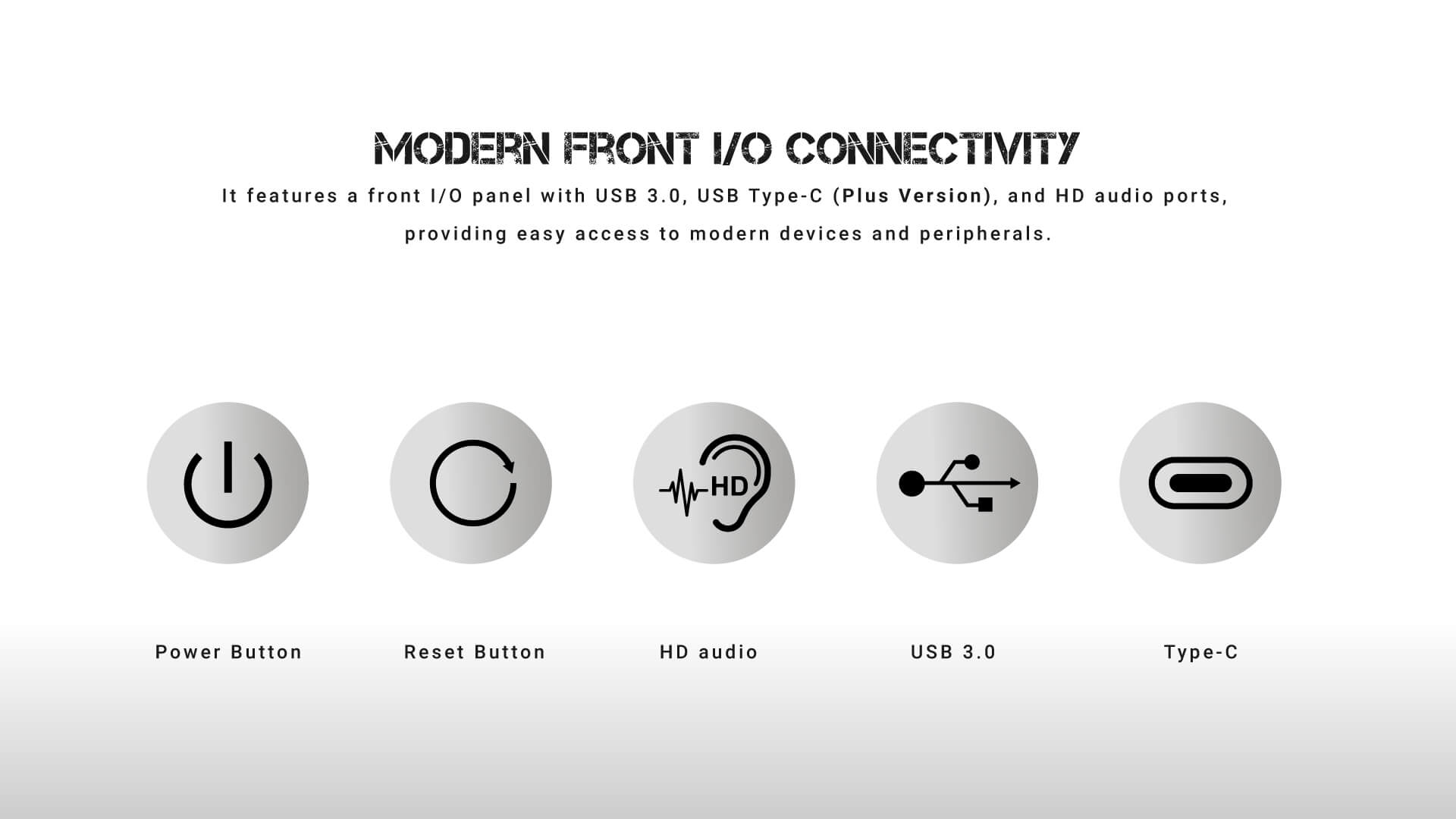

– Modern Front I/O Connectivity

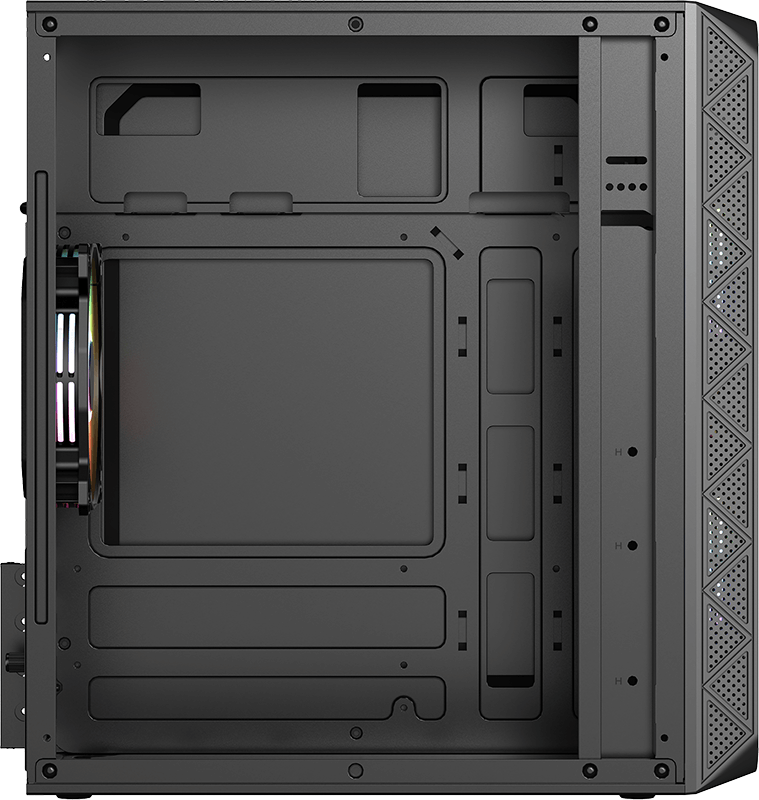

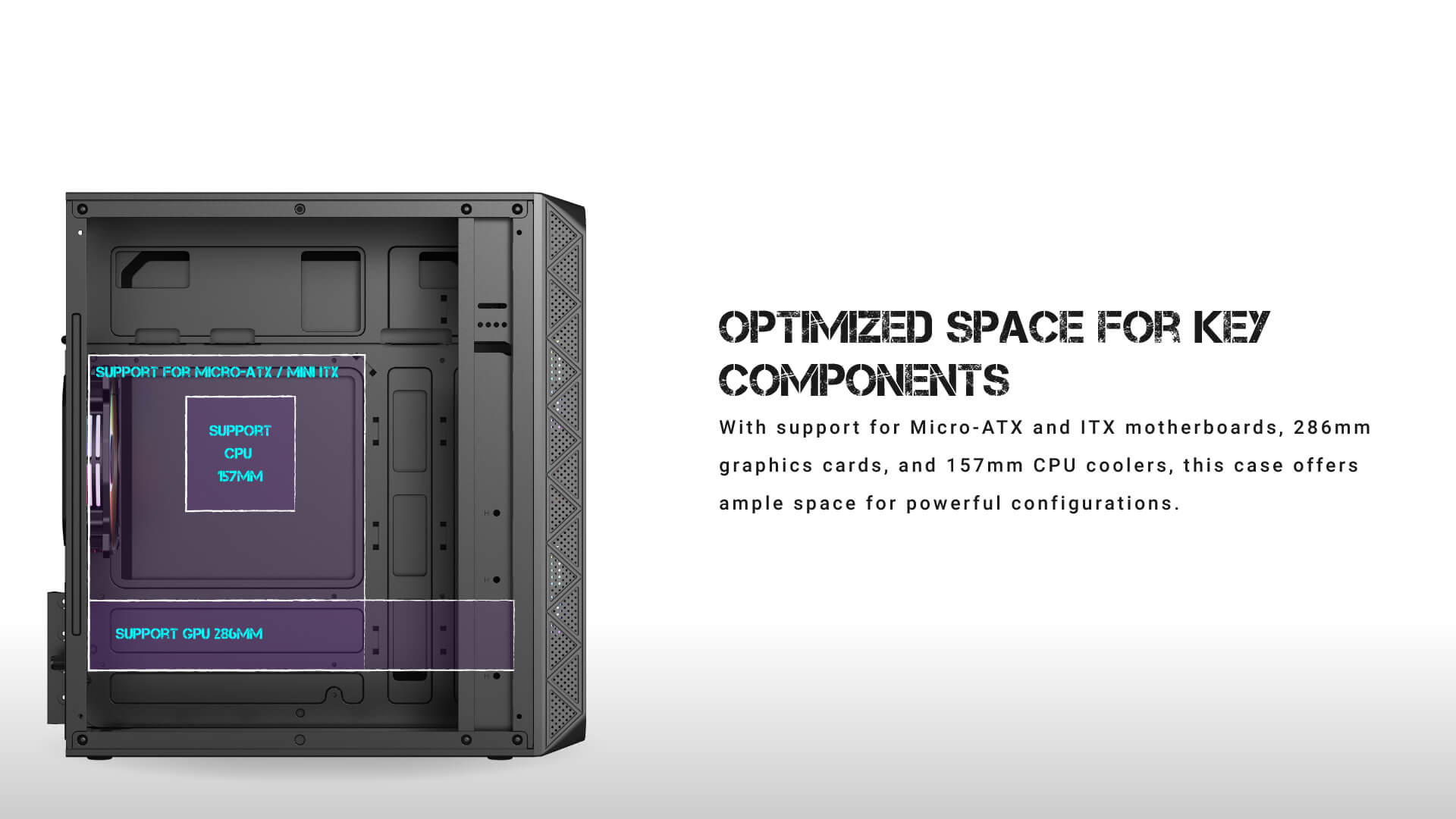

– Optimized Space for Key Components

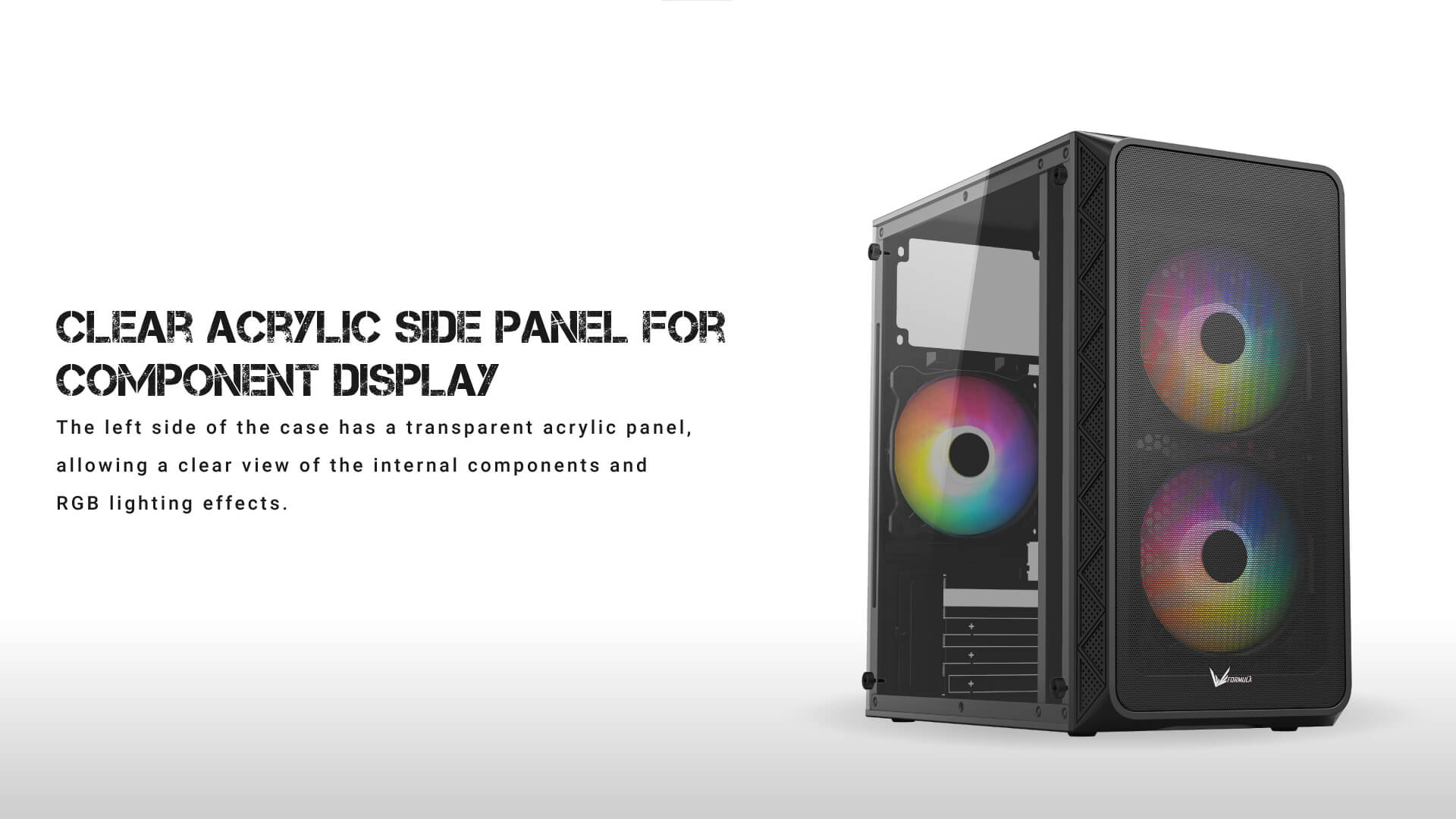

– Clear Acrylic Side Panel for Component Display
The cooling and hardware layout shown in the product photos is for reference only.
Please check the website’s product specifications for the actual configuration.

section-0 section-1 section-2 section-3 section-4

Specifications

    • Model AIR MESH G4 | AIR MESH G4 PLUS
      Case Type Mini Tower
      Color Black
      Body Material SPCC
      Steel Thickness 0.5mm
      Motherboards micro ATX / mini-ITX
      Case Dimensions 290 x 183 x 350mm

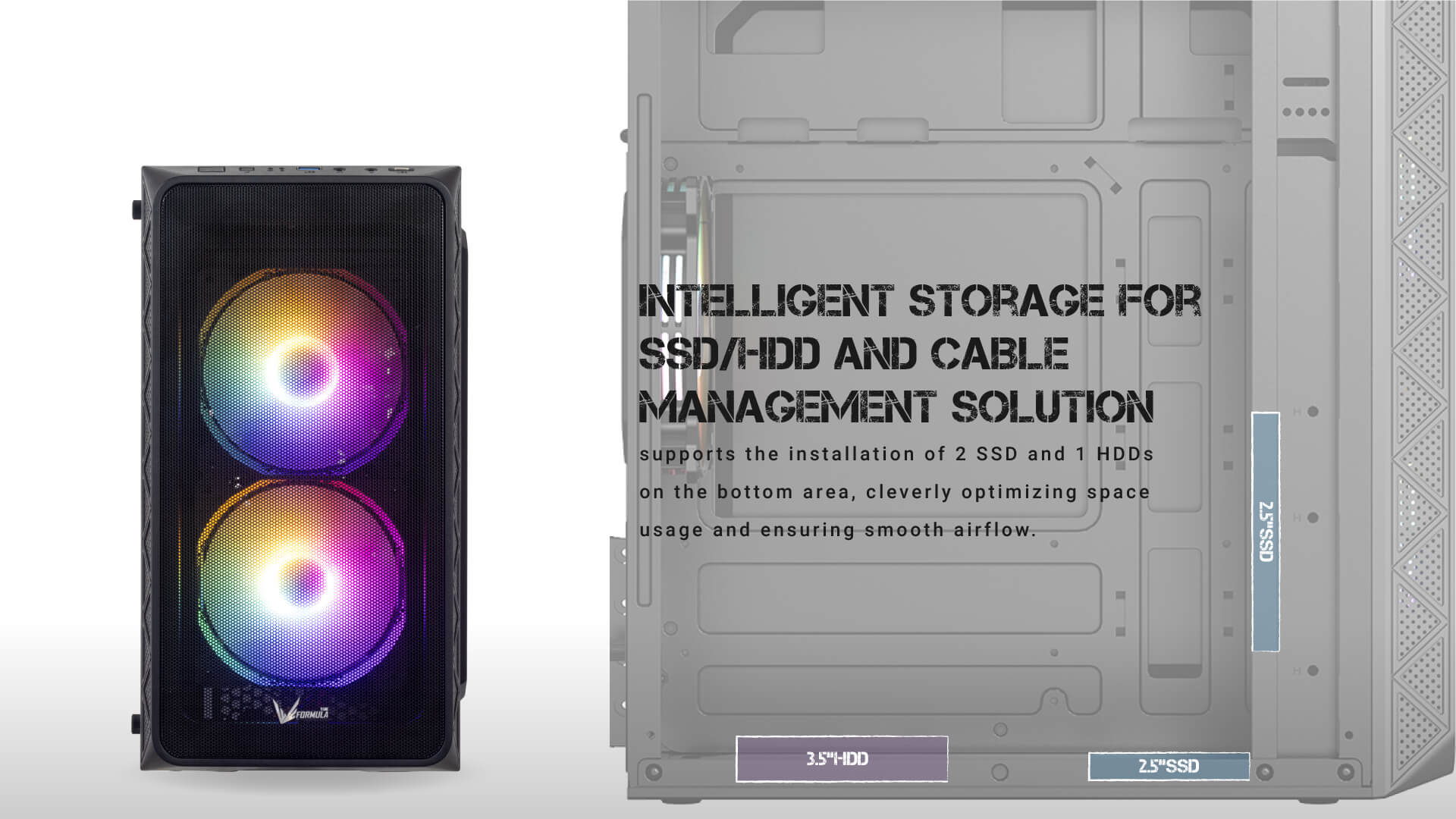

      3.5” Drive Bays 1
      2.5” Drive Bays 2
    • Expansion Slots 4
      GPU Clearance Supports GPU up to 286mm
      CPU Cooler Clearance Supports CPU cooler up to 157mm
      Air Cooling (Air Mesh G4 Version) Rear: 1 x 120mm Max. (1 x 12BK Fan Installed)
      Air Cooling (Air Mesh G4 Version) Front: 2 x 120mm Max.
      Air Cooling (Air Mesh G4 PLUS Version) Rear: 1 x 120mm Max. (1 x COSMIC 12BK FR Fan Installed)
      Air Cooling (Air Mesh G4 PLUS Version) Front: 2 x 120mm Max. (2 x COSMIC 12BK FR Fans Installed)
      Liquid Cooling Front: 120/240mm Max. (Radiator length <296mm)
      I/O Ports (Air Mesh G4 Version) 1 x USB3.0 | 1 x USB2.0 | HD audio
      I/O Ports (Air Mesh G4 PLUS Version) 1 x Type C | 1 x USB3.1 | 1 x USB2.0 | HD audio
      Power Supply ATX PSU
