AIR MESH G3 | G3 PLUS

The Air Mesh G3 is a Micro-ATX case with a sleek, unique wavy mesh front panel made of plastic and steel for optimal airflow, paired with a tempered glass side panel to highlight your build. Despite its compact form, it offers ample space for high-end components, versatile cooling options, and up to four storage drives. With a professional matte black finish and convenient front I/O connectivity, it seamlessly combines functionality and style for gamers and PC enthusiasts.

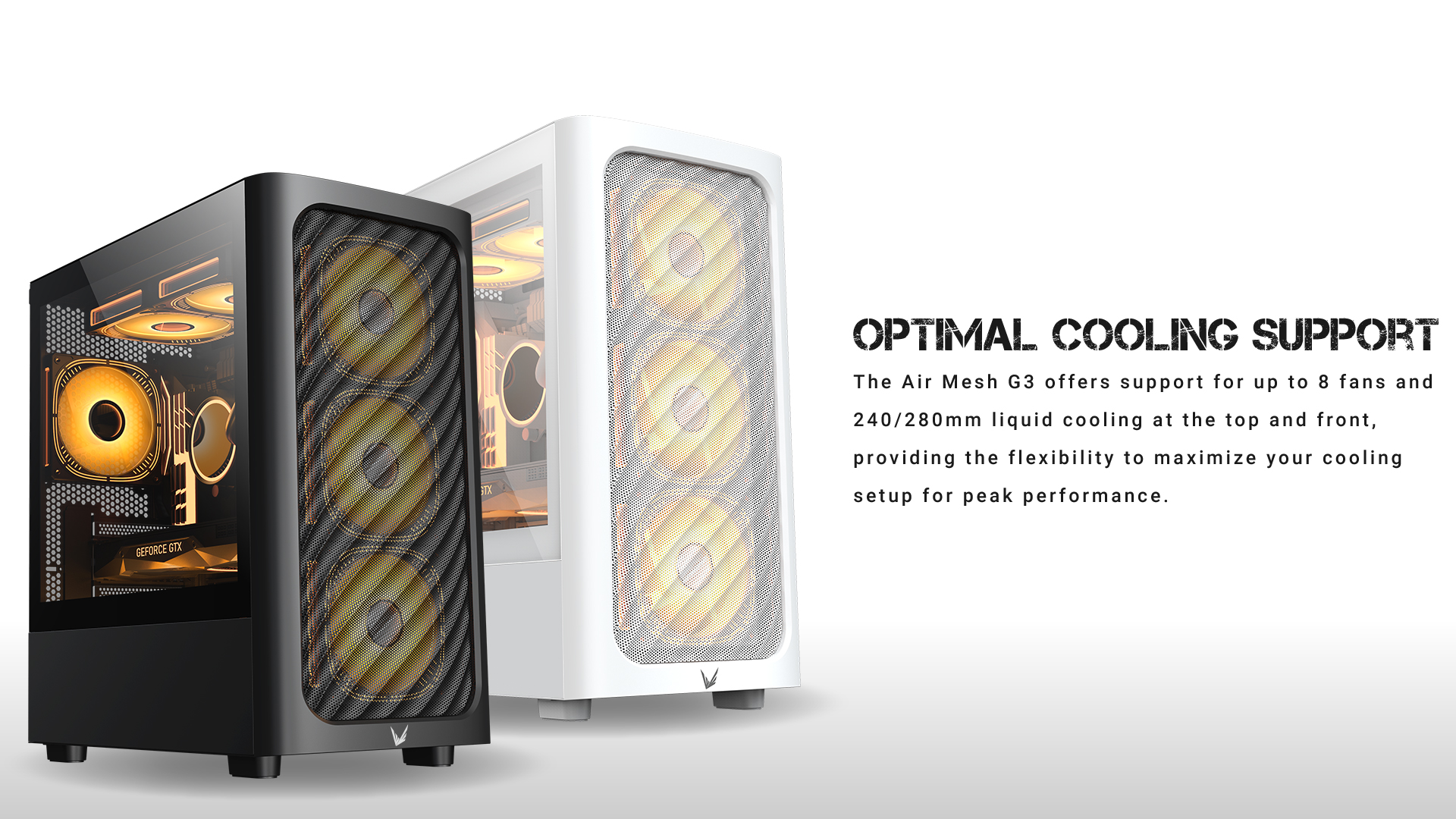

Optimal Cooling Support

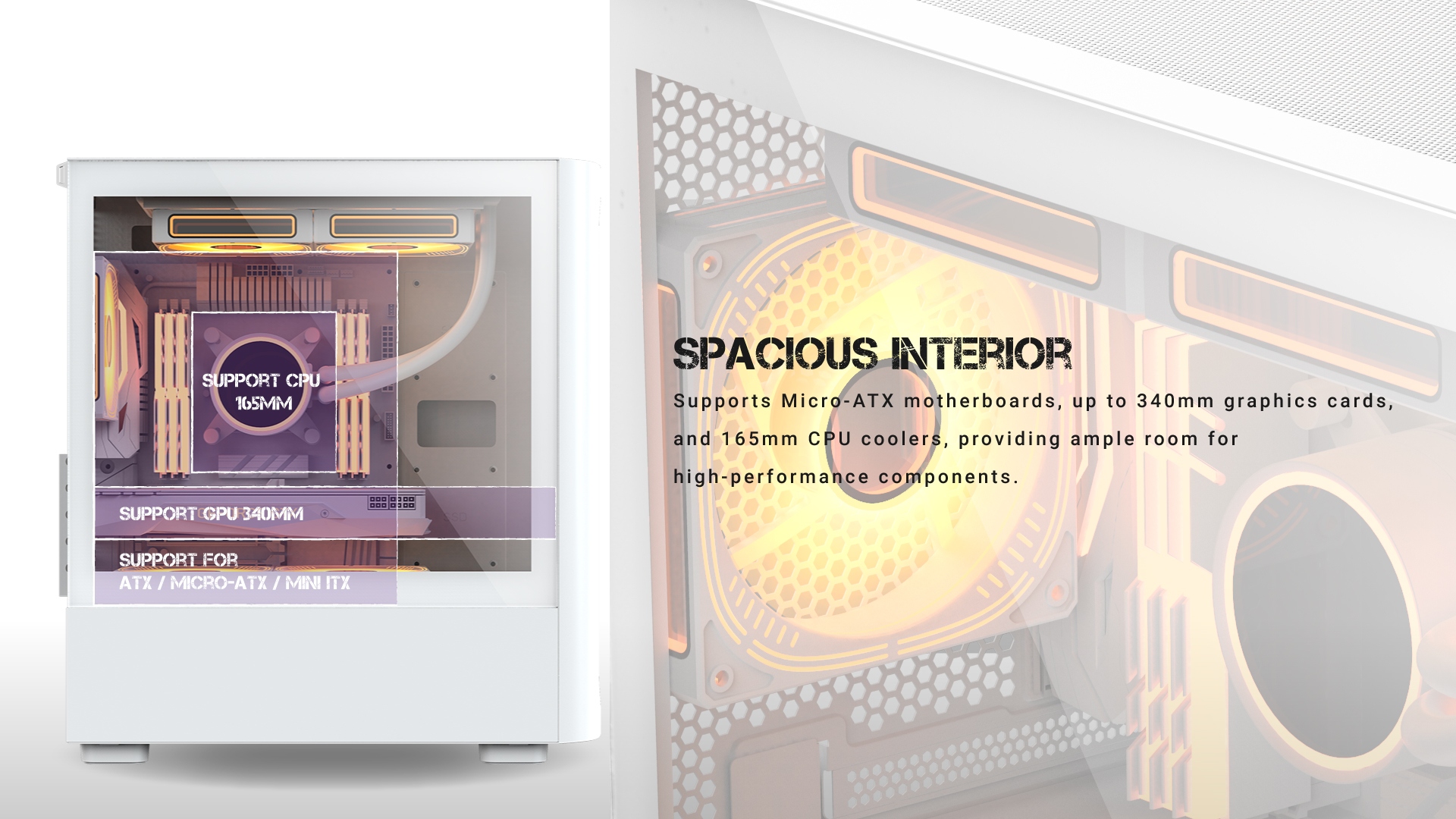

Spacious Interior

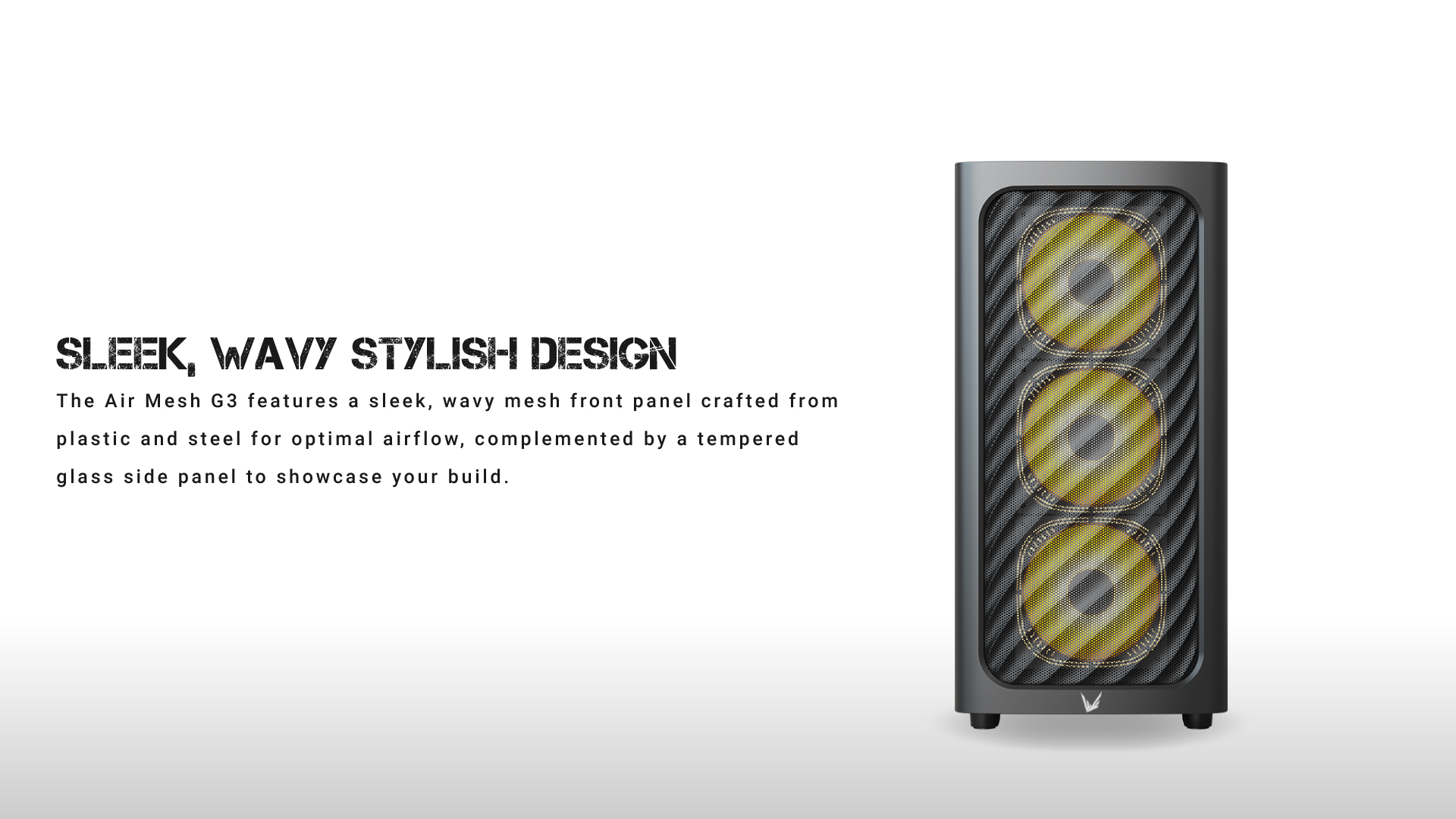

Sleek, wavy stylish design

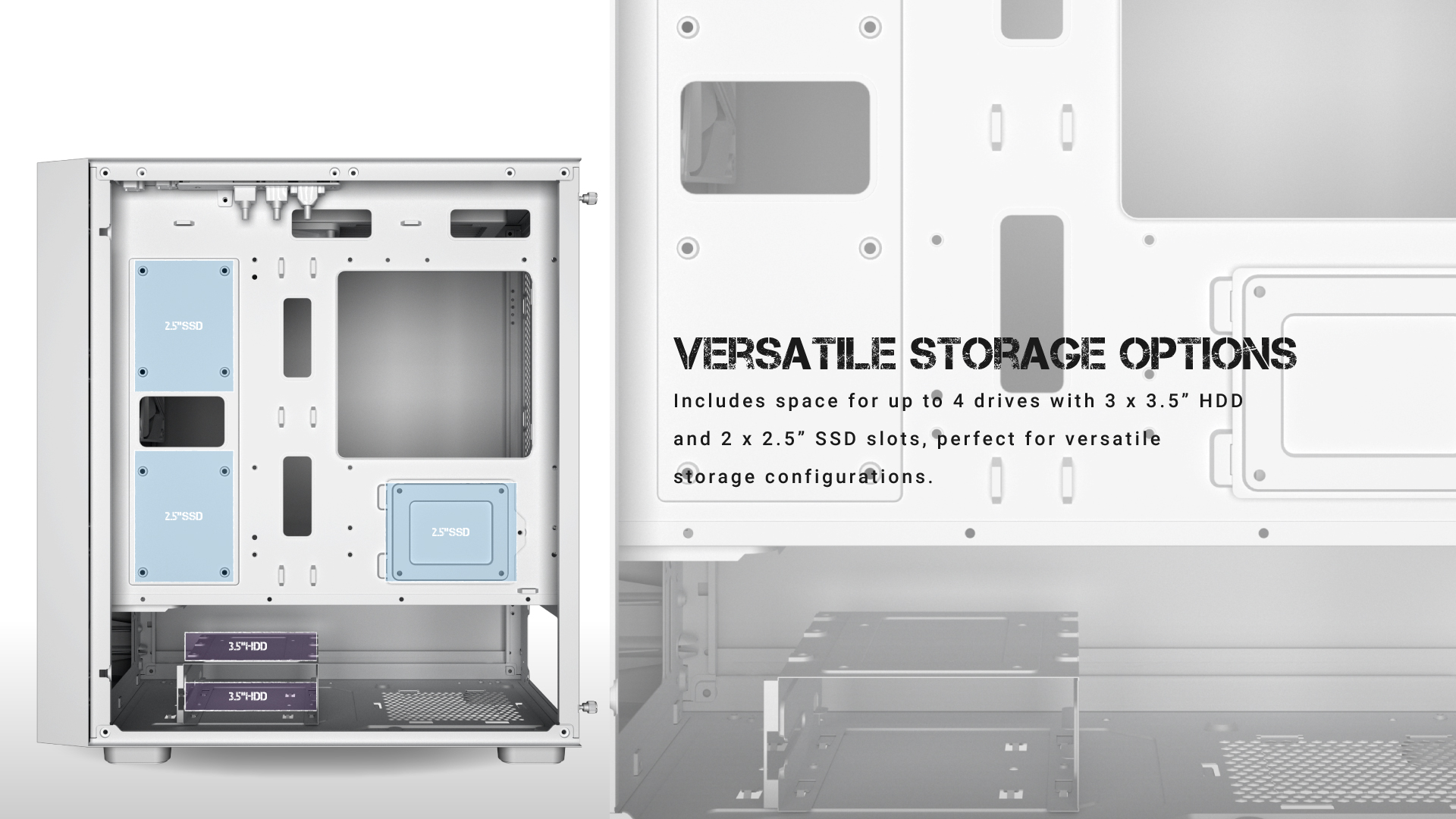

Versatile Storage Options

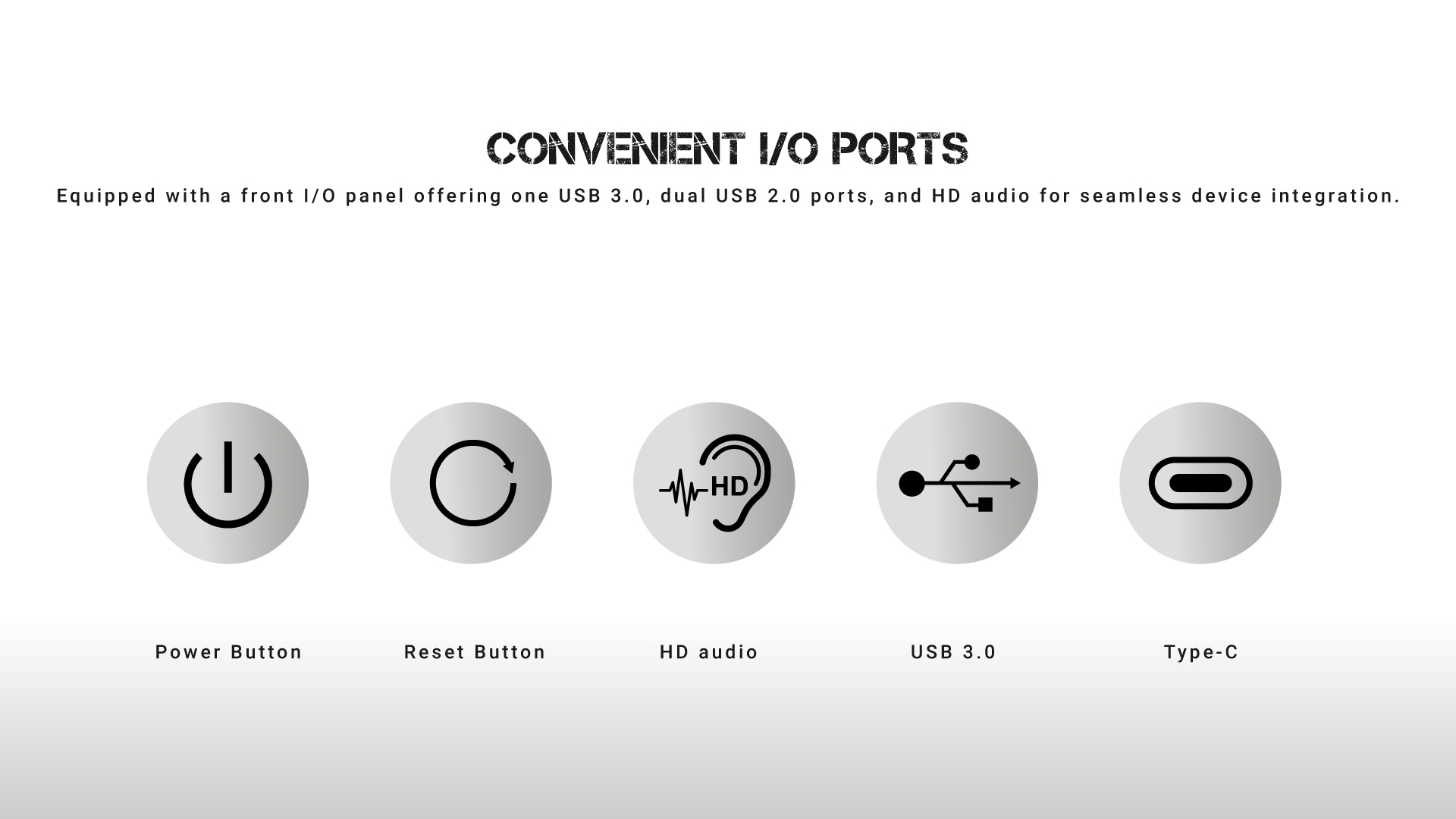

Convenient Connectivity

The cooling and hardware layout shown in the product photos is for reference only.
Please check the website’s product specifications for the actual configuration.

Black

White

Specifications

Model	AIR MESH G3 \| G3 PLUS
Case Type	Mid Tower
Color	Black \| White
Body Material	SPCC
Steel Thickness	0.6mm
Motherboards	micro ATX / mini-ITX
Case Dimensions	398 x 215 x 446mm
3.5” Drive Bays	2
2.5” Drive Bays	3
Expansion Slots	5
GPU Clearance	340mm
CPU Cooler Clearance	165mm
I/O Ports (AIR MESH G3 Version)	1 x USB3.0 \| 2 x USB2.0 \| HD audio
I/O Ports (AIR MESH G3 PLUS Version)	Type-C x 1 \| 2 x USB3.0 \| 1 x USB2.0 \| HD audio

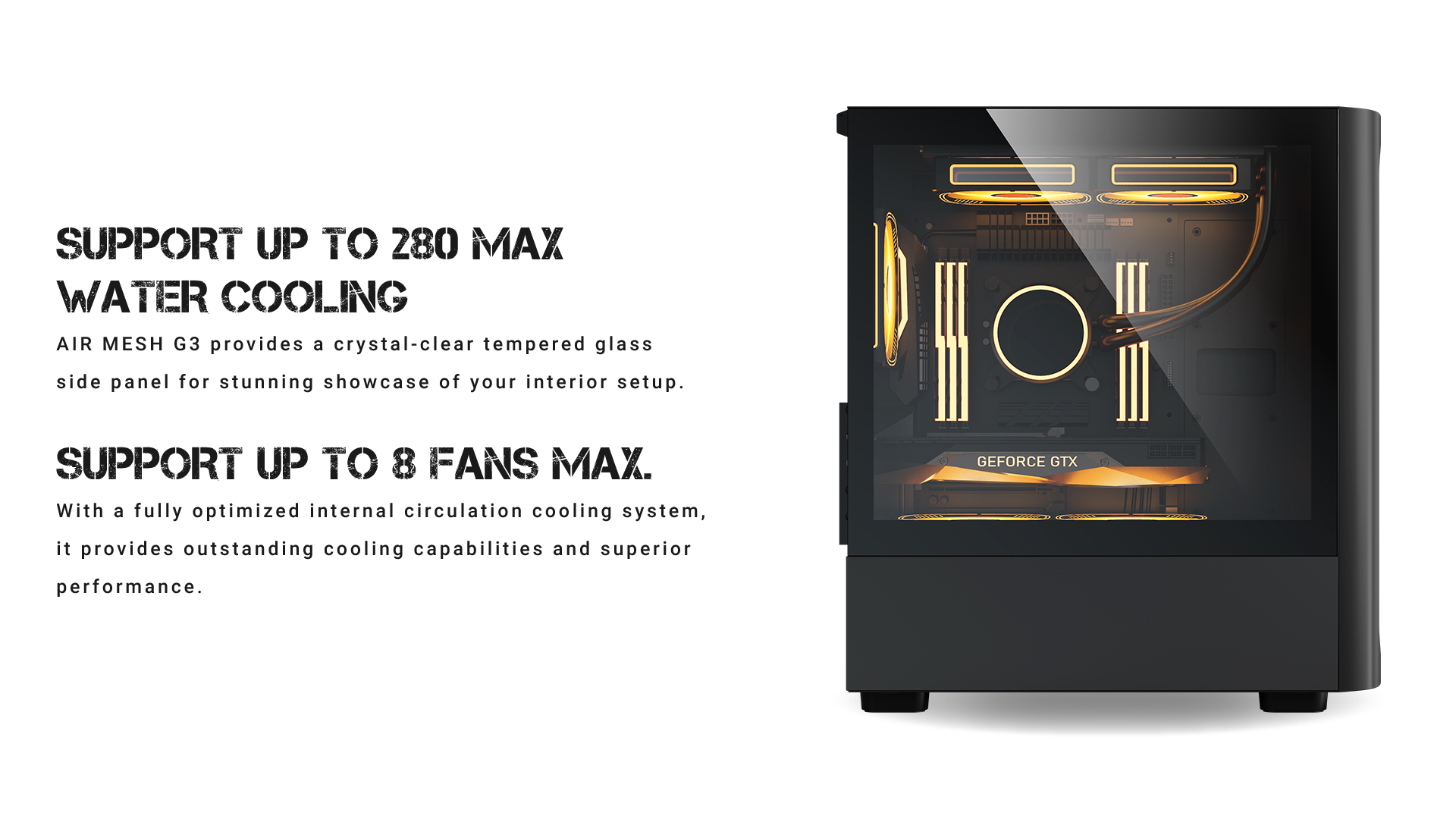

Liquid Cooling	Front: 280mm Max.
	Top: 280mm Max.
Air Cooling
AIR MESH G3	AIR MESH G3 PLUS
Front: 3 x 120mm or 2 x 140mm Max.	Front: 3 x 120mm or 3 x 140mm Max.

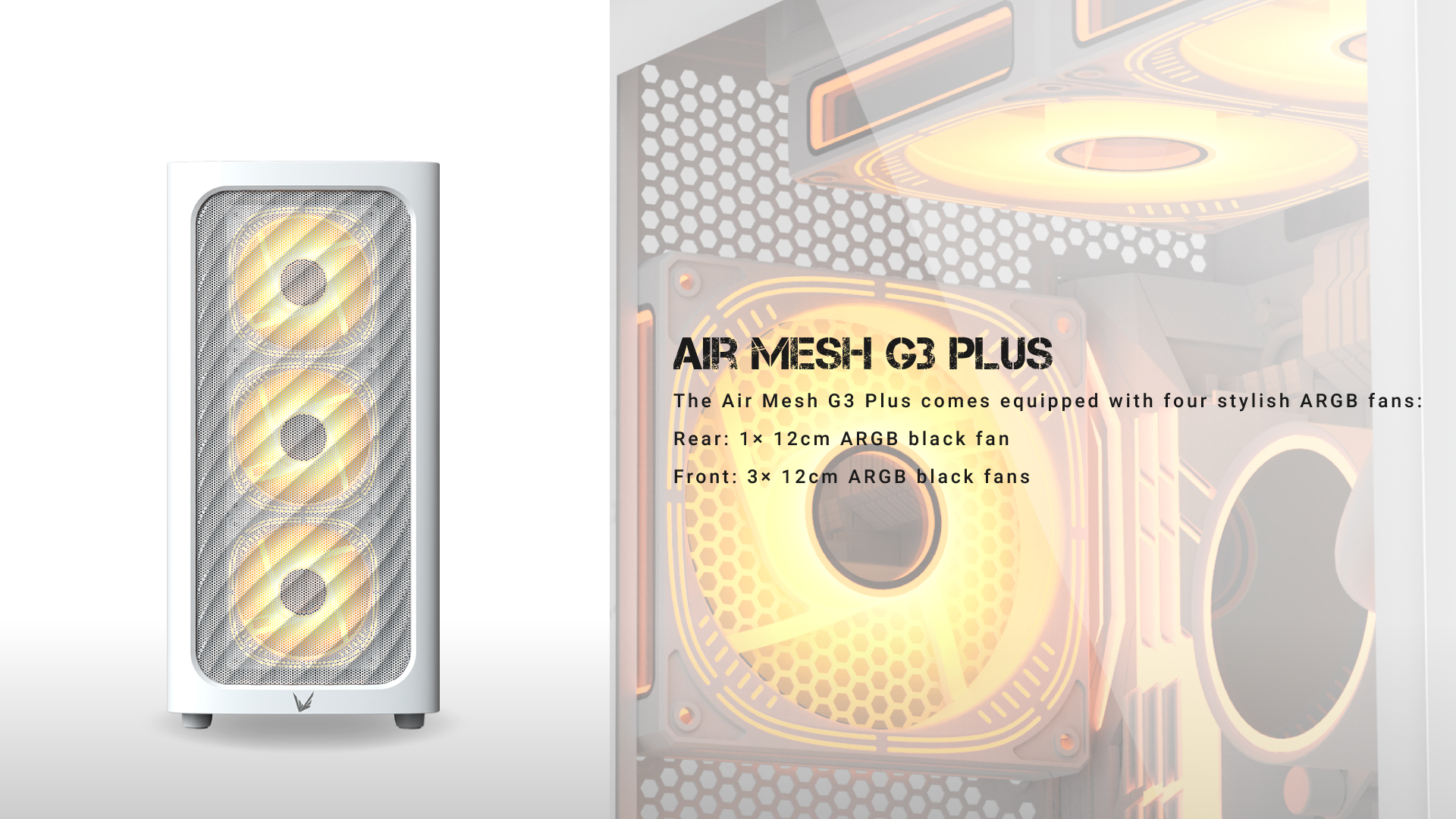

Rear: 1 x 120mm Max. (1 x 12 BK or WH Fan included)	(3 x 120mm ARGB BK or WH Fans included)
Bottom: 2 x 120mm Max.	Rear: 1 x 120mm Max.
Top: 2 x 120mm or 2 x 140mm Max.	(1 x 120mm ARGB BK or WH Fan included)
	Bottom: 2 x 120mm Max.
	Top: 2 x 120mm or 2 x 140mm Max.
Power Supply	ATX PSU
